FLECK 7000XTR Service Manual • 15

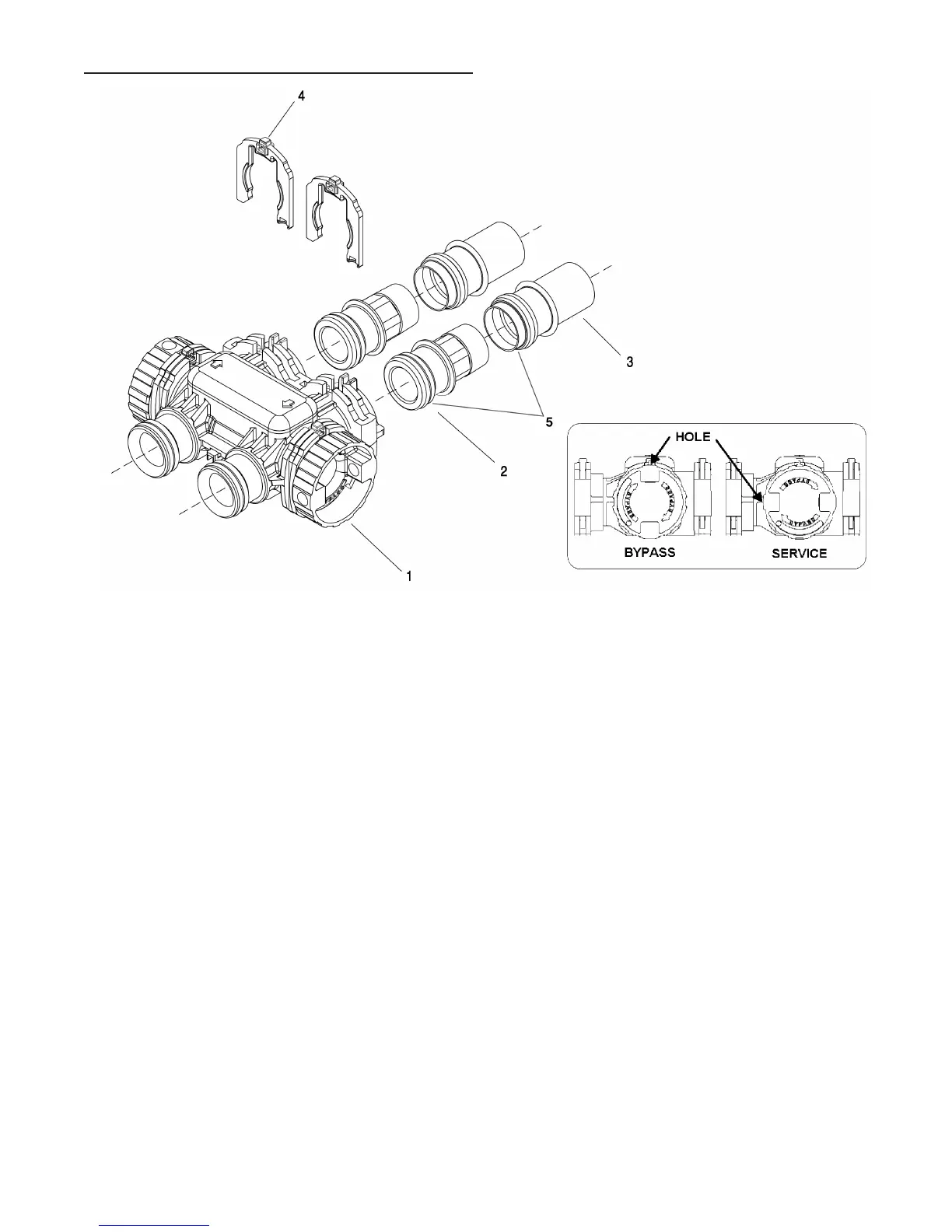

BYPASS ASSEMBLY
Item No. QTY Part No. Description
1 ..............1 ...... 40569-01 .........Bypass Assembly, 7000, with
Clip
2 ..............2 ...... 40563-01 .........Connector Assy, 1-inch NPT,
w/O-ring
....... 40563-11 .........Connector Assy, 1-inch BSP,
w/O-ring
....... 40565-01 .........Connector Assy, 1-1/4 inch
NPT w/O-ring
....... 40565-11 .........Connector Assy, 1-1/4 inch
BSP w/O-ring
3 ..............2 ...... 41242-01 .........Connector Assy, 1-inch &
1/4-inch Sweat, w/O-ring
....... 41243-01 .........Connector Assy, 1-1/4 inch &
1-1/2 inch Sweat, w/O-ring
4 ..............2 ...... 40576 ..............Clip, H, Plastic, 7000
5 ..............1 ...... 40951 ..............O-ring, -220
Not Shown
1 ...... 61462 ..............By-Pass Service Kit, 7000
(Includes all internal parts
for 7000 bypass assembly -
bypass body not included)
41118 REV A 41147 REV A
Important: To bypass the valve, turn bypass knob on both
sides of the valve to bypass position. When returning to
service, put the inlet into service before the outlet.
