FLECK 7000XTR Service Manual • 21

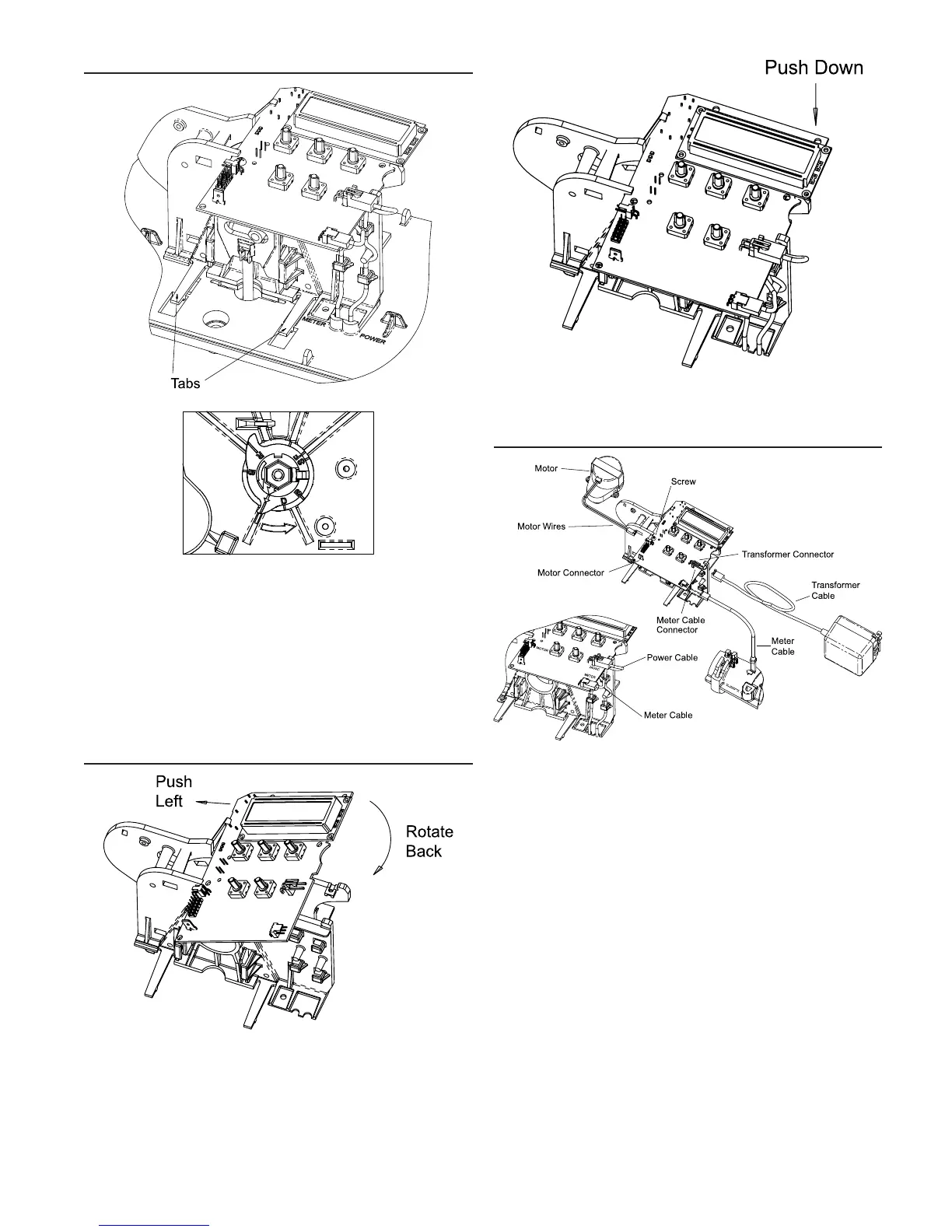

REMOVING THE GEAR BOX ASSEMBLY
42554 REV A
40988 REV A
1. Unplug the power source.
2. With a 3/8 inch nut driver, turn the cycle cam counter-
clockwise to the position shown in the illustration above.
3. Slightly pull the two tabs outward and push the gearbox
slightly upward to remove.
4. When returning the valve to service after powerhead
disassembly, manually step valve through regeneration
using the extra cycle button until the valve is in service.
INSERTING THE CIRCUIT BOARD
42554 REV A
1. To insert circuit board, align notches on left side of board
with flexible finger on power head. Apply pressure to left
while rotating the board back.
42554 REV A
2. When all the way down, snap the circuit board into place
under the notches on the right.
CONNECTING THE CIRCUIT BOARD
42554 REV A
After the circuit board is installed:
1. Connect the motor wires to the motor connector on the
circuit board.
2. Connect the transformer cable to the transformer
connector on the circuit board.
3. Connect the meter cable to the meter cable connector on
the circuit board.
4. Connect the meter cable sensor end to the opening on the
valve body.
5. Thread the meter cable and power cable along the path
shown in the above illustration.
6. Insert screw to secure circuit board.
