IntelliCenter Control System Indoor Control Panel Installation Guide IntelliCenter Control System Indoor Control Panel Installation Guide
5
Connecting the Indoor Control Panel Communication Cable
to the Personality Circuit Board
To connect the Indoor Control Panel communication cable to the Load Center Personality circuit
board:
1. Strip back the communication cable conductors ¼ in. Insert the wires into the screw terminals
(provided in the kit). Secure the wires with the screws. Make sure to match the color-coding of the
wires: Red = +15, Yellow = +DT, Green = -DT, and GND = Black.
2. Insert the communication cable terminal plug onto the COM-PORT (J15 or J16) connector.

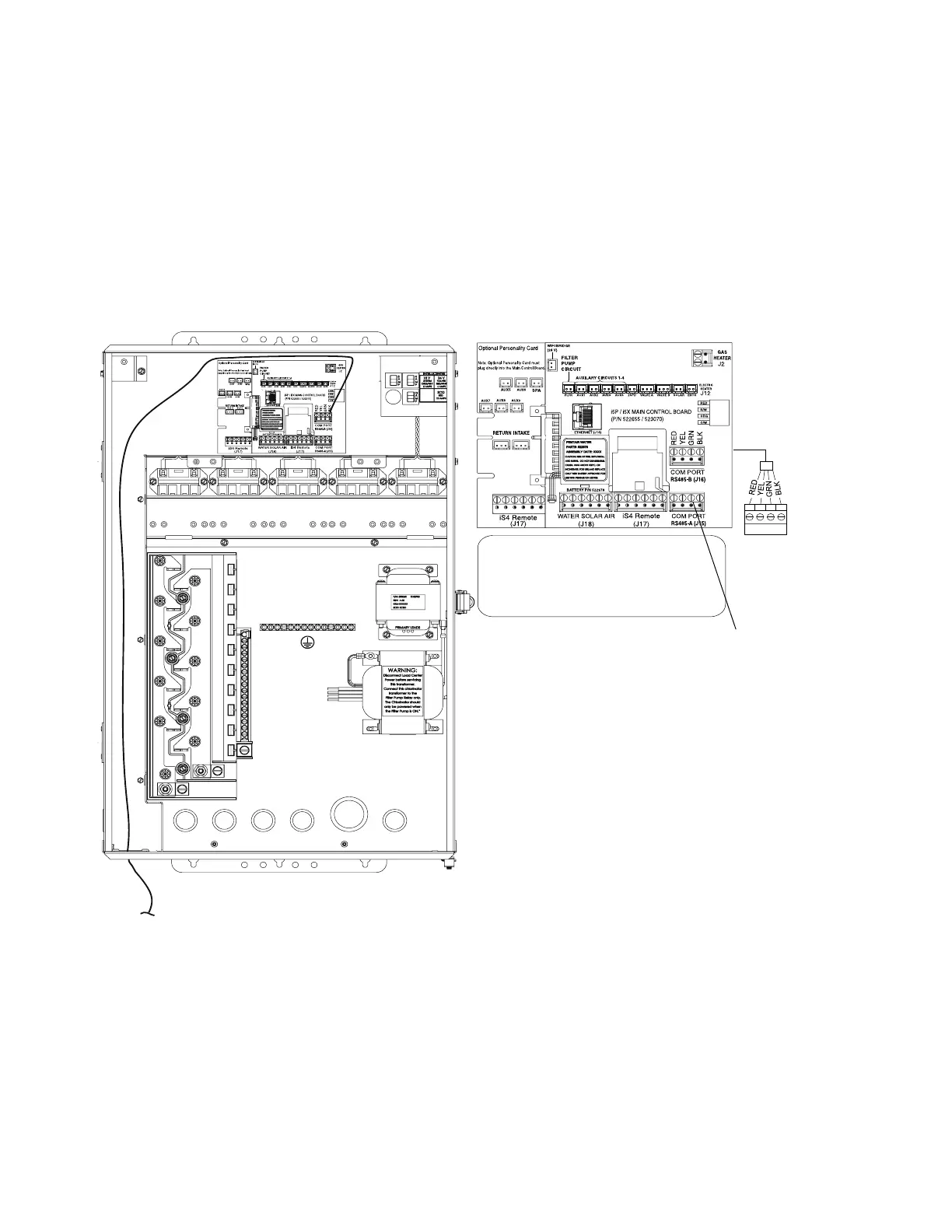

IntelliCenter™ Automation System Circuit Board
Connect
Indoor Control Panel
communication cable to
COM port
(J15 & J16)
COMMUNICATION PORTS A & B 14 VDC, 2.0A Max. Combined.
IntelliCenter™ Control System COM PORT:
Strip 1/4” insulation from the green and yellow wire conductors.
• Connect the Green wire to pin 2 on Connector J15 or J16.
• Connect the Yellow wire to pin 3 on Connector J15 or J16.
Note: Multiple wires may be inserted into a single terminal.
Optional: COM PORT expansion module (P/N 520818) with 3 extra
COM PORTS up to 2 modules can be installed.
Note: COM PORT A& B
14 VDC, 2.0A Max.
Combined
4 3 2 1
+15 +DT -DT GND
Communication cable to
Indoor Control Panel
Load Center

Pentair INTELLICENTER Specifications

General

Expandable	Yes
Energy Management	Yes
Touchscreen Display	Yes
Remote Access	Yes, via Mobile App
User Interface	Touchscreen
Remote Monitoring	Yes
Number of Circuits	Up to 40
Wireless Connectivity	Yes
Power Requirements	120V AC
Enclosure Rating	NEMA 3R
