Pentair INTELLICENTER Installation Guide

IntelliCenter Control System Indoor Control Panel Installation Guide IntelliCenter Control System Indoor Control Panel Installation Guide
3
Mounting the IntelliCenter
™
Automation System For Pool and Spa
Indoor Control Panel

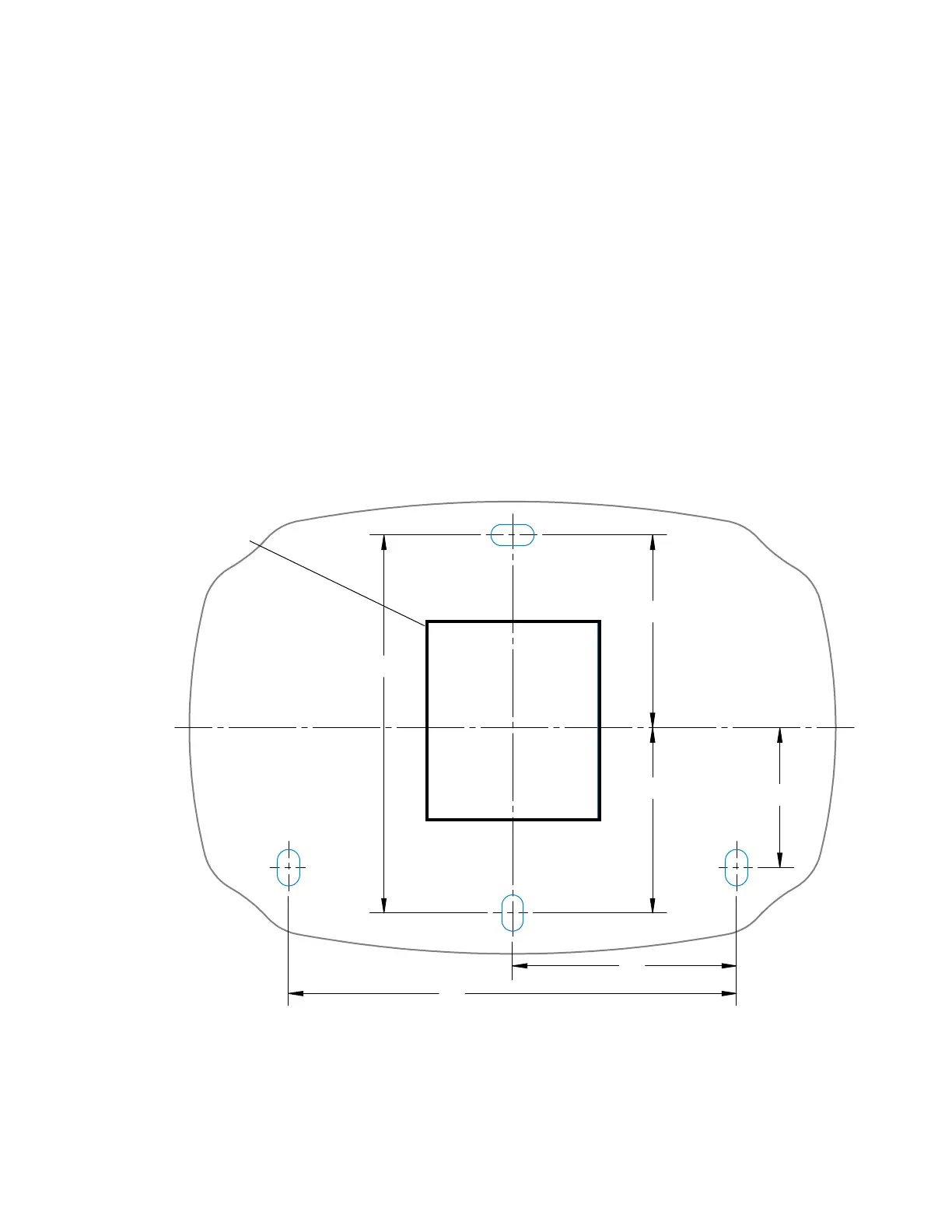

Indoor Control Panel (Backplate Template)
1 23/32"
1 21/32"
3 3/8"
1 1/4"
2"
4"
1 25/32"
1 17/32"
15/16"
3/4"
Cut a 1” square (or
round) hole in mounting
surface for
communication cable
Select a convenient wall location inside your the house or other weather-protected location for
mounting the control panel.
To mount and connect the RS-485 communication cable to the IntelliCenter Automation System
Indoor Control Panel:
1. Remove the Indoor Control Panel front cover from the back plate. Unsnap the bottom edge of the
front of the Indoor Control Panel cover from the back plate. See illustration on next page.
2. Use the cutout-backplate template (shown below), or the actual backplate against the mounting
surface so that it is oriented in an upright position. Use a pencil to mark the two (or four) screw
locations on the mounting surface for the mounting holes. Drill a minimum of two 3/16” diameter
holes into the mounting surface. If the screws are not being screwed into studs, drill 3/16” holes
and insert the wall anchors (provided) as required. Use either of the two vertical or horizontal
backplate mounting. For measurements, see backplate template shown below.
Continue to page 4.

Pentair INTELLICENTER Specifications

General

Expandable	Yes
Energy Management	Yes
Touchscreen Display	Yes
Remote Access	Yes, via Mobile App
User Interface	Touchscreen
Remote Monitoring	Yes
Number of Circuits	Up to 40
Wireless Connectivity	Yes
Power Requirements	120V AC
Enclosure Rating	NEMA 3R
