IntelliCenter Control System Indoor Control Panel Installation Guide
Configuring the Indoor Control Panel
The following information describes how to configure the Indoor Control Panel from the Indoor
Control Panel Home screen. For more detailed information refer to the IntelliCenter™ Automation
System User’s Guide (P/N 522561) and the IntelliCenter Automation System Installation Guide (P/N
522989.)
To configure the IntelliCenter System Indoor Control Panel:
1. Power to the IntelliCenter System Indoor Control Panel (Home screen displayed) is applied from the
IntelliCenter System Load Center Outdoor Control Panel. Verify that the IntelliCenter System Load
Center is powered on. If not, switch on the main circuit breakers to apply power to the Load Center.

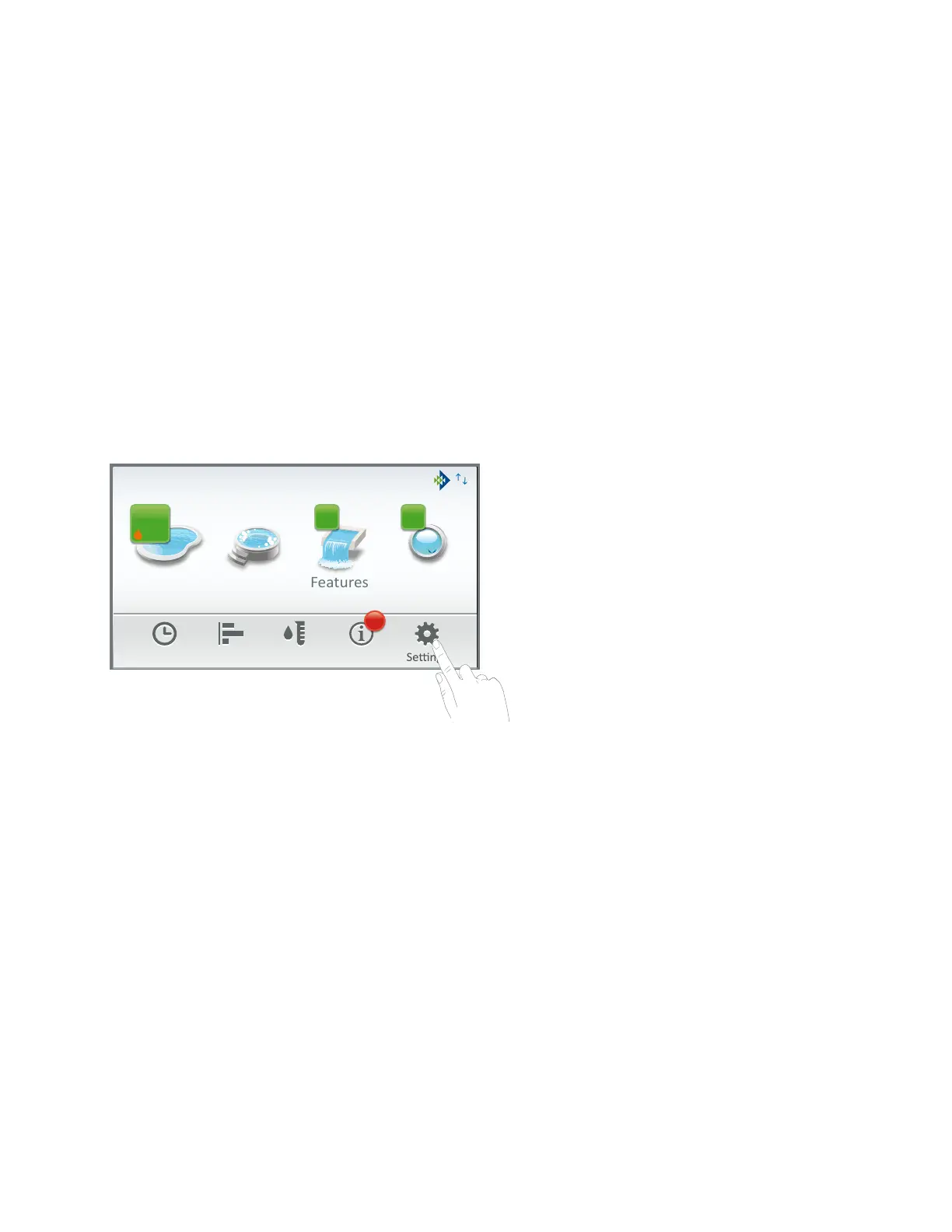

2. From the Home screen on the Indoor Control Panel, tap Settings > Advanced System
Configuration > Installation Setup > Body Configuration.
3. Tap Indoor Control Panel to enable the Indoor Control Panel. Follow the screen prompts to
configure the Indoor Control Panel. When finished save the system configuration. The Indoor Control
Panel is now ready for operations.
Pool Spa Features Lights
Air Temp 77°F
Schedule Usage Chemistry Status
3
3 3
84°
78°
°
08:00 am
Freeze Protect Active

Pentair INTELLICENTER Specifications

General

Expandable	Yes
Energy Management	Yes
Touchscreen Display	Yes
Remote Access	Yes, via Mobile App
User Interface	Touchscreen
Remote Monitoring	Yes
Number of Circuits	Up to 40
Wireless Connectivity	Yes
Power Requirements	120V AC
Enclosure Rating	NEMA 3R
