OPERATING THE PUMP 9/20
SET SPEEDS IN MANUAL MODE SPEEDS 14 ONLY
1. Press menu.
2. Use up or down arrows to scroll to “Speeds 1-8”, then press select.
3. Use up or down arrows to find the speed (1-4) you wish to program, then press select.
4. Speeds 1-2 default setting is manual. Speeds 3-4 default setting is egg timer. To set a
speed in manual mode, press the down arrow (“Set speed” will display) and press select
to change. Use the up or down arrow to adjust speed.
5. Press save to save the new speed setting.
SET SPEEDS IN EGGTIMER MODE SPEEDS 14 ONLY
1. Press menu.
2. Use up or down arrows to scroll to “Speed 1-8”, then press select.
3. Use up or down arrows to find the speed (1-4) you wish to program, then press select.
4. Use the up or down arrows to scroll to “Egg-Timer”, then press select.
5. To set a speed in egg-timer mode, press the down arrow (“Set speed” will display) and
press select to change. Use the up or down arrow to adjust speed.
6. Press save to save the new speed setting.
7. Now press the down arrow (“Set time” will display) and press select to change. Use the up
or down arrows to adjust the time.
8. Press save to save the new time setting.
12:15p
Manual
12:15p
Egg Timer
Time
Set Speed

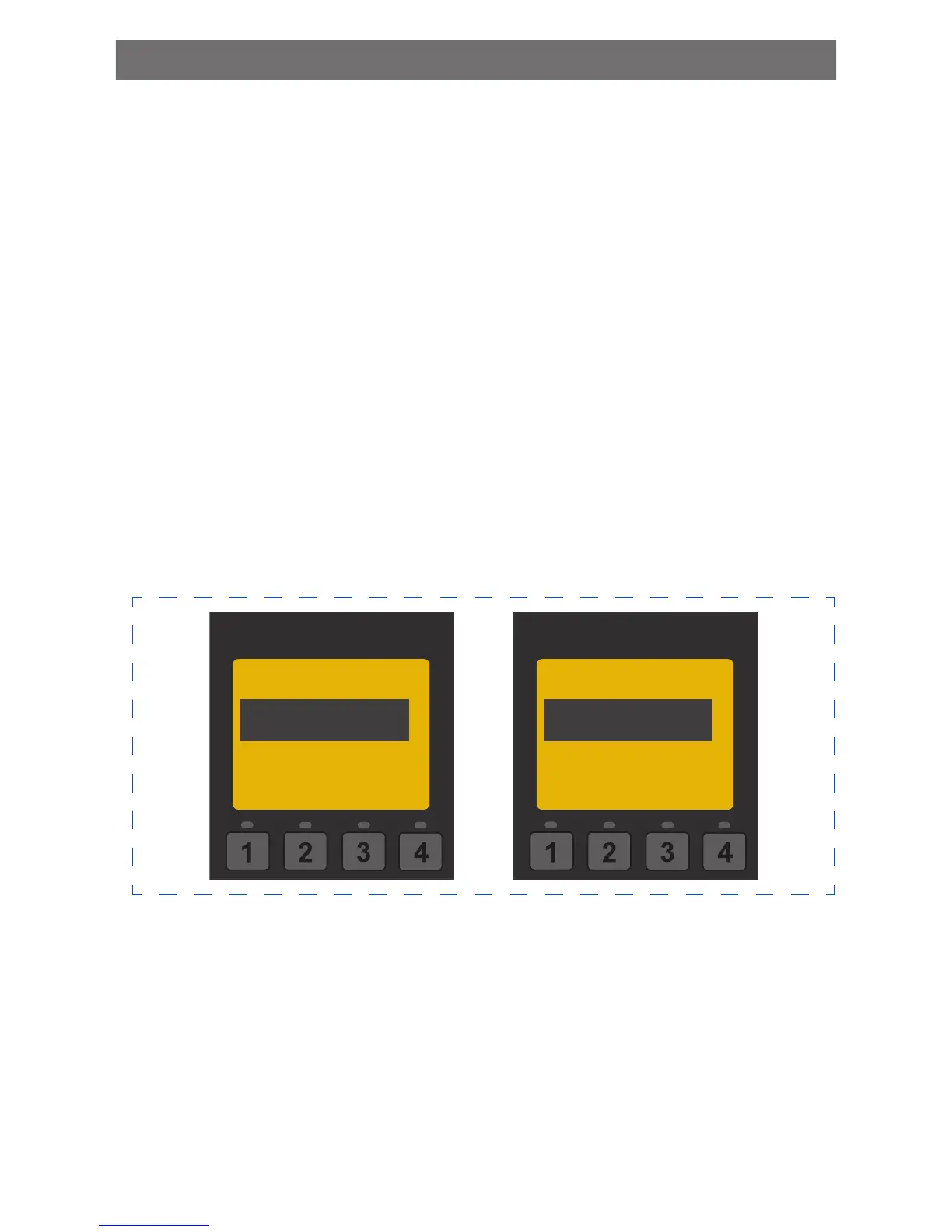

Manual Mode Menu Screen Egg Timer Menu Screen
20

Pentair INTELLIFLO VSF Specifications

General

Pump Type	Variable Speed
Horsepower	3 HP
Voltage	230V
Control	Digital
Flow Rate	Up to 140 GPM
Energy Efficiency	ENERGY STAR Certified
Warranty	3 Years
Motor Type	Permanent Magnet Motor
Speed Settings	Variable Speed
Communication Protocol	RS-485
Wet End Material	Thermoplastic
Port Size	2 inches
