Pentair INTELLIFLO VSF User Manual

OPERATING THE PUMP 20/20
CONNECTING THE INTELLIFLO PUMP TO AN INTELLIPOOL SYSTEM
The IntelliFlo® pump can be controlled by an IntelliPool system via the RS-485 communication
cable.
WARNING - Switch OFF main system power to the IntelliPool Control Center before
making connections.
!

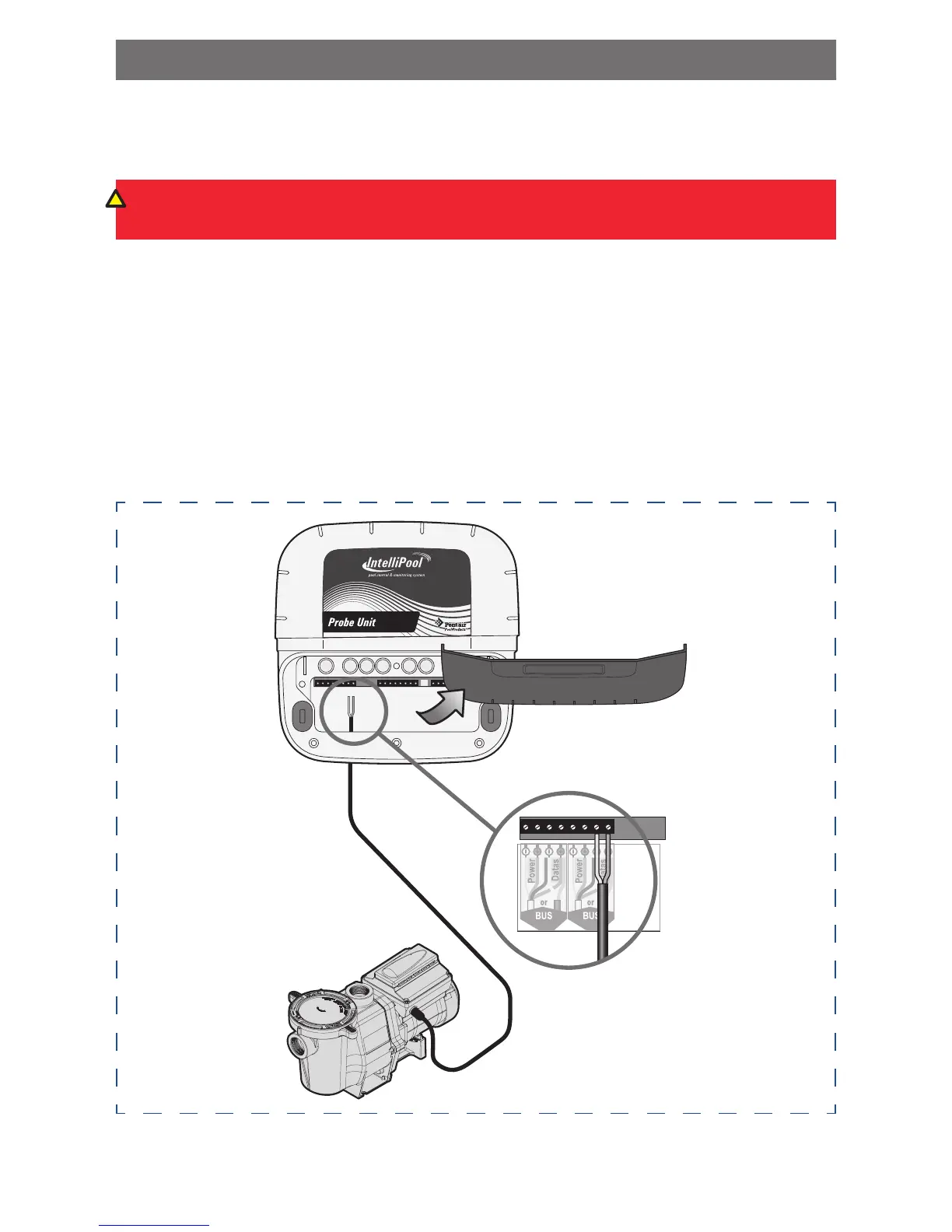

To connect the IntelliFlo® pump RS-485 communication cable to the IntelliPool circuit
board:
1. Open the front of the IntelliPool control center.
2. Remove the red protective panel
3. Route the two conductor cable up through the control center grommet opening located on
the right side, and up through the bus connector to the motherboard.
4. Strip back the cable conductors 6 mm (1/4”). Insert the wires into the screw terminals.
Secure the wires with the screws. Be sure to match the color coding of the wires; YELLOW
to COM (–) and GREEN to COM (+).
5. Close the control center.
12/07/10 15:23:48
Temp. eau: +24.0°C
pH:7,3 RedOx:629mV
Cond:5571uS 3.51g/l
12345678
31

Pentair INTELLIFLO VSF Specifications

General

Pump Type	Variable Speed
Horsepower	3 HP
Voltage	230V
Control	Digital
Flow Rate	Up to 140 GPM
Energy Efficiency	ENERGY STAR Certified
Warranty	3 Years
Motor Type	Permanent Magnet Motor
Speed Settings	Variable Speed
Communication Protocol	RS-485
Wet End Material	Thermoplastic
Port Size	2 inches
