PUMP OVERVIEW 3/3

DRIVE ASSEMBLY AND CONTROL PANEL

The IntelliFlo

drive assembly consists of an operator control panel and the system electronics

that drive the motor. The drive microprocessor controls the motor by changing the frequency

of the current it receives, together with changing the voltage to control the rotational speed.

MOTOR FEATURES

• Permanent Magnet Synchronous Motor (PMSM)

• High efﬁciency (3450 RPM 92% and 1000 RPM 90%)

• Superior speed control

• Operates at lower temperatures due to high efﬁciency

• Same technology as deployed in hybrid electric vehicles

• Designed to withstand outdoor environment

• Totally enclosed fan cooled

• 10-Pole

• Low noise

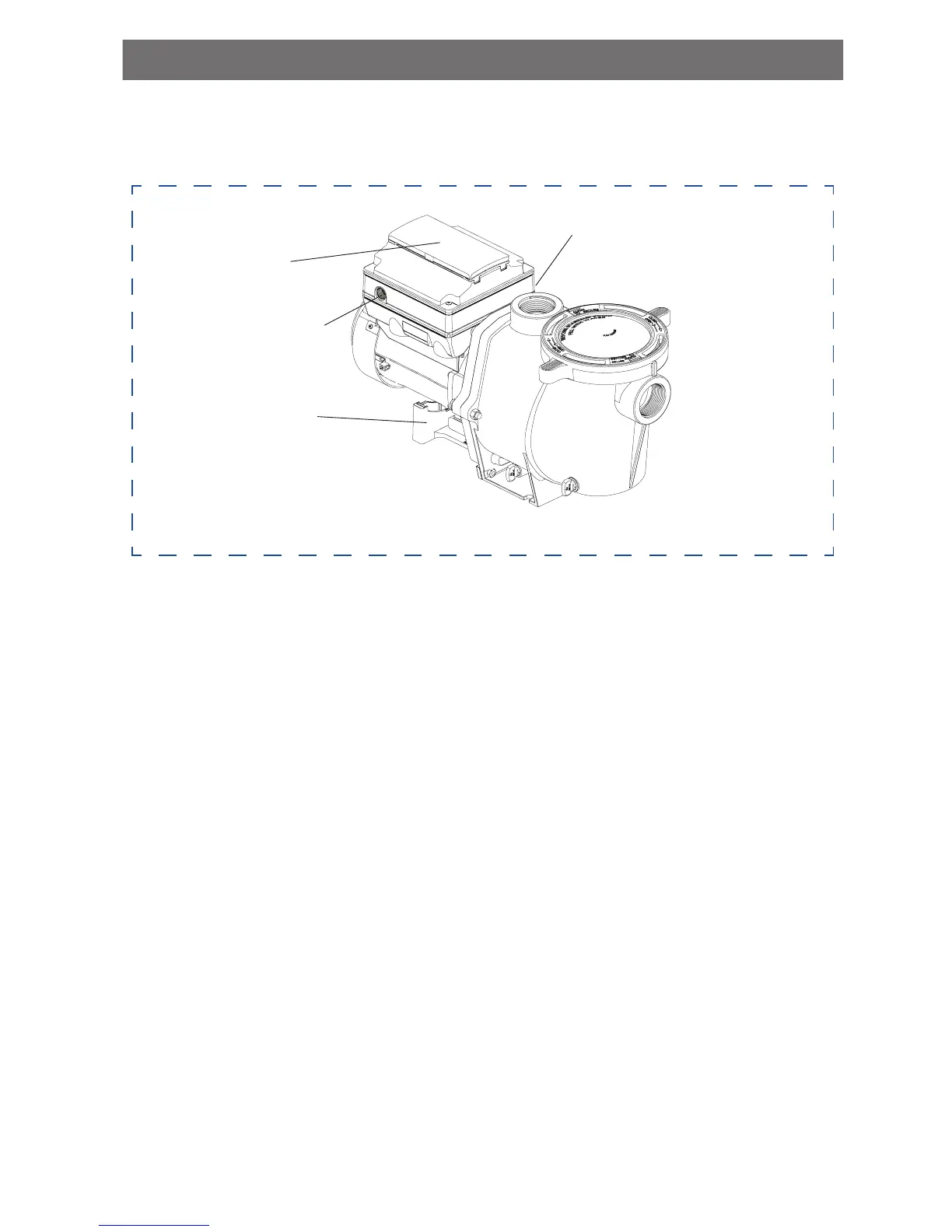

IntelliFlo

VSD2 Drive Assembly

Motor Stand

Operator Control Panel,

Buttons and LED

Strain Relief Port

for Incoming AC Power

Communication port for connection to

IntelliPool control system or IntelliComm

communication center via two-wire RS-

485 cable.
