Pentair SCREENLOGIC INTERFACE User Manual

SCREENLOGIC
®
INTERFACE Wireless Connection Kit Installation Guide
1
Overview
The ScreenLogic
®
Interface Wireless Connection kit consists of two
wireless 2.4 GHz 900 Mhz transceivers which provides a wireless
connection between the ScreenLogic Interface Protocol adapter and the
IntelliTouch
®
or EasyTouch
®
Control System Load Center located at the
equipment pad. This wireless connection eliminates the existing hard
wire connection from inside your home to the equipment pad.
ScreenLogic Interface Wireless Connection Kit Contents
The following items are included in the Wireless Connection kit.
• One ScreenLogic Interface indoor wireless transceiver with AC
power adapter and one foot connection cable with attached plugs.
• One ScreenLogic Interface outdoor wireless transceiver with 10
foot cable, provided in kit with enclosure and mounting hardware.
• ScreenLogic Interface Wireless Connection Installation Guide
(this manual)

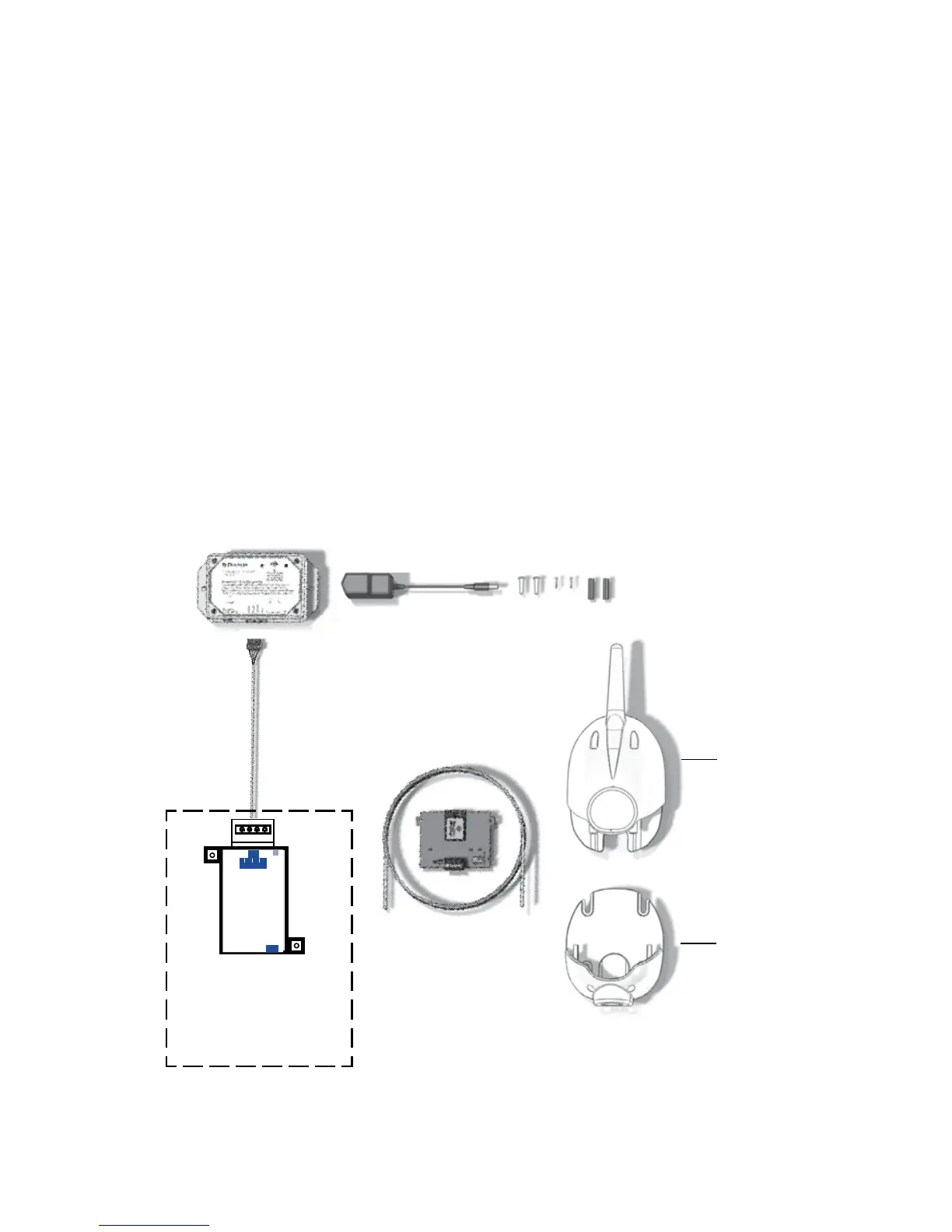

Kit Contents
Transceiver
Enclosure
AC transformer
Indoor transceiver
Outdoor transceiver
ScreenLogic
Interface Protocol
Adapter (purchased
separately)
Transceiver
Enclosure
Mounting hardware
Protocol Adapter
LAN
LABEL P/N 520535
RESET
SERIAL CONNECTION
Black Green Yellow Red
P/N 520489

Pentair SCREENLOGIC INTERFACE Specifications

General

Web Interface	Yes
Power Supply	12V DC
Compatibility	Pentair automation systems
Connectivity	Wireless or wired via Ethernet
Mobile App	Yes
Remote Access	Yes
User Interface	Mobile app
Product Type	Pool and spa control interface
Email Alerts	Yes
Functionality	Remote control and monitoring of pool/spa functions
Operating Temperature	32°F to 122°F (0°C to 50°C)
