Pentair SCREENLOGIC INTERFACE User Manual

SCREENLOGIC
®
INTERFACE Wireless Connection Kit Installation Guide
WARNING Switch OFF the main system power to the Load Center
before making any connections.
1. Unlatch the enclosure door spring latche(s), and open the door.

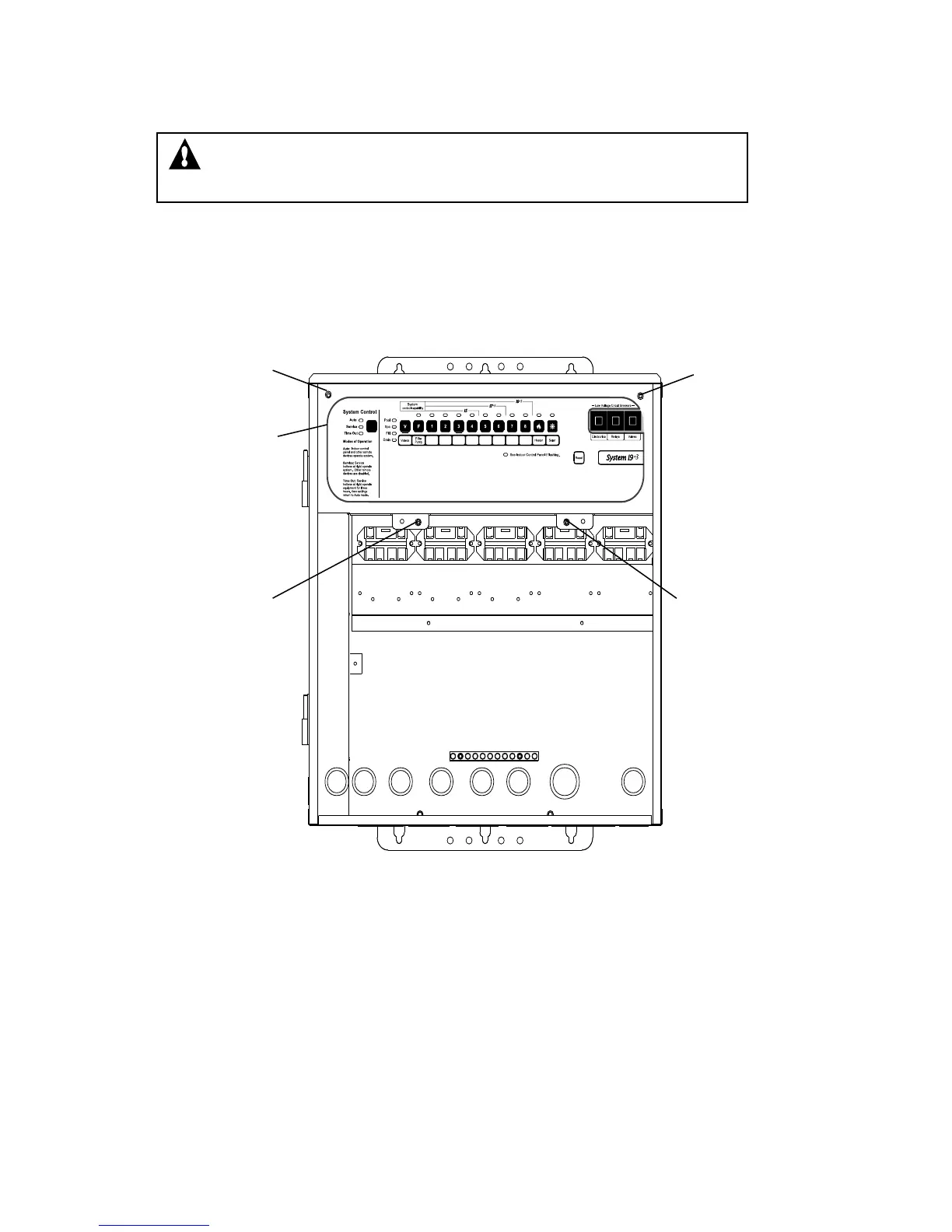

2. Remove the two retaining screws securing the high voltage cover-
panel, and remove it from the enclosure.
3. Loosen the two access screws securing the control panel.
5
Panel retaining
screw
(Cover-panel
not shown)
Access
screw
Retaining
screw
Access
screw
Control panel
Connect the Transceiver connection cable to the COM Port on Control
System Circuit Board
IntelliTouch
®
or EasyTouch
®
Load Center
4. Lower down the hinged control panel to access the circuit board.

Pentair SCREENLOGIC INTERFACE Specifications

General

Web Interface	Yes
Power Supply	12V DC
Compatibility	Pentair automation systems
Connectivity	Wireless or wired via Ethernet
Mobile App	Yes
Remote Access	Yes
User Interface	Mobile app
Product Type	Pool and spa control interface
Email Alerts	Yes
Functionality	Remote control and monitoring of pool/spa functions
Operating Temperature	32°F to 122°F (0°C to 50°C)
