SCREENLOGIC
®
INTERFACE Wireless Connection Kit Installation Guide
8

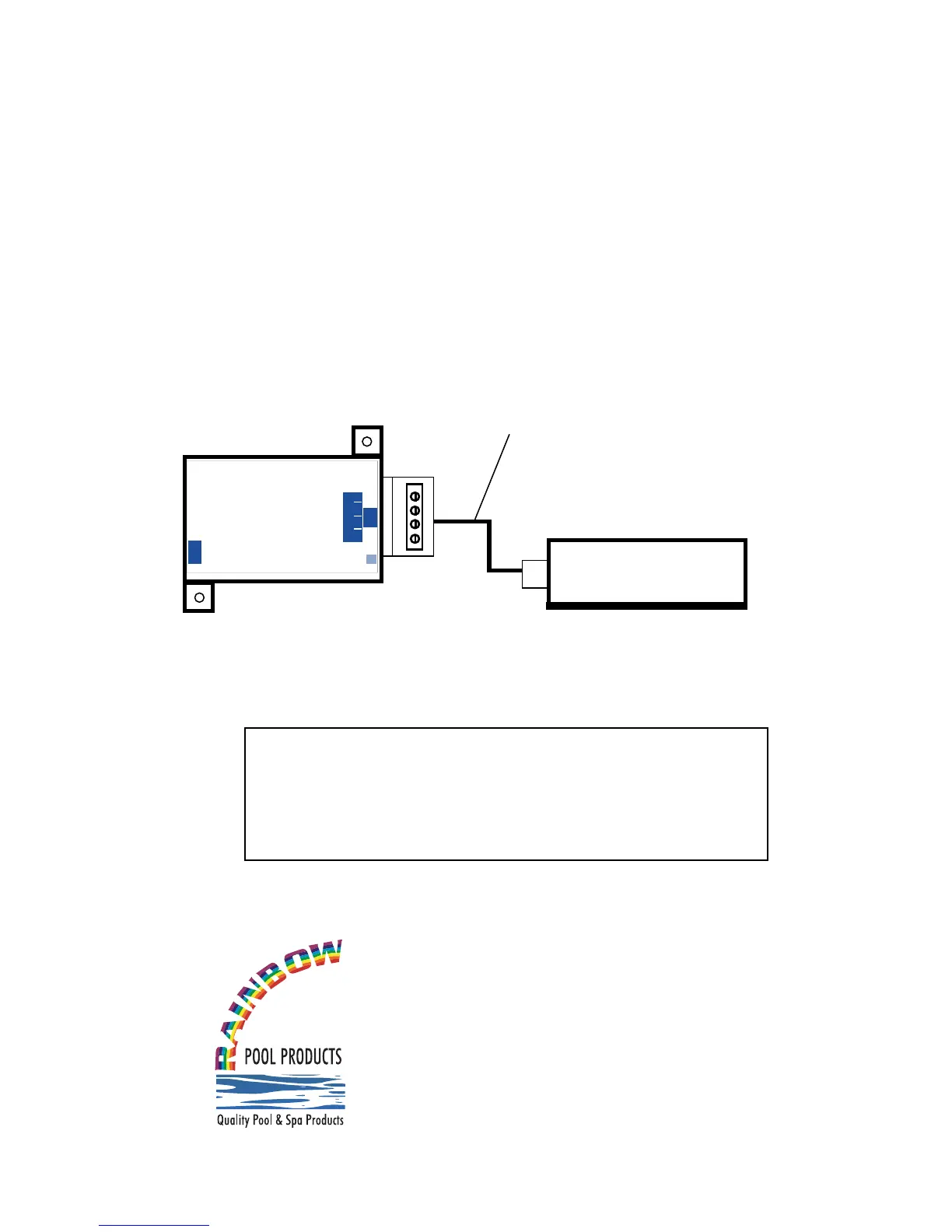

ScreenLogic Interface
Protocol Adapter
1 ft. connection cable
(provide in kit)
ScreenLogic Interface Indoor
Wireless Transceiver
Transceiver <----------> Indoor wireless transceiver
RED <----------> RED
YELLOW <----------> YELLOW
GREEN <----------> GREEN
BLACK <----------> BLACK
Wiring Configuration
Protocol Adapter
LAN
LABEL P/N 520535
RESET
SERIAL CONNECTION Black Green Yellow Red
P/N 520489
Step 2:
Connect the ScreenLogic
®
Interface Indoor Wireless Transceiver to the
ScreenLogic Interface Protocol Adapter
To connect the ScreenLogic Interface indoor wireless transceiver to the
ScreenLogic Interface Protocol adapter:
1. Using the provided connection cable, connect one end of the
cable to the ScreenLogic Interface Protocol adapter and the other
end to the ScreenLogic Interface indoor wireless transceiver. The
cable plugs are keyed for easy connection.
2. Plug the ScreenLogic Interface Wireless Connection transceiver
AC adapter wall-plug into an AC grounded electrical outlet.

Pentair SCREENLOGIC INTERFACE Specifications

General

Web Interface	Yes
Power Supply	12V DC
Compatibility	Pentair automation systems
Connectivity	Wireless or wired via Ethernet
Mobile App	Yes
Remote Access	Yes
User Interface	Mobile app
Product Type	Pool and spa control interface
Email Alerts	Yes
Functionality	Remote control and monitoring of pool/spa functions
Operating Temperature	32°F to 122°F (0°C to 50°C)
