Pentair SCREENLOGIC INTERFACE User Manual

SCREENLOGIC
®
INTERFACE Wireless Connection Kit Installation Guide

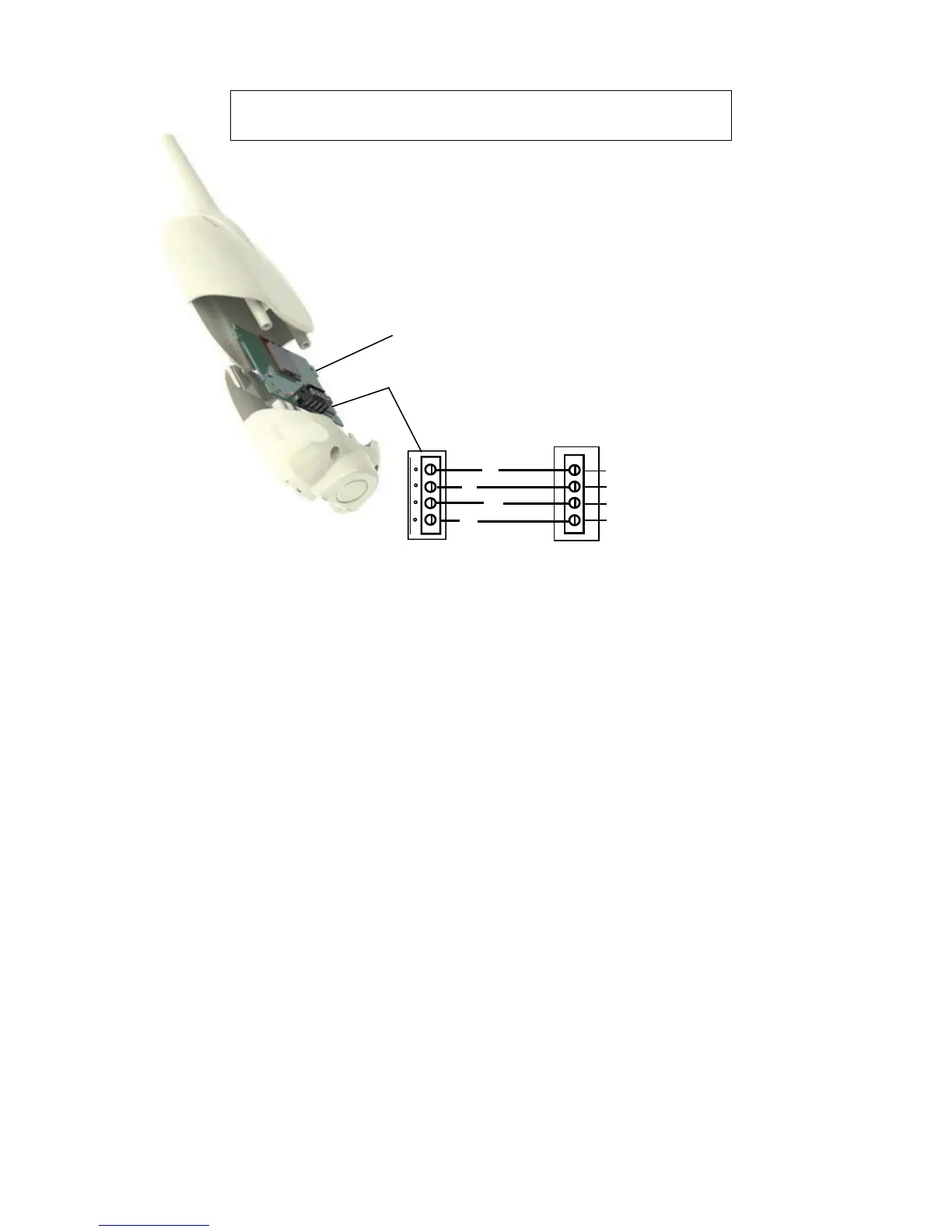

Transceiver Connector
Transceiver Circuit board
7
7. After the connection has been completed, close the control panel
into its original position and secure it with the two access screws.
8. Install the front panel and secure it with the two retaining screws.
9. Close the Load Center front door. Fasten the spring latche(s).
10. Switch the power on to the IntelliTouch
®
or EasyTouch
®
Control
System Load Center.
11. Proceed to the “Connect the ScreenLogic Interface Indoor
Wireless Transceiver to the ScreenLogic Interface Protocol
Adapter” on page 8.
Note: Install the ScreenLogic
®
Interface outdoor
wireless transceiver within 10 feet from Load Center
COM PORT screw terminal
connector on IntelliTouch
®
or EasyTouch
®
Control
System circuit board
BLK
RED
YEL
GRN
BLK (GND - PIN 1)
GRN (- DT - PIN 2)
YEL (+ DT - PIN 3)
RED (15 V - PIN 4)

Pentair SCREENLOGIC INTERFACE Specifications

General

Web Interface	Yes
Power Supply	12V DC
Compatibility	Pentair automation systems
Connectivity	Wireless or wired via Ethernet
Mobile App	Yes
Remote Access	Yes
User Interface	Mobile app
Product Type	Pool and spa control interface
Email Alerts	Yes
Functionality	Remote control and monitoring of pool/spa functions
Operating Temperature	32°F to 122°F (0°C to 50°C)
