SCREENLOGIC
®
INTERFACE Wireless Connection Kit Installation Guide
4

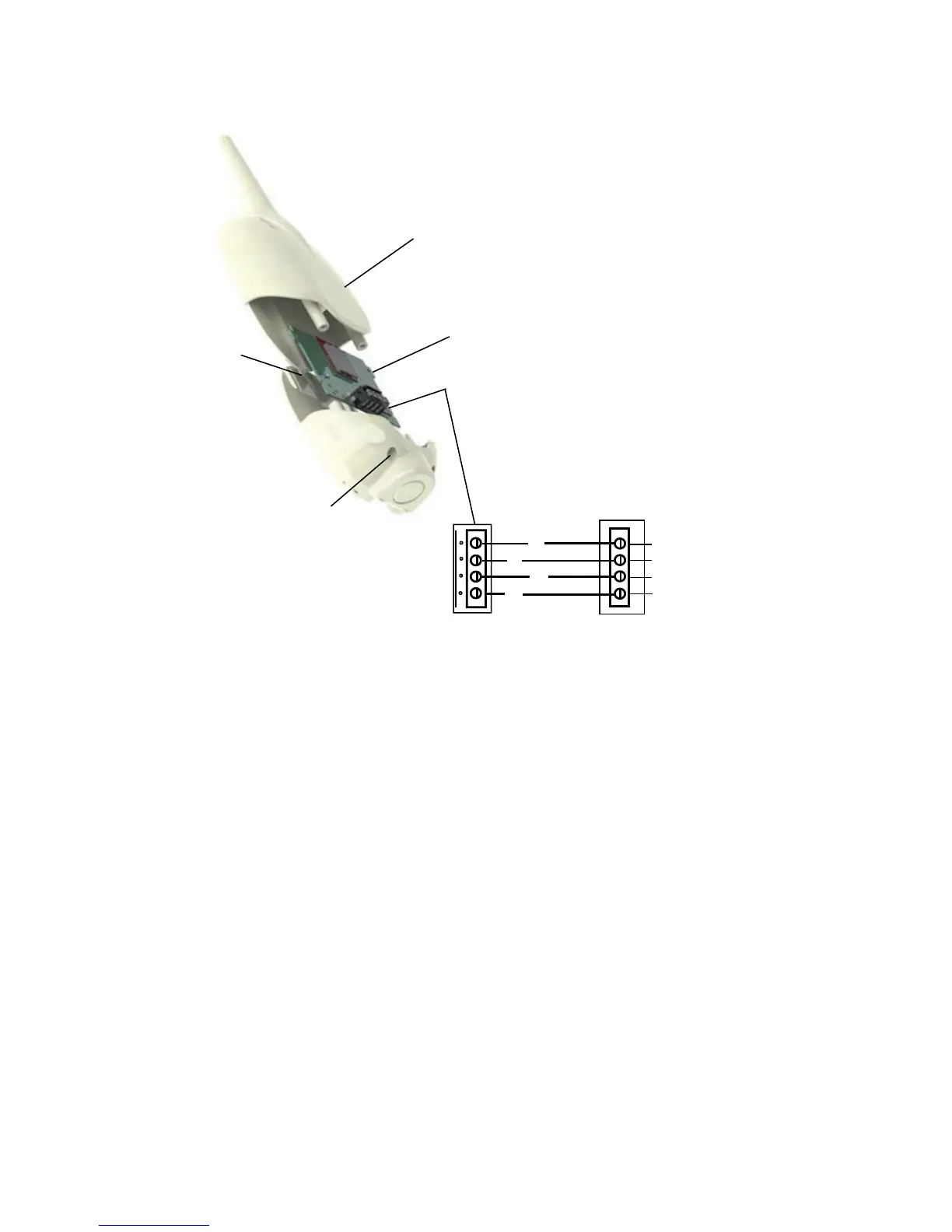

Transceiver Module Wiring
Case
Transceiver Connector
Transceiver case
retaining screws
(x2)
Back plate
mounting
point (4x)
Transceiver Circuit board
COM PORT screw terminal
connector on IntelliTouch
®
or EasyTouch
®
Control
System circuit board
BLK
RED
YEL
GRN
BLK (GND - PIN 1)
GRN (- DT - PIN 2)
YEL (+ DT - PIN 3)
RED (15 V - PIN 4)
