Pentair SCREENLOGIC INTERFACE User Manual

SCREENLOGIC
®
INTERFACE Wireless Connection Kit Installation Guide
Waterfall 2
Water
f
all 2
1
2 34
WAN
RJ11
RJ45
INTERNET
1
23 4
WAN
- LAN -
Existing wired or wireless router (mandatory)
RJ11 for DSL
Coax for Cable
In-wall Touch Screen
Wireless transceiver connected to Personality board (COM port) via 10’ cable
Protocol Adapter
ScreenLogic
®
Interface Wireless router
IntelliTouch
®
or
EasyTouch
®
Indoor Control Panel (*)
Existing PC
Ethernet cable (RJ45 - CAT 5)
Ethernet cable
(RJ45 - CAT 5)
DSL or
Cable Modem
(RJ45)
Cable distance limits: - Ethernet cable distance limit = 300 feet - Four-wire cable distance limit = 1500 feet Note: (*) Optional wiring for existing Indoor Control Panel. Tap into the Indoor Control Panel connector or pig tail off the four-wire cable connected to the Personality board.
Transceiver connected to ScreenLogic Interface Protocol adapter
Load Center (Located outside at equipment pad)
2
4-wire one foot cable
AC power adapter
ScreenLogic
®

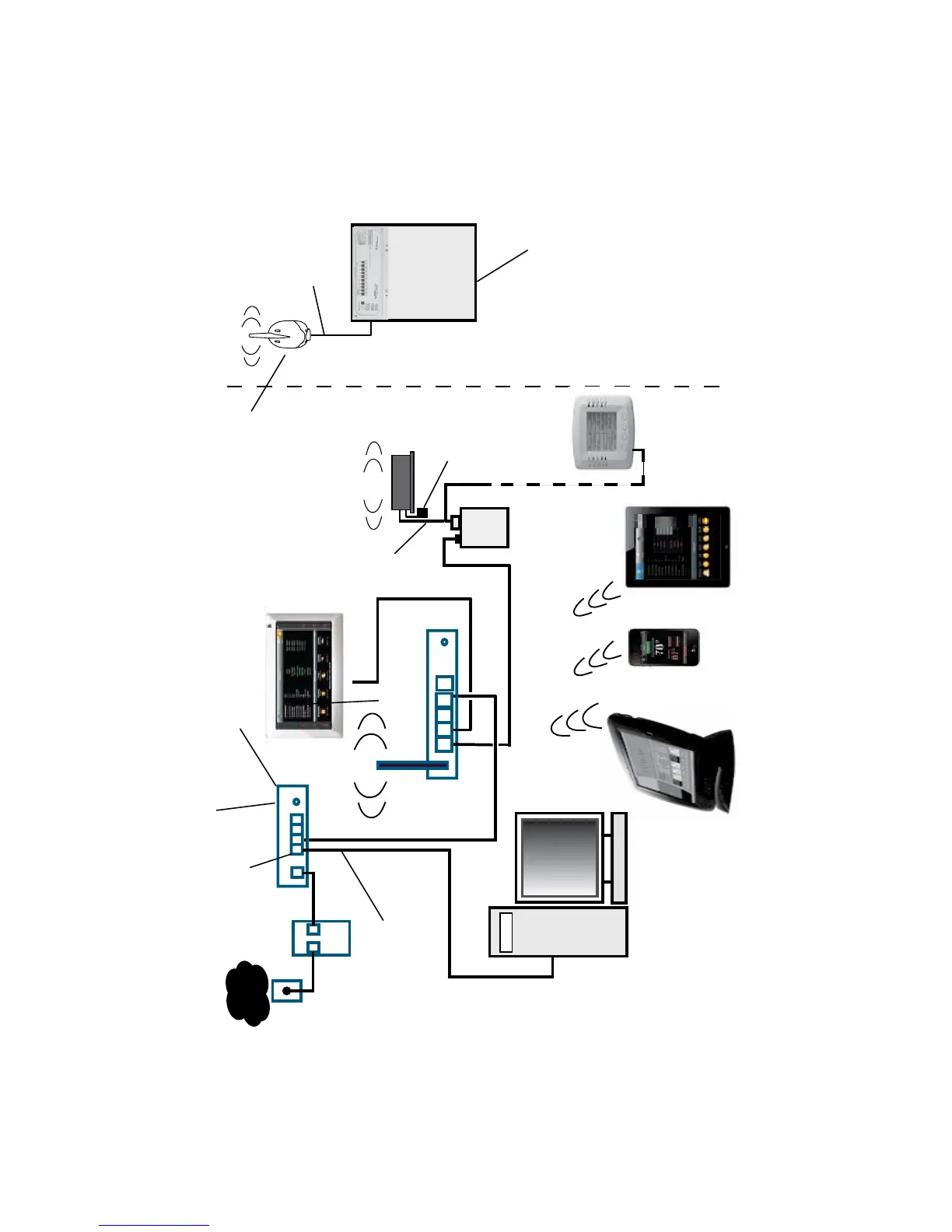

Interface Connection Diagram

Pentair SCREENLOGIC INTERFACE Specifications

General

Web Interface	Yes
Power Supply	12V DC
Compatibility	Pentair automation systems
Connectivity	Wireless or wired via Ethernet
Mobile App	Yes
Remote Access	Yes
User Interface	Mobile app
Product Type	Pool and spa control interface
Email Alerts	Yes
Functionality	Remote control and monitoring of pool/spa functions
Operating Temperature	32°F to 122°F (0°C to 50°C)
