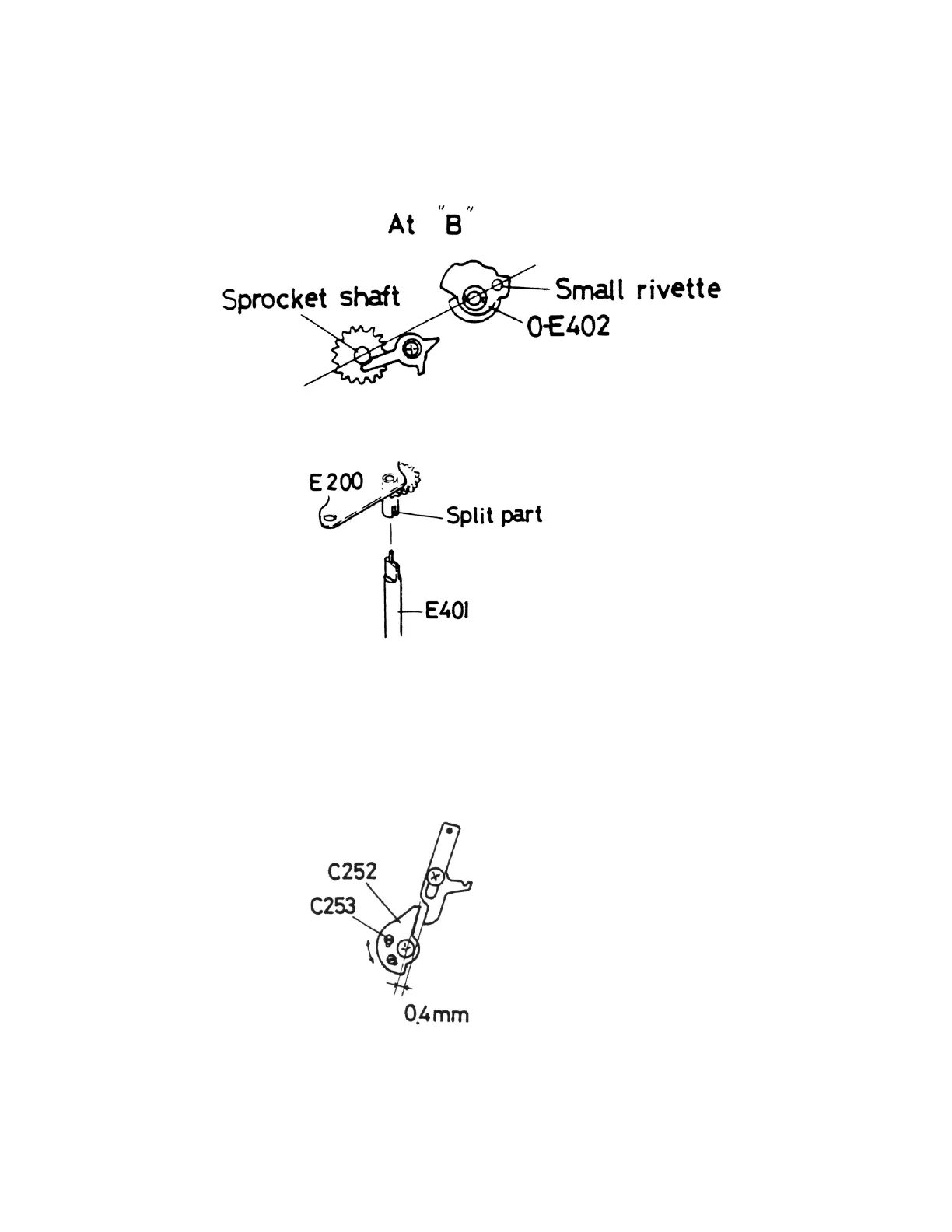

30. Slow speed cam assembly (0-E402)
a) Shutter speed at B
b) Small rivet of (0-E402) should align straight with the center of (E401) and sprocket shaft
as shown in Figure, and fasten Nut (E406) catching (E401) with pliers.
Fasten set screws also.
* When (E406) is fastened without catching (E401) with pliers, jointing split part underneath (E200)
spreads with revolving power of (E401), and slower shutter speed will be affected.
31.Governor (G100) — CNM 1.7 x 2.0, CNM 1.4 x 2.0
a) Shutter speed at 1/125
b) Install (G100) without bending small levers (such as angle lever etc).
32. Governor actuator plate (C252)
a) Shutter speed at B
b) Cock the shutter
c) (C252) — (C253) x 2 as shown in Figure
33. Shutter curtain light seal (A17)— CNS 1.7 x 2.5 x 2
