36. Terminal contact assembly (0-J611)
Soldering lead wires 8 pcs.
37. Shutter speed adjustment
a) Curtain speed 12.2 — 12.3ms
Same way with SP camera.
b) High speed adjustment 1/1000 — 1/60ms
Same way with SP camera
c) Slow speed adjustment 1/30 — l sec
1 Loosen screw
2 Adjust with eccentric screw
3 Fasten screw
4 Apply red lacquer on screw

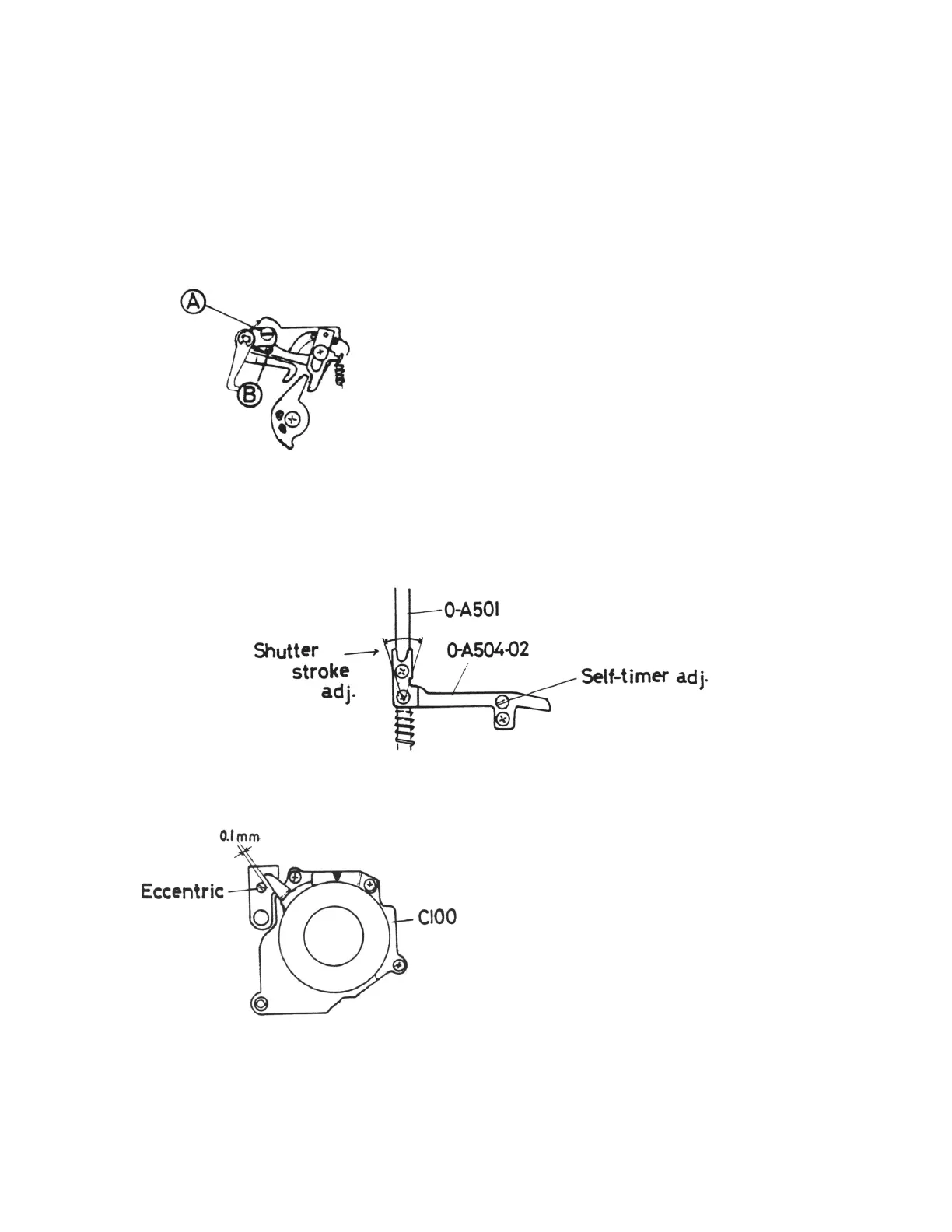

38. Shutter stroke — Shutter dial at B
a) Install Top cover assembly (A300) and Winding lever assembly (C300) temporarily.
b) Depressing shutter button gradually, shutter starts working at 2.1 ± 0.2mm from origina1
position.
c) Self-timer exposure time adjustment at B.(Around 1000ms)
39. Main SW keep adjustment
Main SW stroke
— 0.6
±
0.2mm
40. Tv indication
a) Shutter speed at 1/1000
b) Positioning adjustment of Supporter plate assembly (0-M53).
To Next Page
