LB Remote I/O System
Product Specifications
2.5.2 Design and Dimensions
Both single-width and dual-width modules are available. Com units and power supplies are
always dual-width. I/O modules are single-width or dual-width depending on the model.
Both the I/O modules and the com units and power supplies are equipped with LEDs on the
front that display the device status.
The I/O modules have connections on the front to which the relevant field devices are
connected.

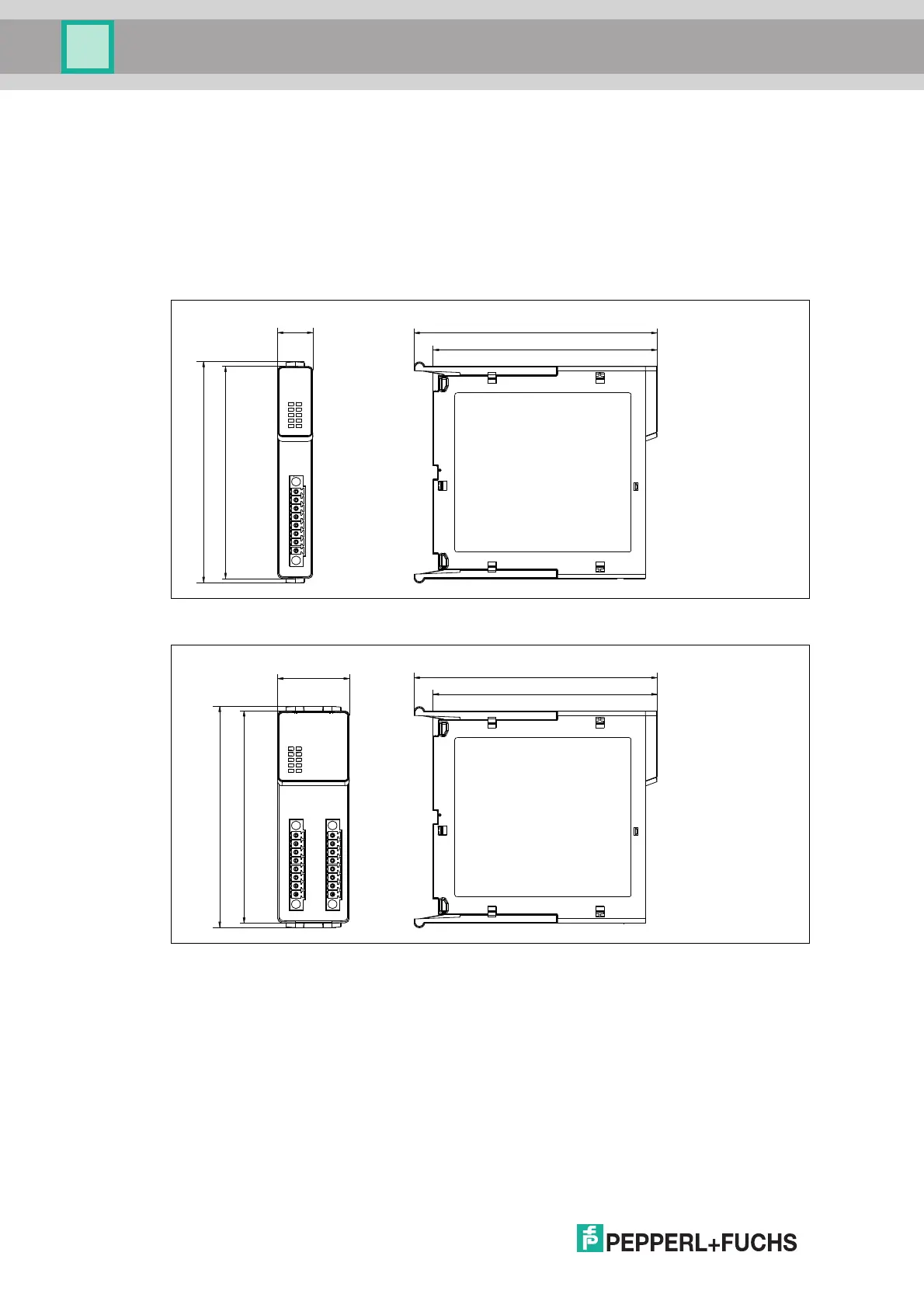

Figure 2.11 Single-width I/O module dimensions
Figure 2.12 Dual-width I/O module dimensions
16
96
110,2
100
102
110,232,5
96
102
100

Pepperl+Fuchs LB Series Specifications

General

Mounting	DIN Rail
Zone	Zone 1, Zone 2
Power Supply	24 V DC
Protection Class	IP20
System Type	Remote I/O System
Communication Protocols	PROFIBUS DP
I/O Modules	Analog, Digital
Signal Type	Analog, Digital
Number of Channels	Varies by module
Intrinsic Safety	Yes
Isolation	Channel to channel, channel to system
Output Current	Varies by module (e.g., 0.5 A, 2 A)
Connection Type	Screw terminals
Dimensions	Varies by module
Weight	Varies by module
Temperature Range	-20 ... 60 °C (-4 ... 140 °F)
