Pepperl+Fuchs LB Series User Manual

LB Remote I/O System
Product Specifications
2018-07
15
2.6 Accessories
2.6.1 Bus Connection
The following accessories are available for bus connections.
The service bus connection is provided via a 9-pin sub-D connector for all backplanes. The
way in which the fieldbus is connected depends on the bus system.
LB9001A
 Cable inlet at 35
 With connectible terminator
 With connection for a bus monitor or a class 2 master

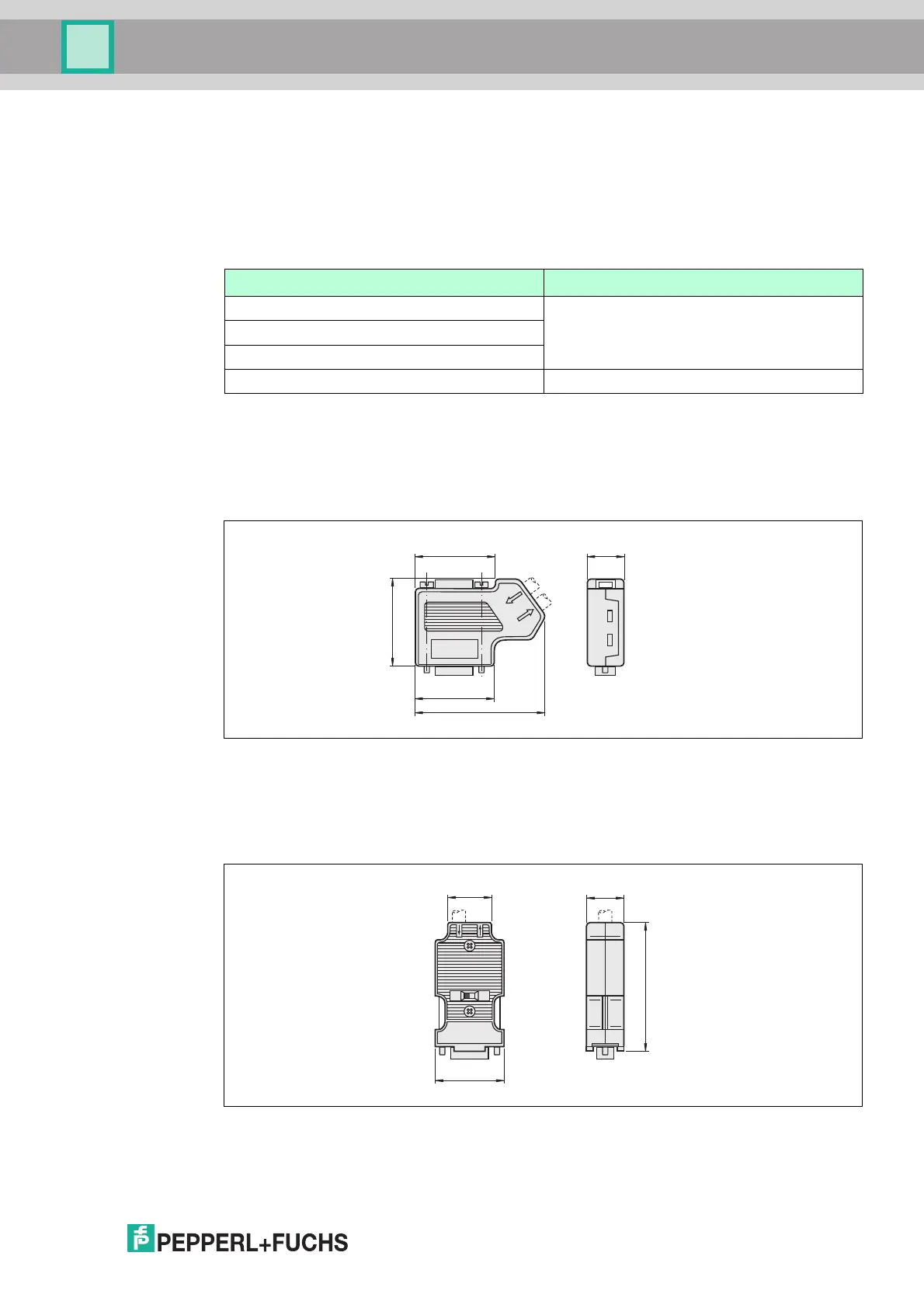

Figure 2.13 Dimensions of the LB9001A
LB9002A
 Axial cable inlet
 With connectible terminator
Figure 2.14 Dimensions of the LB9002A
Bus system Fieldbus connection
PROFIBUS DP/DP-V1 9-pin sub-D connector
MODBUS RTU
FOUNDATION fieldbus H1
MODBUS TCP RJ-45 socket
35
58
39.4
35.5 16.6
ON OFF
17
20
58.2
31.5

Pepperl+Fuchs LB Series Specifications

General

Mounting	DIN Rail
Zone	Zone 1, Zone 2
Power Supply	24 V DC
Protection Class	IP20
System Type	Remote I/O System
Communication Protocols	PROFIBUS DP
I/O Modules	Analog, Digital
Signal Type	Analog, Digital
Number of Channels	Varies by module
Intrinsic Safety	Yes
Isolation	Channel to channel, channel to system
Output Current	Varies by module (e.g., 0.5 A, 2 A)
Connection Type	Screw terminals
Dimensions	Varies by module
Weight	Varies by module
Temperature Range	-20 ... 60 °C (-4 ... 140 °F)
