Pepperl+Fuchs LB Series User Manual

LB Remote I/O System
Installation
2018-07
37

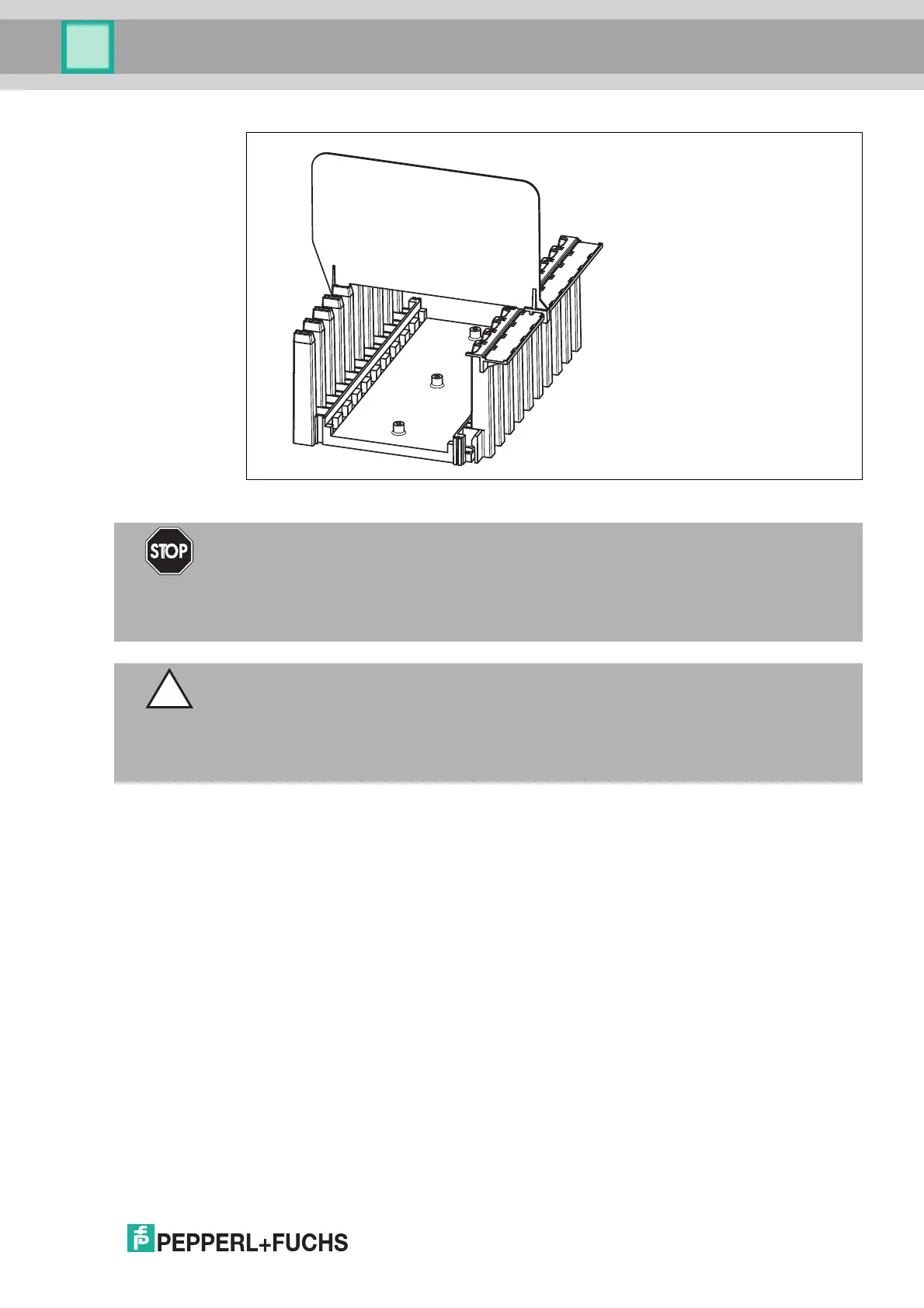

3.6 Field Wiring
Field connections can be made to the I/O modules using screw terminals, front screw
terminals, or spring terminals. Use the terminal blocks from the range of accessories. See
chapter 2.6.2
Front screw terminals or spring terminals are ideal for performing extensions at a later point or
for changing individual field connections, as the plug can remain in the front socket of the I/O
module during wiring. These terminals offer a test plug socket for measuring individual current
circuits.
Danger!
Risk of explosion
Measuring instruments that do not meet the requirements for use in hazardous areas can
cause explosive mixtures to ignite.
Only use accessories and devices that are approved for use in the respective environment.
Caution!
Loss of intrinsic safety
Circuits with the Ex i type of protection that have been operated with non-intrinsically safe
circuits must no longer be used as circuits with Ex i type of protection.
Use only Ex i-certified measuring instruments in conjunction with Ex i-certified I/O modules.

Pepperl+Fuchs LB Series Specifications

General

Mounting	DIN Rail
Zone	Zone 1, Zone 2
Power Supply	24 V DC
Protection Class	IP20
System Type	Remote I/O System
Communication Protocols	PROFIBUS DP
I/O Modules	Analog, Digital
Signal Type	Analog, Digital
Number of Channels	Varies by module
Intrinsic Safety	Yes
Isolation	Channel to channel, channel to system
Output Current	Varies by module (e.g., 0.5 A, 2 A)
Connection Type	Screw terminals
Dimensions	Varies by module
Weight	Varies by module
Temperature Range	-20 ... 60 °C (-4 ... 140 °F)
