LB Remote I/O System
Installation

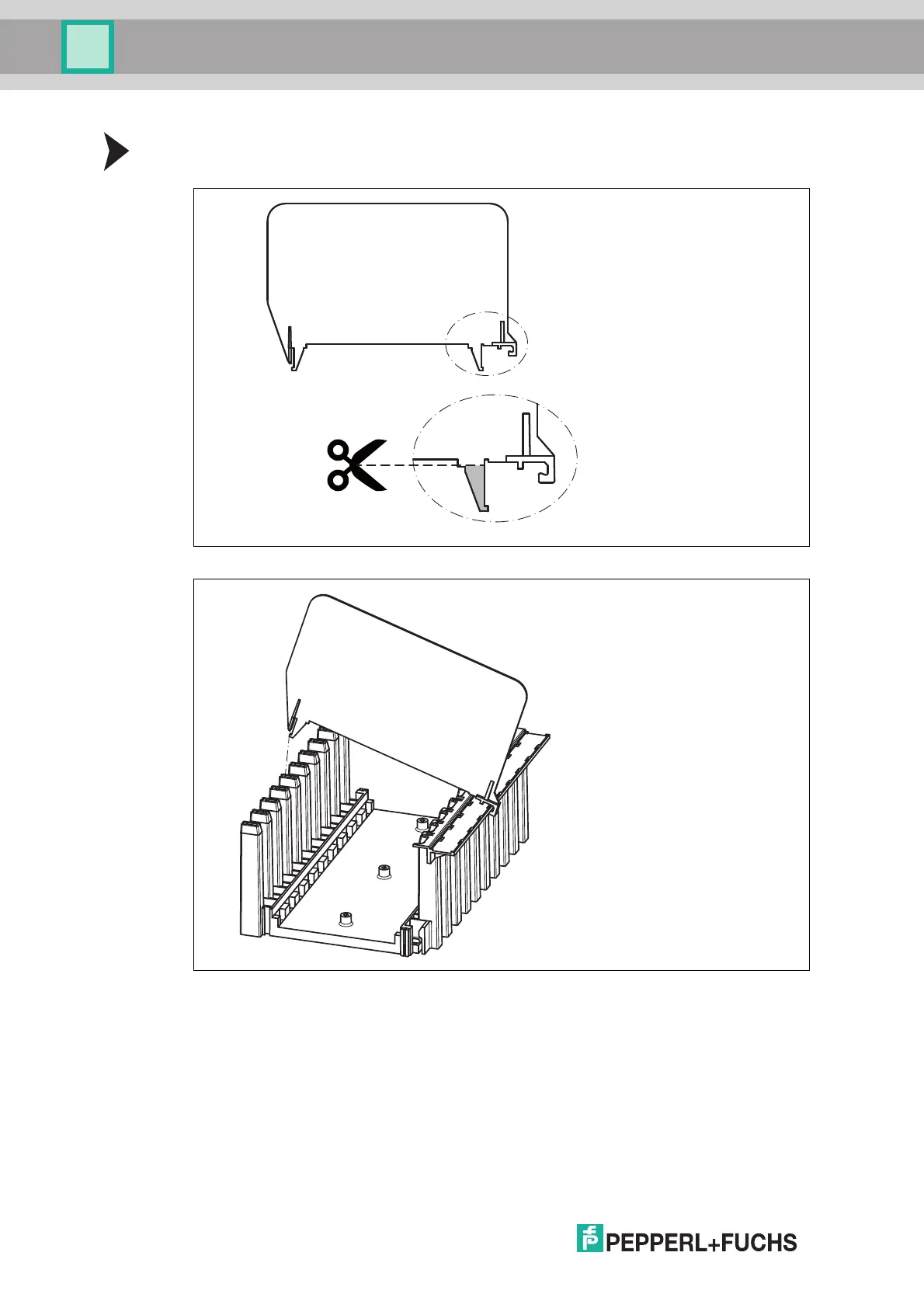

Mounting on a Backplane with a Label Carrier
1. Cut off the pin that is located near the catch on the separation wall.
2. Hook the catch into the label carrier.
3. Insert the pin on the separation wall into the plastic holders on the backplane, ensuring the
pin snaps into place.
