LB Remote I/O System
Product Specifications
LB9003A
 Cable inlet at 90°
 With connectible terminator
 With connection for a bus monitor or a class 2 master

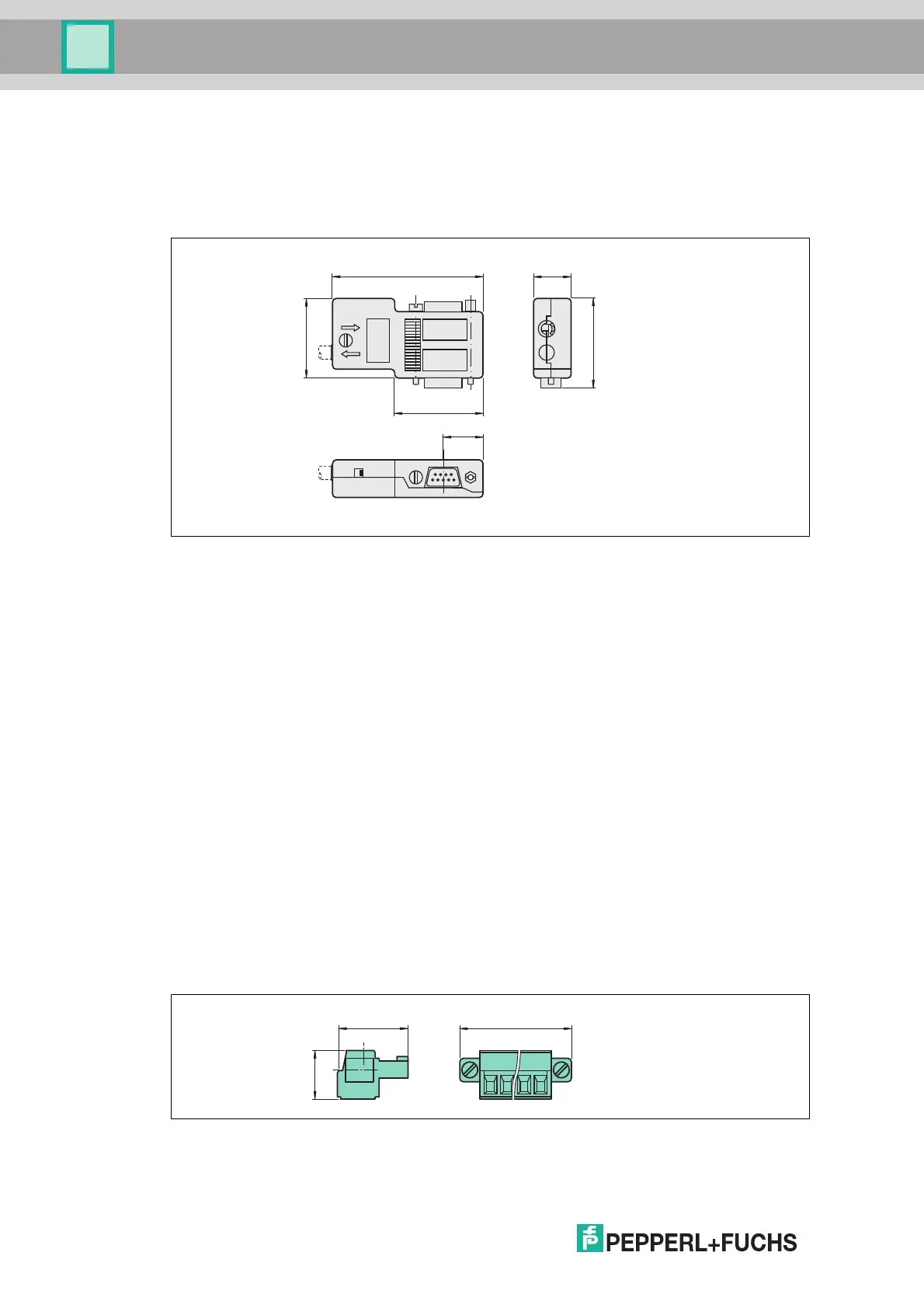

Figure 2.15 Dimensions of the LB9003A
2.6.2 Field Wiring
The following accessories are available for field wiring.
Terminal Blocks
Terminal blocks are wired to the field devices, attached to the front sockets of the I/O modules,
and tightened using the side screws. Terminal blocks can come in the form of screw terminals,
front screw terminals, or spring terminals. All versions are available in green and blue. Use
green terminal blocks for non-intrinsically safe circuits and blue terminal blocks for intrinsically
safe circuits.
 Screw terminals
• Green: LB9007A, LB9013A, LB9014A
• Blue: LB9107A, LB9113A, LB9124A, LB9125A
 Front screw terminals
• Green: LB9017A, LB9018A, LB9019A
• Blue: LB9117A, LB9118A, LB9119A, LB9127A
 Spring terminals
• Green: LB9009A, LB9015A, LB9016A
• Blue: LB9107P, LB9115A, LB9116A, LB9126A, LB9130A, LB9131A
Figure 2.16 Screw terminal dimensions
L = 33.3 mm for 6-pin terminal and 40.9 mm for 8-pin terminal
36
40.5
40
68.2
17
18
O F F O N
R
Screw Terminals
15.3
L
11.1

Pepperl+Fuchs LB Series Specifications

General

Mounting	DIN Rail
Zone	Zone 1, Zone 2
Power Supply	24 V DC
Protection Class	IP20
System Type	Remote I/O System
Communication Protocols	PROFIBUS DP
I/O Modules	Analog, Digital
Signal Type	Analog, Digital
Number of Channels	Varies by module
Intrinsic Safety	Yes
Isolation	Channel to channel, channel to system
Output Current	Varies by module (e.g., 0.5 A, 2 A)
Connection Type	Screw terminals
Dimensions	Varies by module
Weight	Varies by module
Temperature Range	-20 ... 60 °C (-4 ... 140 °F)
