12 and 13 Use these pins to monitor the skin or rectal temperature of the animal.
The use of a copper-constantan thermocouple is recommended.
These pins may also be used to connect to the THM 100 ECG monitor
(Indus Instruments).

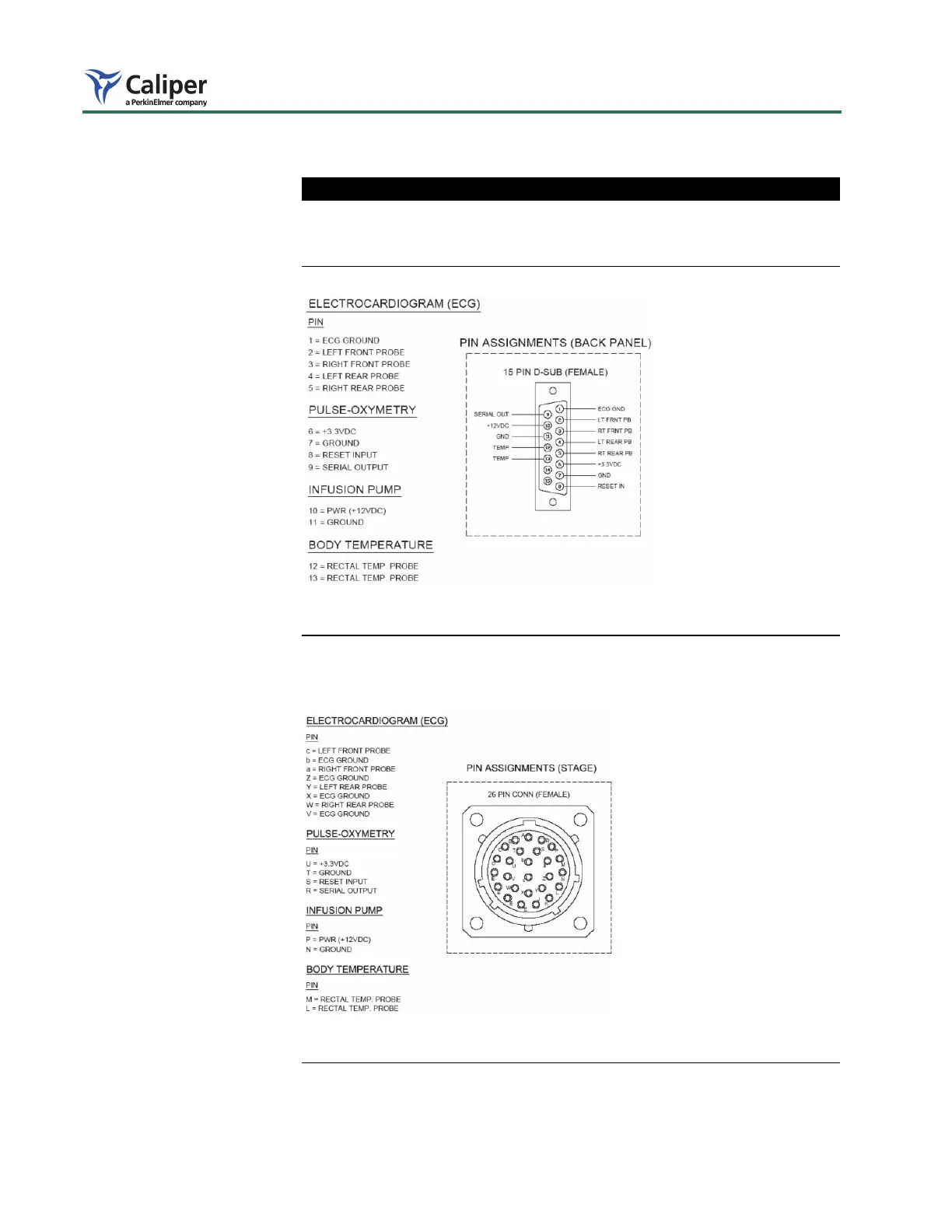

Figure 6.8 Back panel connector
Figure 6.9 Stage connector
Table 6.1 Connector pin usage
Pin Number Function
Note: A 15 pin D-sub male mating connector is required (supplied by user).
Note: Connector type in shelf--MS3119E16-26PS. Mating connector required (supplied by
customer). Manufacturer: Amphenol Aerospace, part no. MS3126F16-26P.
