8.6 Accessing the Area Under the Imaging Platform
During normal operation, the imaging platform always returns to the loading
position before the door can be opened. This helps ensure user safety and
convenience when loading subjects. Occasionally you may need access to the
area beneath the platform for cleaning or to retrieve a subject. Since the
platform moves rapidly and produces strong forces, the area beneath the
platform is not accessible unless the normal operation mode is overridden.
To access the space below the imaging platform:
1. Remove all items from the imaging stage that are taller than 2 cm and close
the door.
2. In the IVIS System Control panel, select Service from the FOV drop-down
menu.
— The platform moves to the service position and the door can be opened.
3. Place the stage lock down bar in position as shown in Figure 8.5.
Be careful not to disturb the platform heater cable or the gas tubing located
in this area.
To return the platform to the operating position:
1. Return the lock down safety bar to the stowed position under the front edge
of the imaging platform and close the door.
2. In the IVIS System Control panel, select Load from the FOV drop-down
menu.
— The imaging platform returns to the normal operating position.

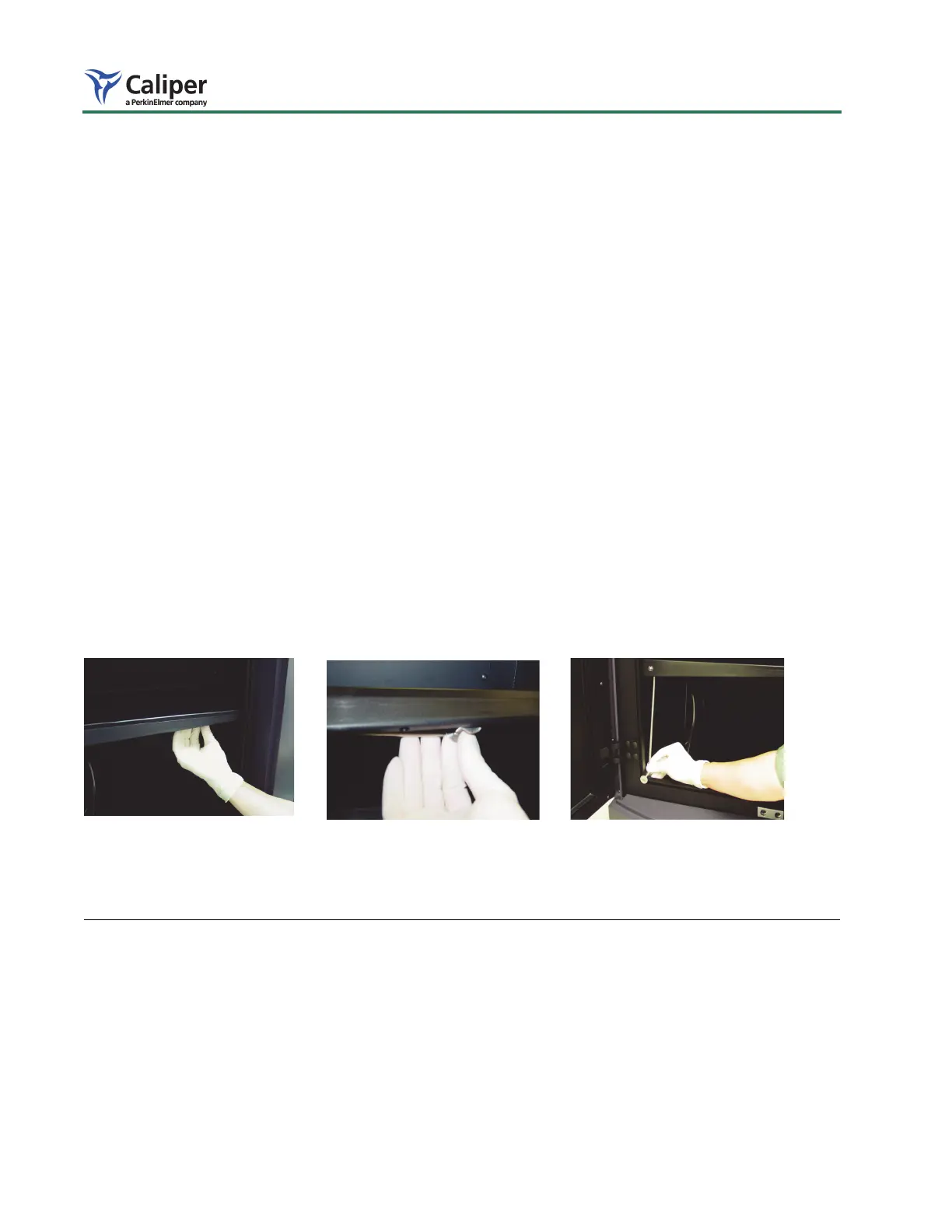

Figure 8.5 Imaging platform and the stage lock down bar
If you need to access the space under the imaging platform, use the lock down bar as a safety precaution.
The stage lock down bar is located at
the bottom front edge of the imaging
platform.
Pull the bar down from the stowed
position and place it as shown above.
Return the bar to its stow position
before returning the imaging platform to
the operating position.
