PerkinElmer LAMBDA 265 - Page 10

09931228D
10

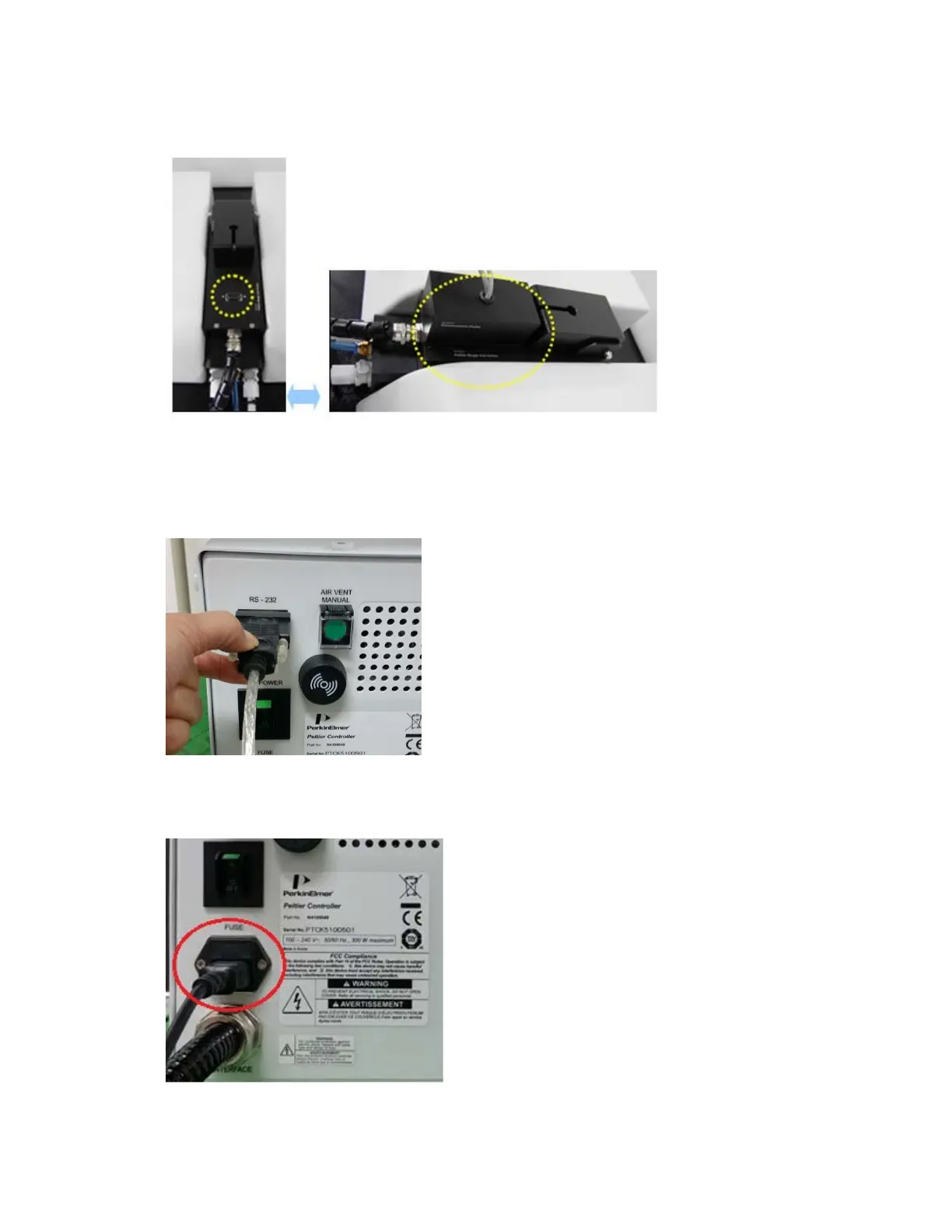

9. Connect the temperature probe to the interface slot of the Peltier controlled single cell.
Figure 10 Connecting the temperature Probe to the interface slot of the Peltier
Controlled Single Cell
10. Connect the Peltier controller with the PC via the RS-232 or USB to RS-232 cable. See
Setting the
USB to RS-232 Port
on page 15 for port settings when you use the USB to RS-232.
Figure 11 Connecting Peltier controller with the PC
11. Connect the power cord to the Peltier Controller.
Figure 12 Connecting the power cord to the Peltier controller
