09931228D
c. SP Temp (°C): Shows the current temperature while it goes up / down to the measurement
temperature.
d. Block Temp (°C): Shows the temperature of Cell Block.
e. Probe 1 Temp (°C): Shows the temperature of Probe 1.
f. Probe 2 Temp (°C): Shows the temperature of Probe 2.
g. Monitor: Monitored temperature is shown out of Block, Probe 1 and Probe 2.
h. Hold time (min): Shows the set holding time.
i. Elapsed time (m:s): Shows the elapsed time to reach the sampling temperature.
j. Status: Shows the status of experimental progress.
k. Error Range (°C): Shows the temperature tolerance between the sampling temperature
and monitored temperature. The measurement will be made only when the temperature
tolerance reaches within the set Error Range.
NOTE:
To pull out the cell easily, use the cell lifting knob.

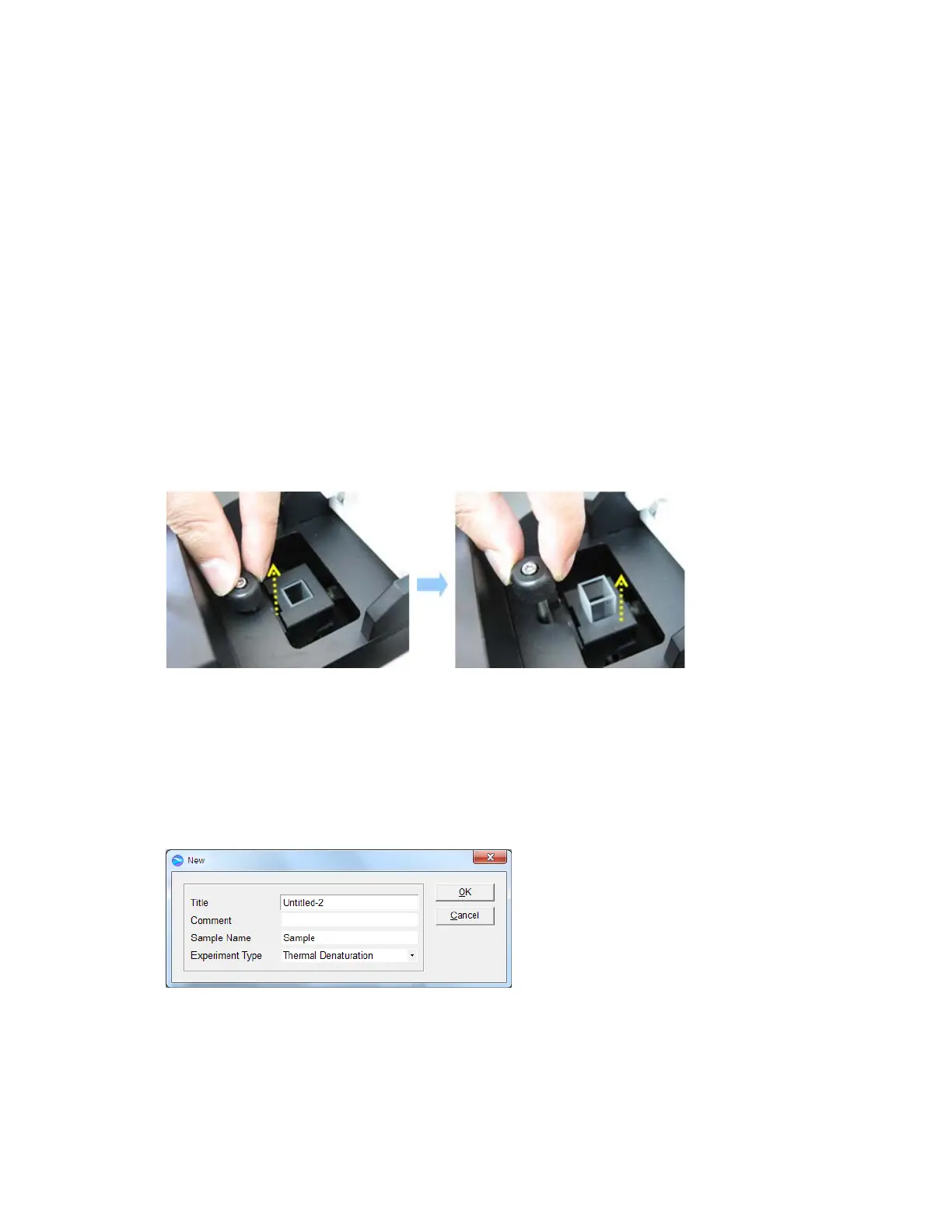

Figure 16 Pulling out the cell
13. After the measurement is finished, the results are displayed in the result window. Save or print
results as required.
1. Launch UV Lab software and then, select Thermal Denaturation in the Experiment Type.
