PerkinElmer Lambda 465 Installation Instructions

09931238D
4
Description
Configuration of the Peltier Control Single Cell Holder

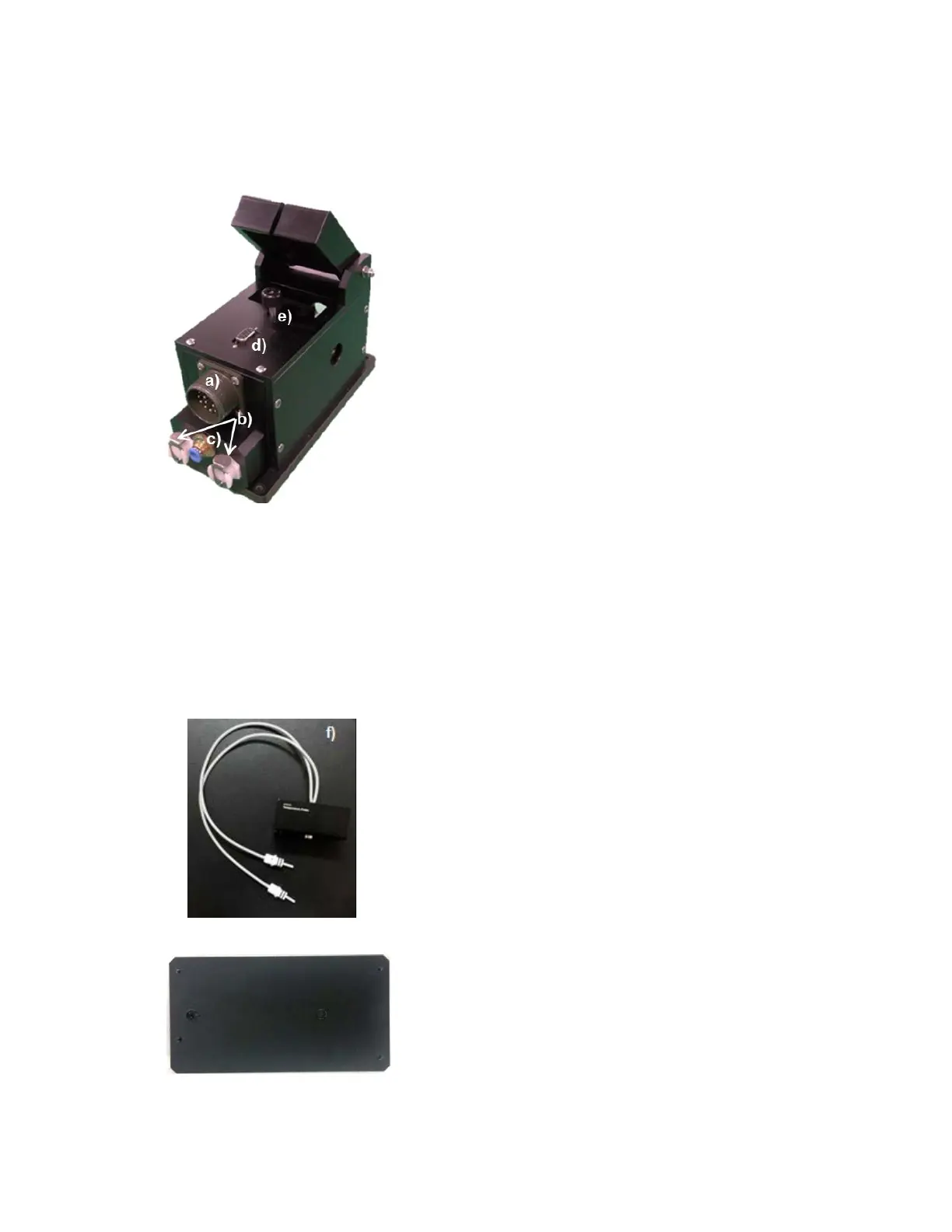

Figure 2 Lambda 465 Peltier Control Single Cell
a) Interface connector between Peltier Single Cell Holder and Peltier Controller
b) Coolant Inlet/Outlet Quick Coupler
c) N
2
gas fitting
d) Interface slot for Temperature Probe
e) Cell Lifting knob
f) Temperature probe
Figure 3 Temperature Probe Accessory
Figure 4 Base Plate
