09931238D

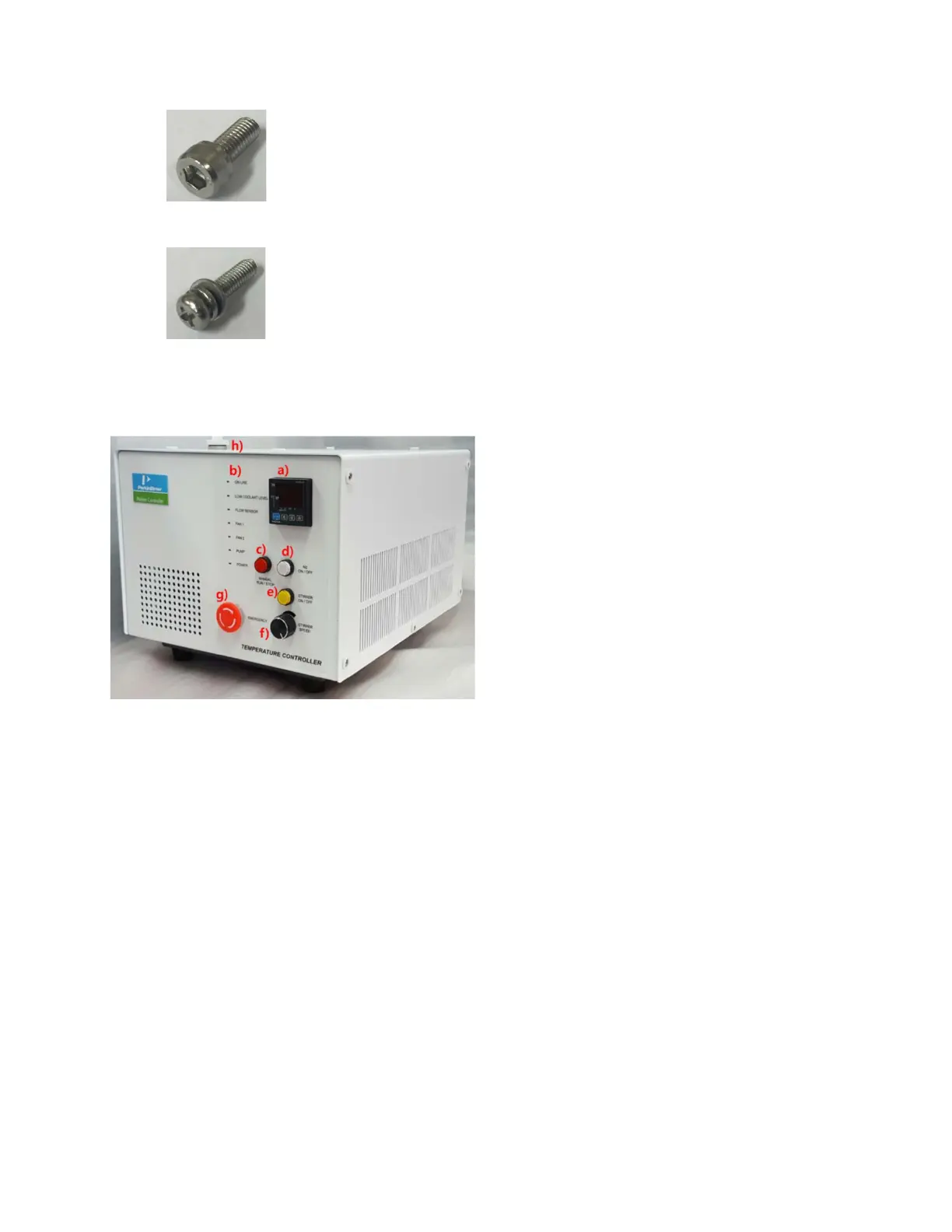

Figure 5 Wrench bolt M5, Length 15 mm, 2 ea
Figure 6 Phillips round head screw with washer M4, 15 mm, 4 ea
Front View of Peltier Controller
Figure 7 Front view of the Peltier Controller
a. Manual touch pad with Display: Temperature Control Unit (Heating/Cooling Block)
b. LED Indicators: Indicate the status of the operation of Coolant circulation, Fan, Pump, etc. (If
there is a problem in the components, Red LED will flash with beep alarm.).
c. Manual ON/OFF button: As the Manual ON/OFF button is ON, the temperature can be
controlled manually by a) Manual touch pad with display.
NOTE:
Manual operation is used only for the manufacturing process so it should be turned off during the
measurement.
d. N
2
gas ON/OFF button: It is used for using N
2
gas to remove the frost from the heating and
cooling.
e. Stirrer ON/OFF button: It is used for controlling of the stirring.
f. Stirrer Speed Controlling Knob: Control the stirring speed (rpm).
g. Emergency switch: Stop all the operations in an emergency situation.
During the operation, the emergency switch should be turned off.
h. Coolant Inlet
