Product Information Section
Model Views
Product Information
Section
Model Views
i04231649
Model View Illustrations
The following model views show typical features
of the engine and the aftertreatment system.
Due to individual applications, your engine, or
your aftertreatment may appear different from the
illustrations.
1204E-E44TTA
g02409511

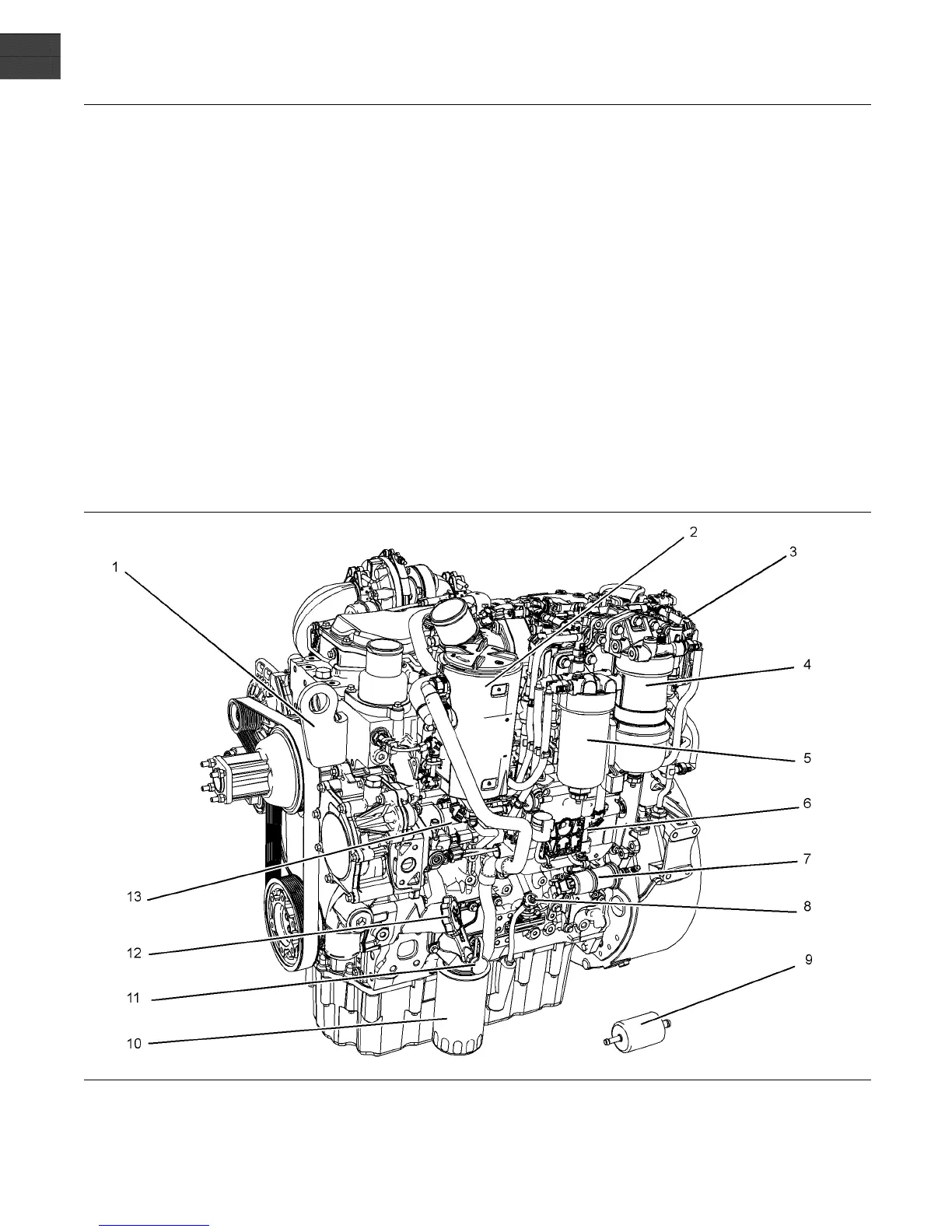

Illustration 17
(1) Front lifting eye
(2) Crankcase breather
(3) NOx R eduction system (NRS)
(4) Primary fuel filter
(5) Secondary fuel filter
(6) Electronic control module (ECM)
(7) Fuel priming pump
(8) Oil gauge (dipstick)
(9) Fuel strainer
(10) Oil filter
(11) Oil s ampling valve
(12) Oil filler
(13) High-pressure fuel pu mp
