24 SEBU8605-01
Product Information Section
Model Views

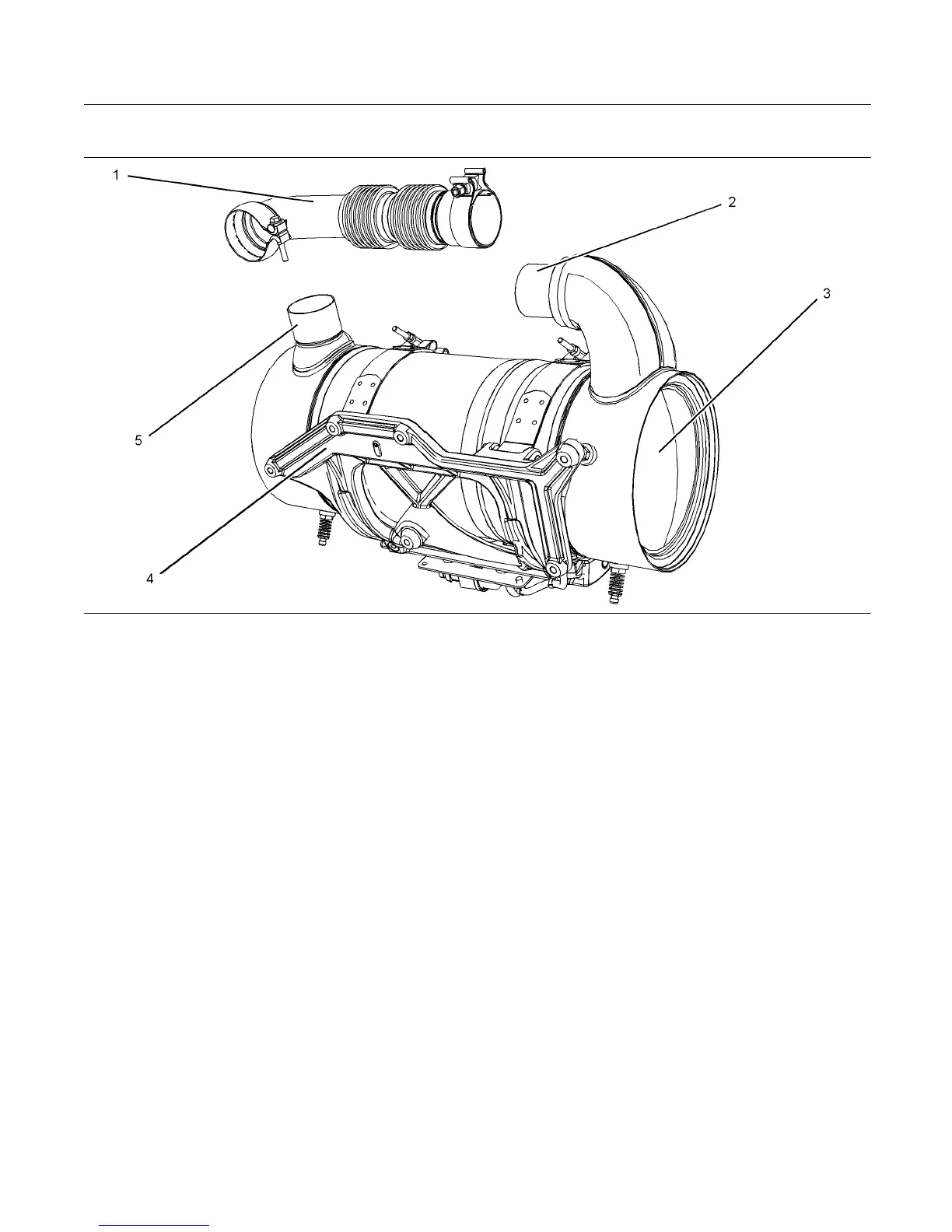

Engine Aftertreatment System
g02483
616
Illustration 23
Typical example
(1) Fle
xible exhaust pipe
(2) Inl
et connection
(3) Cle
an e missions module
(4) M o u
nting c radle
(5) Ou t
let connection
i04340692
Engin
e D e scription
Perkins has designed two versions of the 1204E
industrial engine.
•
1204E-E44TA (MK)
•
120
4E-E44TTA (ML)
The 1204E-E44TA (MK) engine is equipped with a
sin
gle turbocharger.
The 1204E-E44TTA (ML) engine is equipped with
se
ries turbochargers. An engine that is equipped
with series turbochargers have a low-pressure
turbocharger and a high-pressure turbocharger.
The Perkins 1204E industrial engines have the
following characteristics.
•
In-line four cylinder
•
F
our stroke cycle
•
Turbocharged charge cooled
Engine Specifications
The front end of the engine is opposite the flywheel
end of the engine. The left and the right sides of the
engi
ne are determined from the flywheel end. The
number 1 cylinder is the front cylinder.
