Fan Clearance - Check
NOTICE
Do not fill the o
il filters with oil before installing them.
This oil would not be filtered and could be contaminat-
ed. Contaminated oil can cause accelerated wear to
engine compon
ents.
6. Apply clean engine oil to O ring seal (3) for the
new oil filte
r(4).
7. Install the new oil filter. Spin on the oil filter (4)
until the O r
ing contacts the sealing surface (2).
Then rotate the oil filter ¾ of a full turn. Remove
the container and disposal of the waste oil in
accordanc
e with local regulations.
Fill the Oi
lPan
1. Remove the oil filler cap. Refer to this
Operatio
n and Maintenance Manual, “Fluid
Recommendations” for more information on
suitable oils. Fill the oil pan with the correct
amount o
f new engine lubricating oil. Refer
to this Operation and Maintenance Manual,
“Refill Capacities” for more information on refill
capacit
ies.
NOTICE
If equipped with an auxiliary oil filter system or a re-
mote filter system, follow the OEM or the filter manu-
factures recommendations. Under filling o r over filling
the crankcase with oil can cause engine damage.
2. Start the engine and run the engine at “LOW
IDLE” for 2 minutes. Perform this procedure in
order to ensure that the lubrication system has
oil and that the oil filters are filled. Inspect the oil
filter for oil leaks.
3. Stop the engine and allow the oil to drain back to
the oil pan for a minimum of 10 minutes.

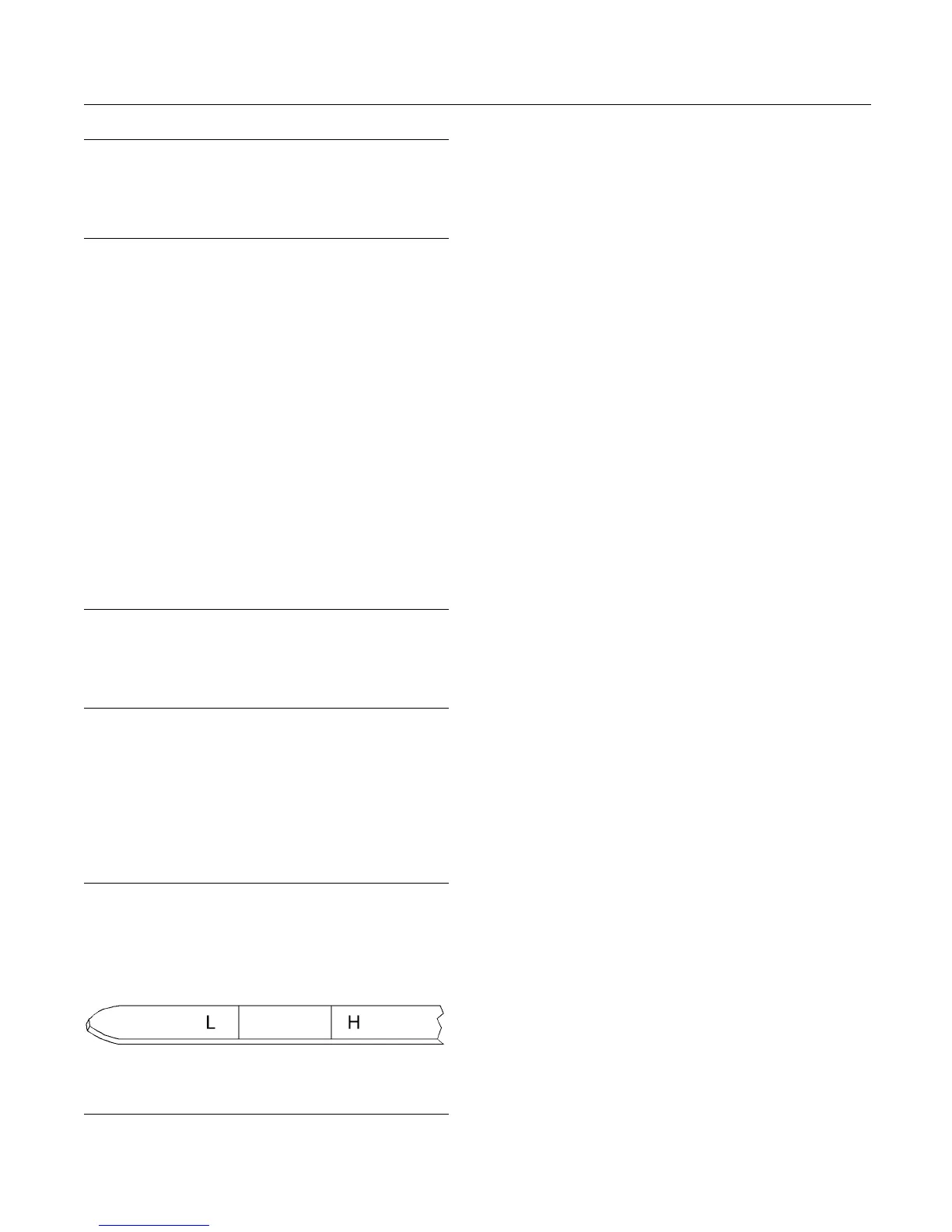

g02173847
Illustration 67
“L” Low
“H” High
4. Remove the engi
ne oil level gauge in order to
check the oil level. Maintain the oil level between
“L” and “H” marks on the engine oil level gauge.
Do not fill the c
rankcase above the “H” mark.
i04323342
Fan Clearanc
e - Check
There are different types of cooling systems. Refer to
the OEM for information on clearance for the fan.
Ensure that the engine is stopped. Ensure that the
cooling system is full. The clearance between the
cover (1) a
nd the fan (2) will require checking. The
gap (A) between the edge of the cover and the tip of
the fan blade must be checked in four equally spaced
positions
.
