SEBU8605-01 43
Operation Section
Features and Controls
g02414076

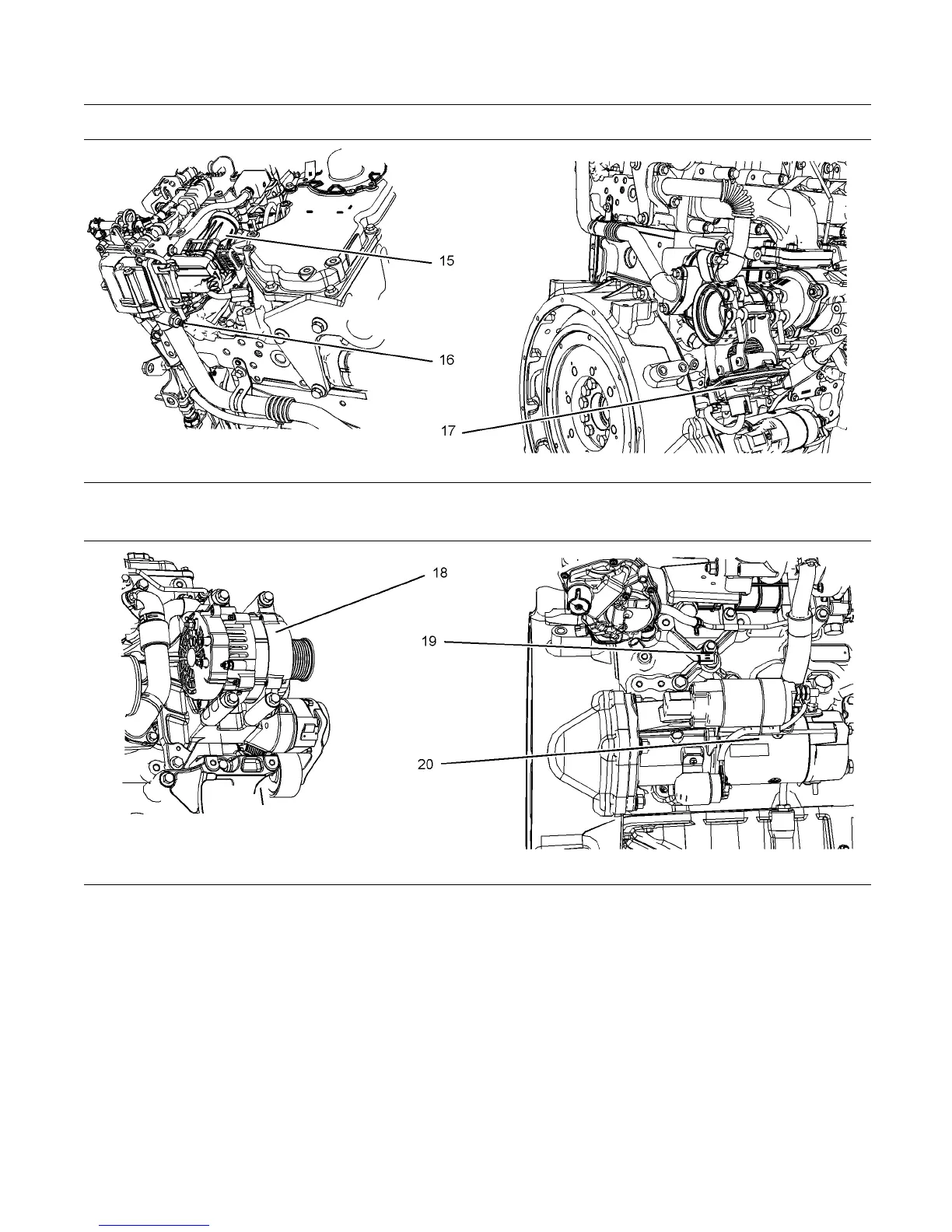

Illustration 39
(15) Control Valve for the NRS (16) Temperature Sensor for the NRS (17) Back Pressure Valve
g02414077
Illu
stration 40
(18) Alternator (19) Secondary Speed/Timing Sensor
(Camshaft Position Sensor)
(20) Starting Motor
