SEBU8337 15
Product Information Section
Model Views

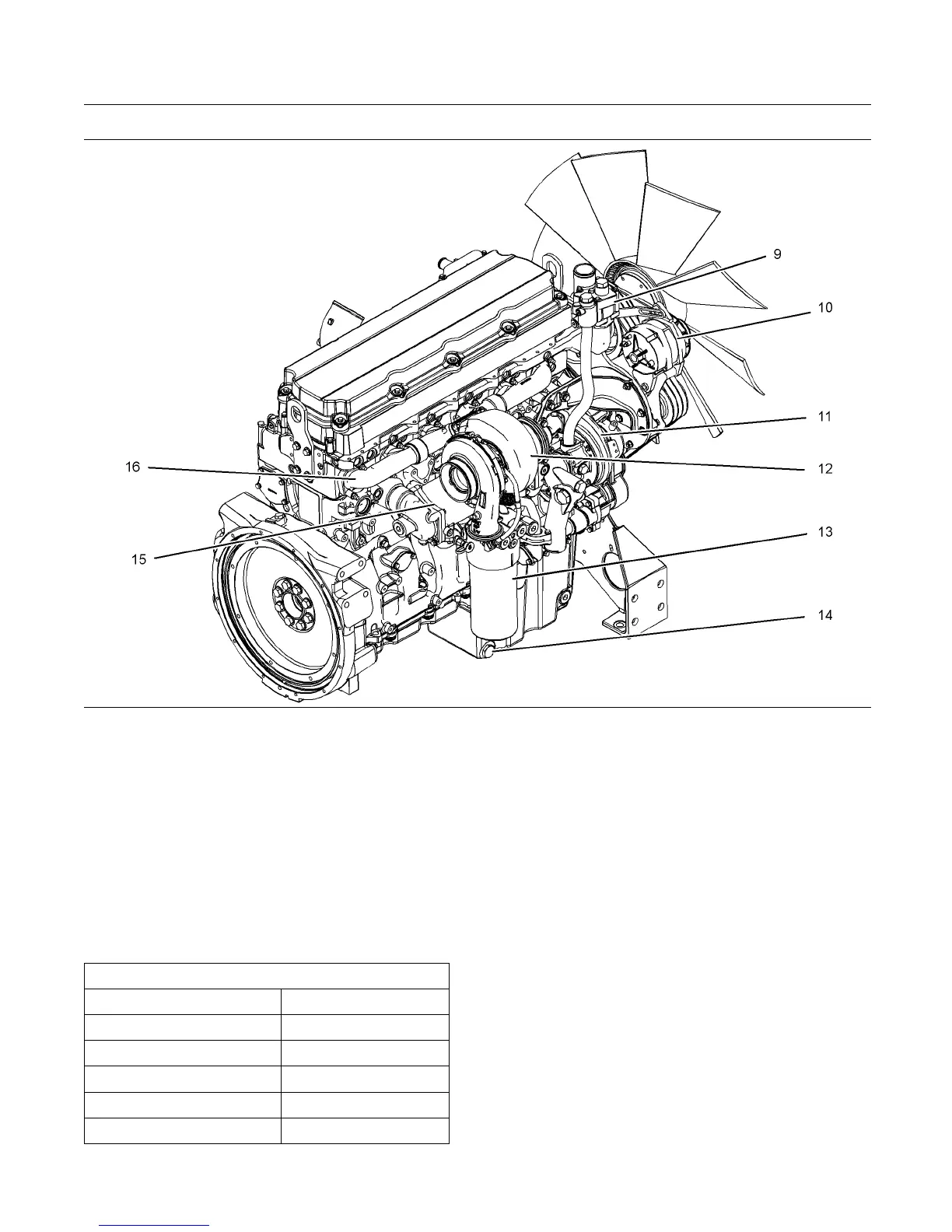

g01385635
Illustration 1 2
Typical example
Right side engine view
(9) Water temperature regulator housing
(10) Alternator
(11) Water pum p
(12) Turbocharger
(13) Oil filter
(14) O il drain plug
(15) Oil cooler
(16) E xhaust manifold
i02770677
Engine De script ion
Table 1
2206 Engine Specifications
Cylinders and Arrangement In-line six cylinder
Bore 130 mm (5.2 inch)
Stroke 157 mm (6.2 inch)
Displacement
12.5 L (7
63 in
3
)
Firing Order
1-5-3-6-2-4
Rotation (flywheel end) Counterclockwise
The electronic engines that are covered by this
manual have the following characteristics: direct fuel
injection, electronic unit injection that is mechanically
actuated, turbocharged, and air-to-air aftercooled
(ATAAC).
The electronic engine control system provides the
following functions: electronic governing, automatic
air to fuel ratio control, injection timing control, and
system diagnostics.
An electronic governor controls the output of the unit
injectors in order to maintain the engine rpm that is
desired.
