SEBU8337 65
Maintenance Section
Engine Crankcase Breather - Replace
g01404604

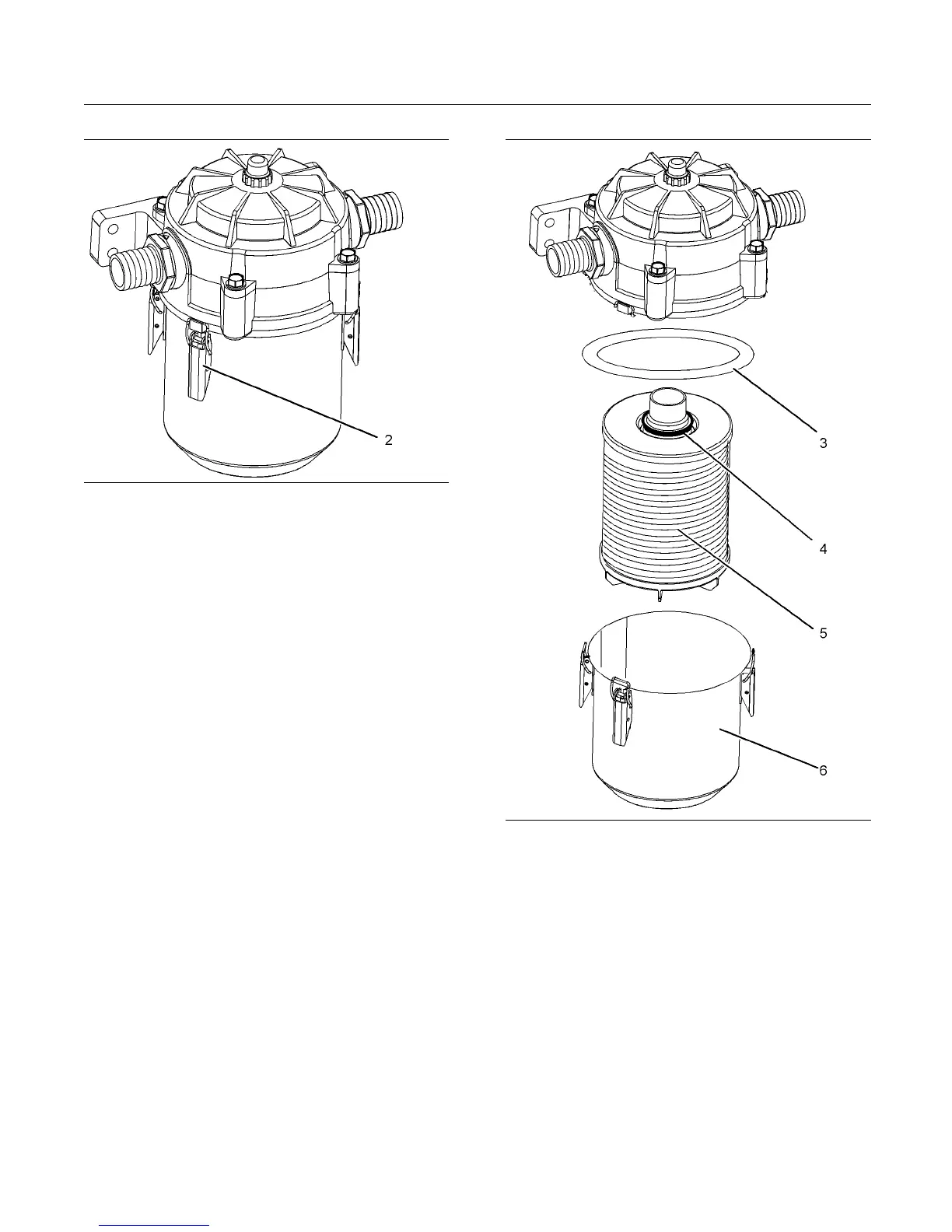

Illustration 29
Typical example
2. Unlatch the clips (2) that secure the filter bowl (6).
g01404613
Illustration 30
Typical example
3. Remove the filter bowl and remove the filter
element (5). Remove the O ring seal (4) with the
filter element.
4. Remove the main O ring seal (3). Clean the filter
bowl.
5. Install a new O ring seal (3). Install the new O ring
seal (4) on the new filter element (5). Install the
filter element into the filter bowl (6).
6. Align the filter element and the filter bowl. Install
the filter bowl to the top of the breather. Connect
the drain (1).
