Product Information Section
Model Views

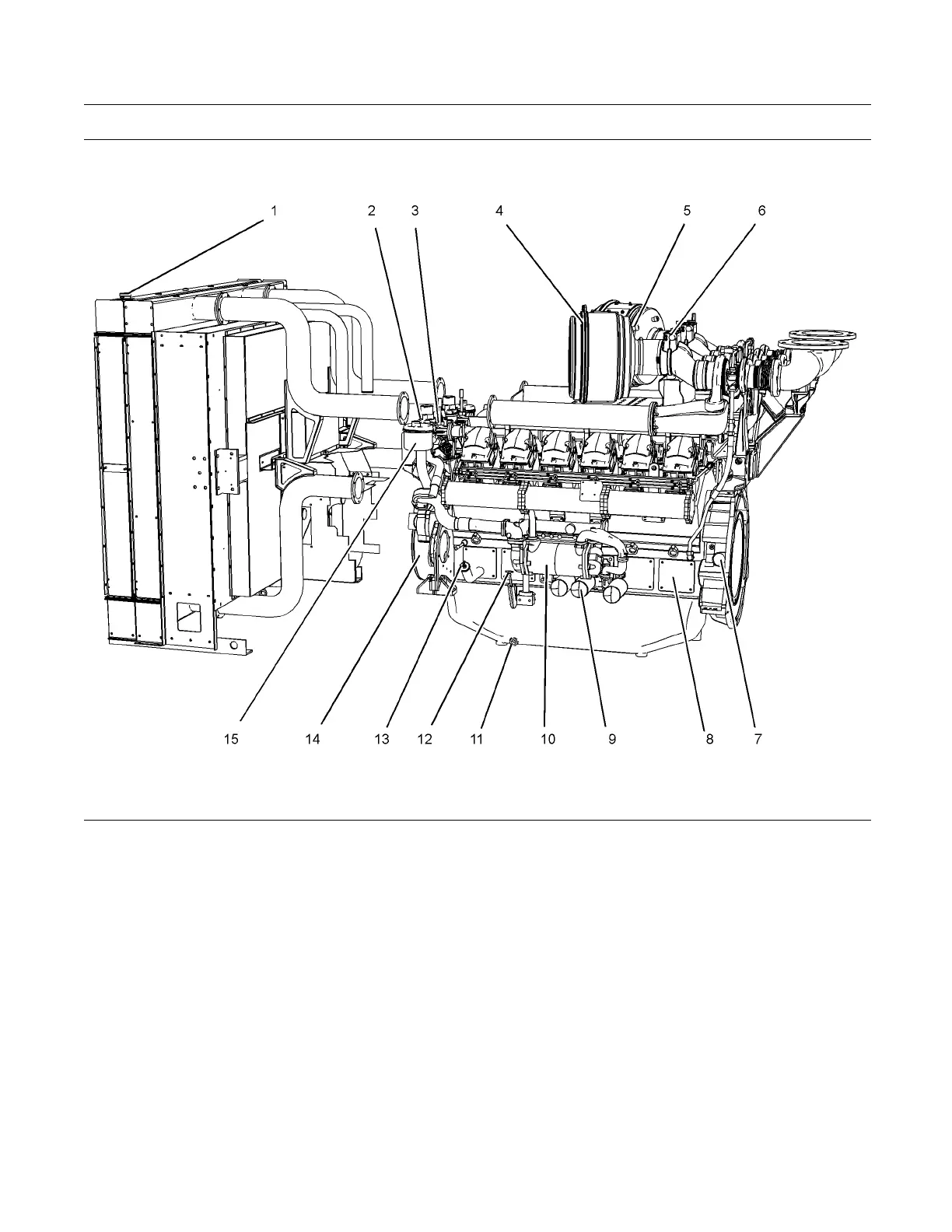

g02090055
Illustration 10
Typical example
Left side view of engine
(1) Radiator cap
(2) Thermostat housing
(3) Coolant temperature switch
(4) Air cleaner
(5) Res triction indicator f or air cleaner
(6) Air shutoff valve
(7) Timing inspection hole
(8) Inspection covers for crankcase
(9) 3x Oil filters
(10) Oil cooler
(11) Oil dr ain plug
(12) Oil level gauge
(13) Oil filler
(14) Crankshaft damper
(15) Engine crankcase breather
