SEBU8191-01 15
Product Information Section
Model Views
g02090056

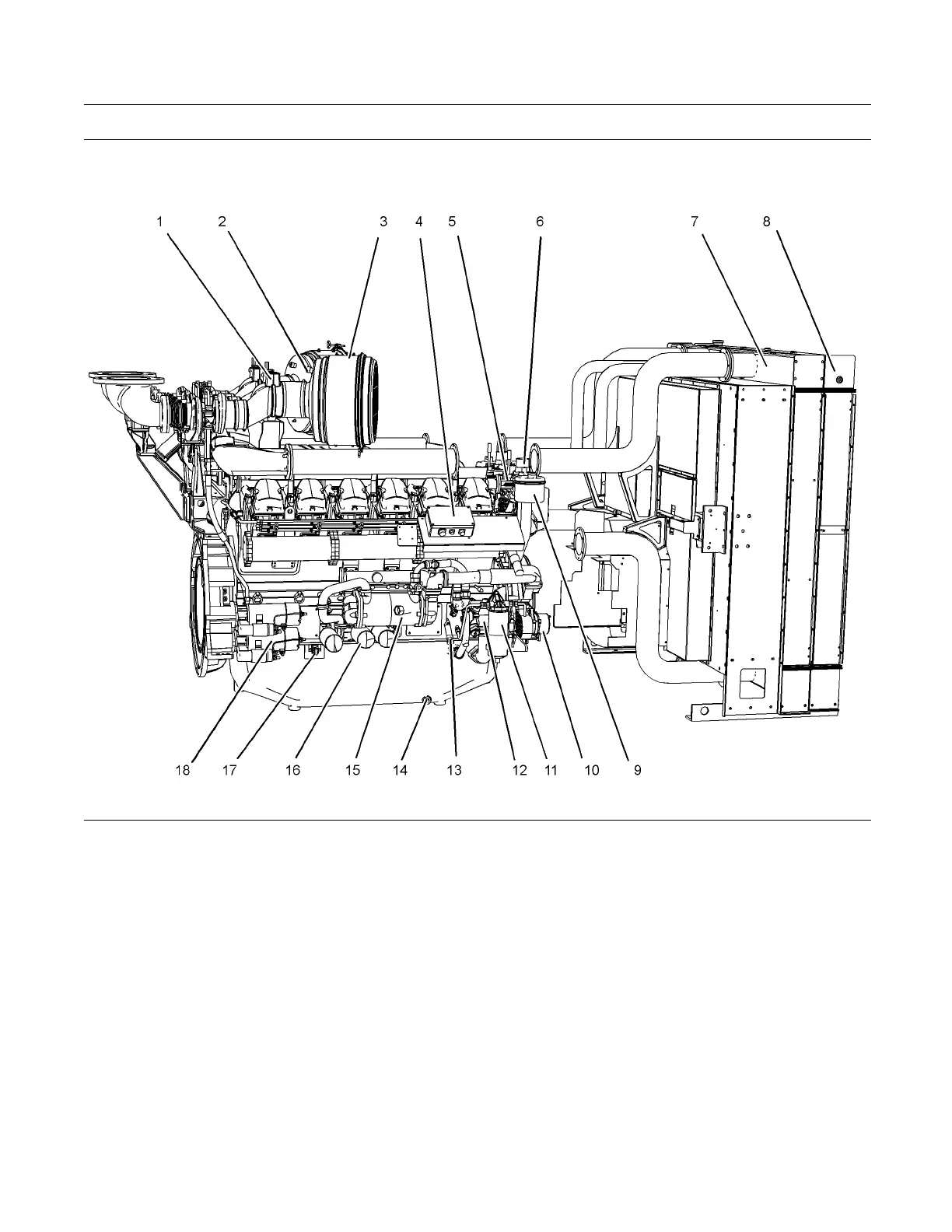

Illustration 11
Typical example
Right side view of engine
(1) Air shutoff v alve
(2) Res triction indicator f or air cleaner
(3) Air cleaner
(4) E lectronic governor control unit
(5) Coolant temperature switch
(6) Thermostat housing
(7) Aftercooler
(8) Radiator
(9) Engine crankcase breather
(10) Alternator
(11) Primary fuel filter/water separator
(12) Oil pump
(13) Fuel prim ing pump
(14) Oil pan drain plug
(15) Oil cooler
(16) 3x Oil filters
(17) Starter relay
(18) 2x Starting motors
i03754051
Engine Description
The 4012-46A Engine model is designed for power
generation. The engine is available with turbocharged
aftercooled aspiration.
Engine Specifications
No
te: The number 1 cylinders are to the front. The
front of the engine is farthest from the flywheel.
Bank A cylinders are on the right-hand side of the
e
ngine. Bank B cylinders are on the left-hand side of
the engin e. To determine the left and right sides of
the engine, stand behind the flywheel and face the
d
ampers.
