Chapter 2 N39453
Page 20

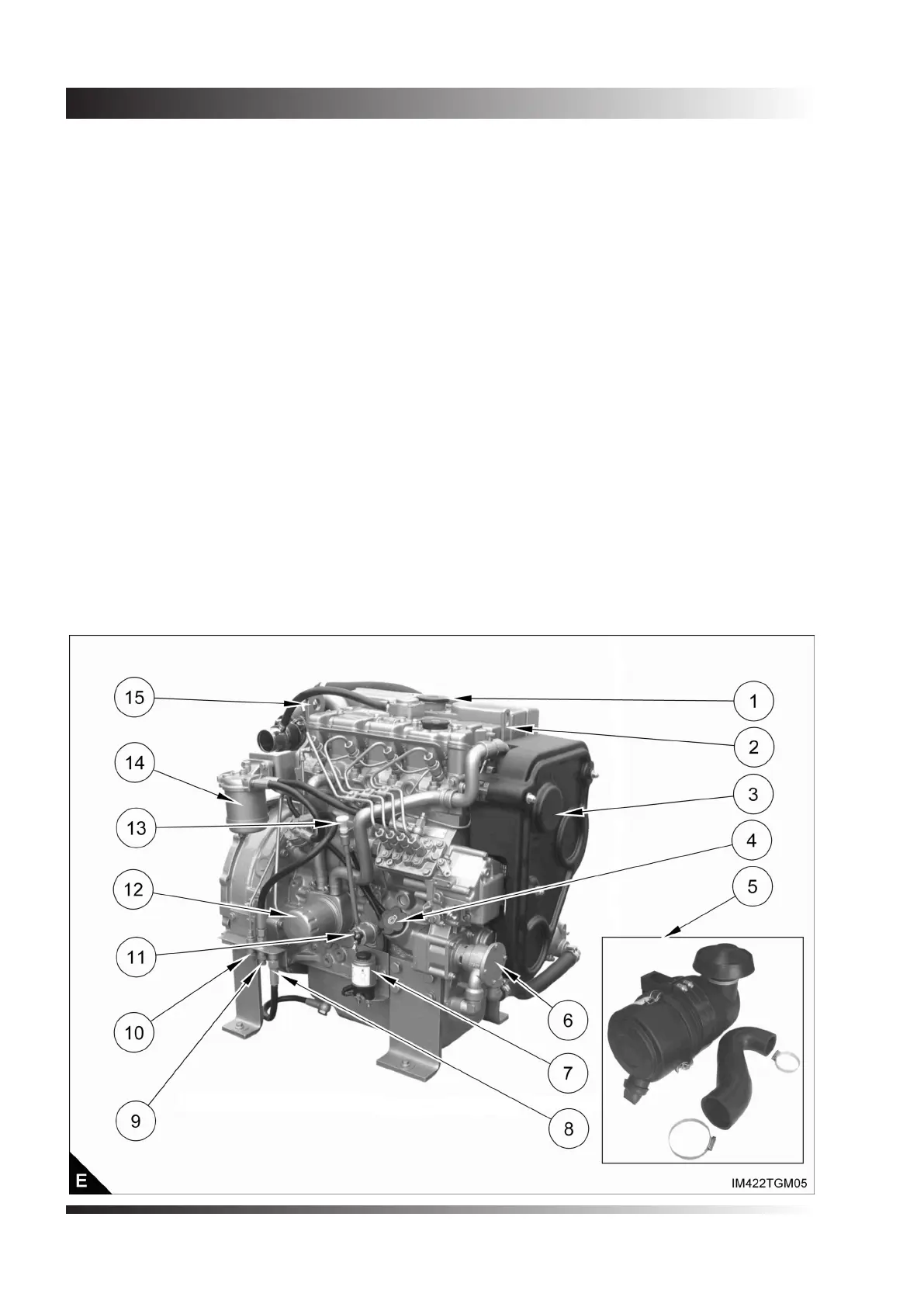

Location of engine parts for the - 422TGM
Front and right side view (E)
1. Coolant ller
2. Front lifting bracket
3. Belt cover
4. Oil ller cap
5. Air lter kit (supplied loose)
6. Raw water pump
7. Solenoid, negative earth
8. Fuel inlet
9. Excess fuel return
10. Sump drain take-off point
11. Oil pressure switch/sender
12. Oil lter
13. Dipstick
14. Fuel lter
15. Rear lifting bracket
