Adjustment
12 - 13
12.05.11 Presser foot to needle place clearance / presser foot pressure
Requirement
1. With the presser foot raised there should be a clearance of 7 mm to the needle plate.
2. The material should be fed without difficultly, even at top speed.
● Raise the presser foot with the hand lever.
● Reduce the speed on the presser foot using screw 1 (nut 2).
● Without twisting it, adjust presser rod 3 (screw 4) in accordance with requirement 1.
● Turn screw 1 (nut 2) in accordance with requirement 2.

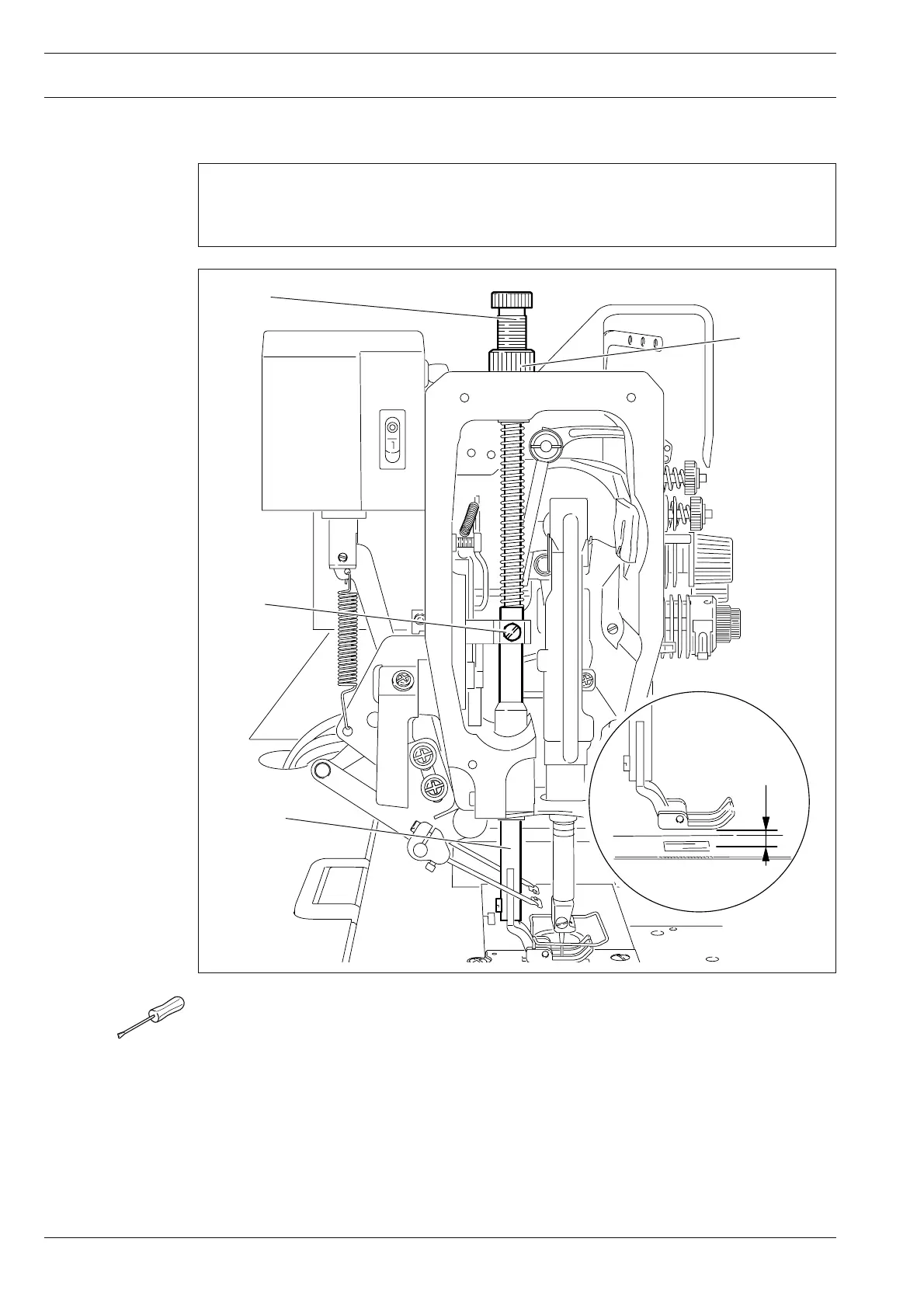

Fig. 12 - 12
1
2
4
3
109-046
7 mm
