Pfaff 1122 - Thread Catcher Position

Adjustment
12 - 20
109-051
12.06.03 Thread catcher position
Requirement
When the machine is in its basic position, thread catchers 1 should each have a clearance
of 27.2 mm to the corresponding edge of the needle plate cutout.
● Adjust thread catcher 1 (screws 2) in accordance with the requirement.

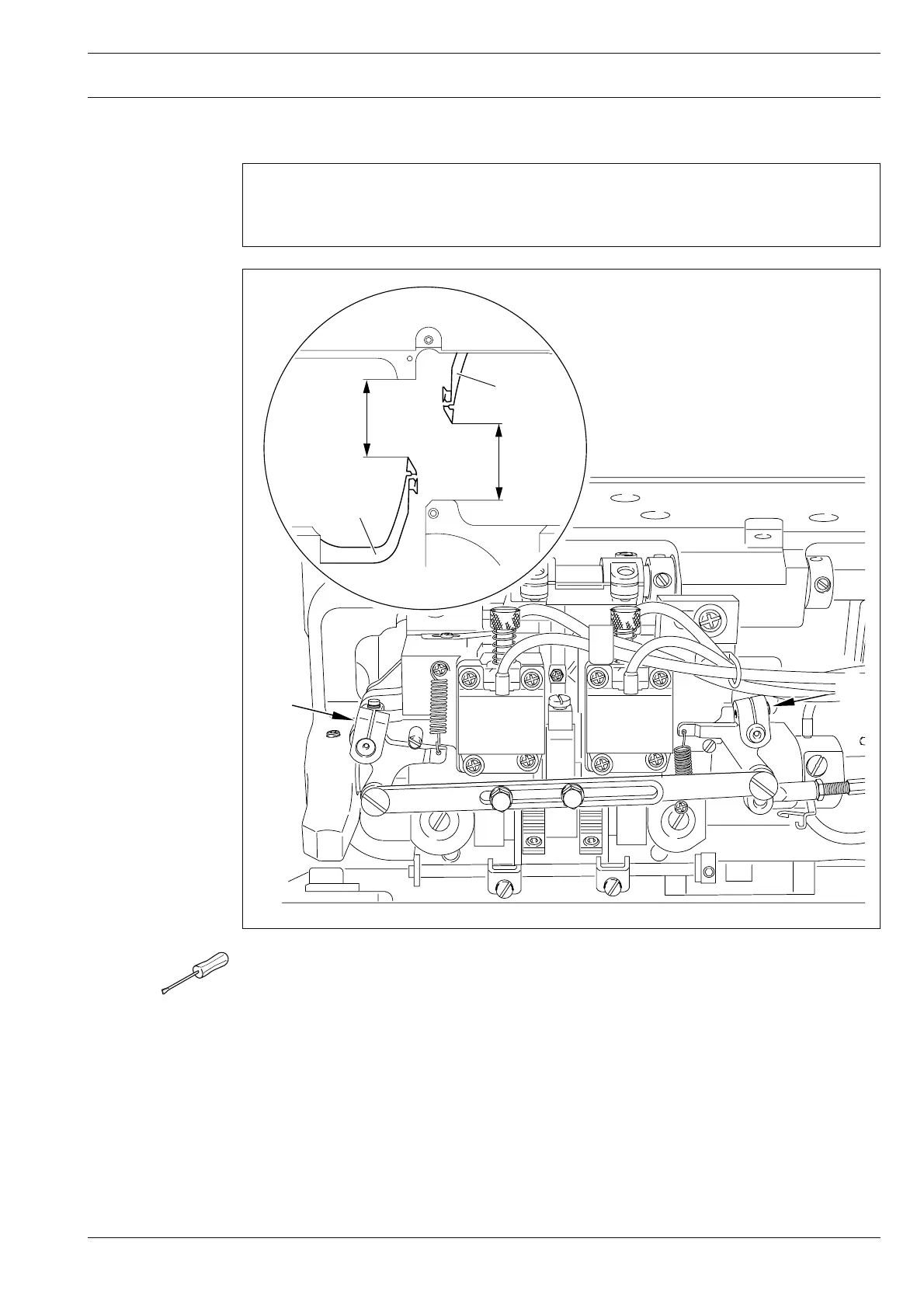

Fig. 12 - 19
109-050
1
27.2 mm
27.2 mm
1
2
2
