Pfaff 1122 - Positioning the Feed Dog

Adjustment
12 - 3
109-039
12.05.02 Positioning the feed dog
Requirement
1. The feed dog must be the same distance X from the right and left side of the needle
plate cutout.
2. With the longest stitch set, in its front and rear point of reversal the feed dog should be
the same distance Y from the needle plate cutout.
● Adjust holder 1 (screws 2) in accordance with the requirements.
X
X
12
2
109-040
109-042
Y
Y

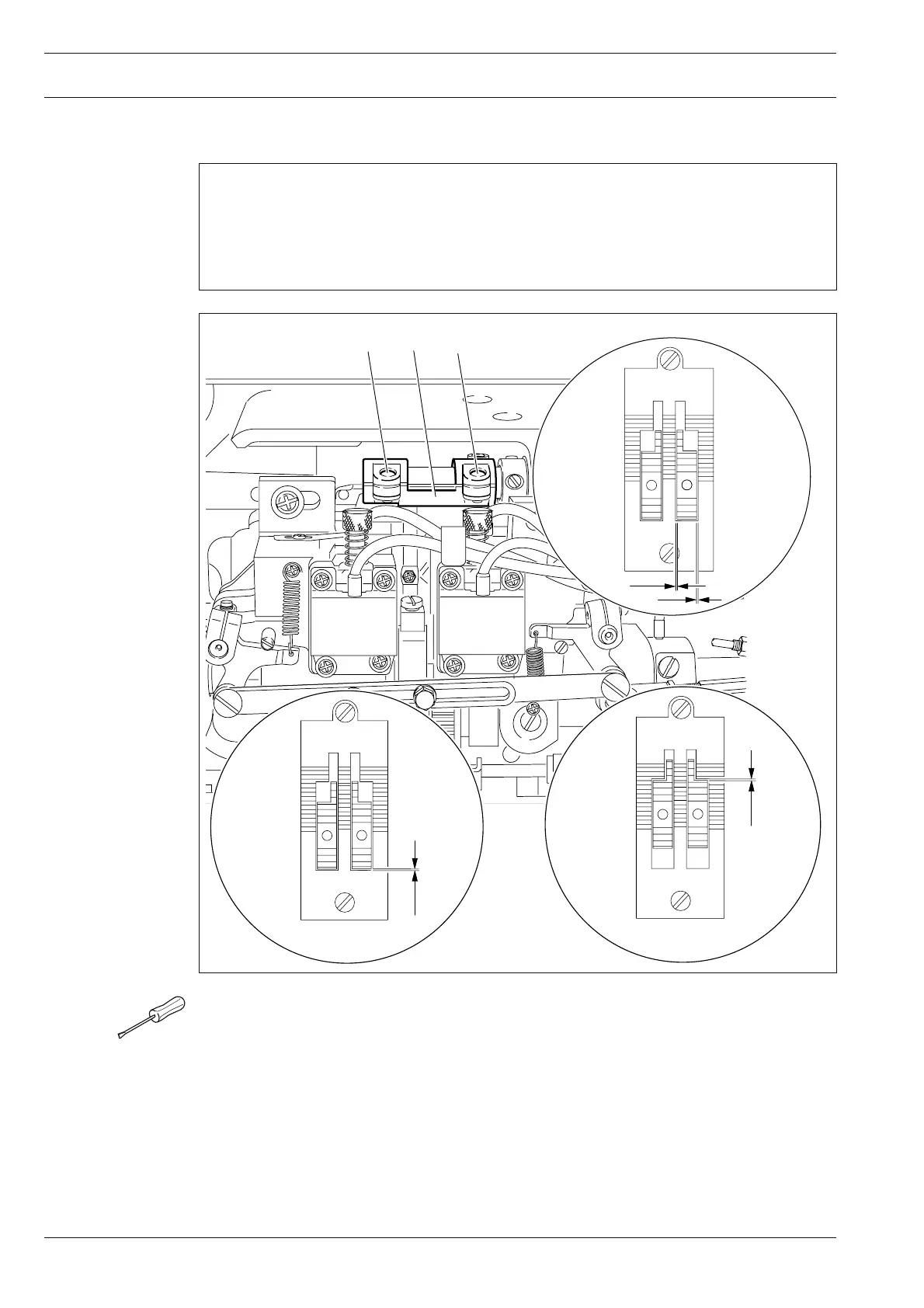

Fig. 12 - 02
