Pfaff 1122 - Preliminary Adjustment of the Needle Height

Adjustment
12 - 6
109-038
12.05.05 Preliminary adjustment of the needle height
Requirement
With the stitch length set at "0", when the needle bar is at its b.d.c., marking 3 should be
flush with the lower edge of bushing 4.
● Adjust needle bar 1 (screw 2) in accordance with the requirement.

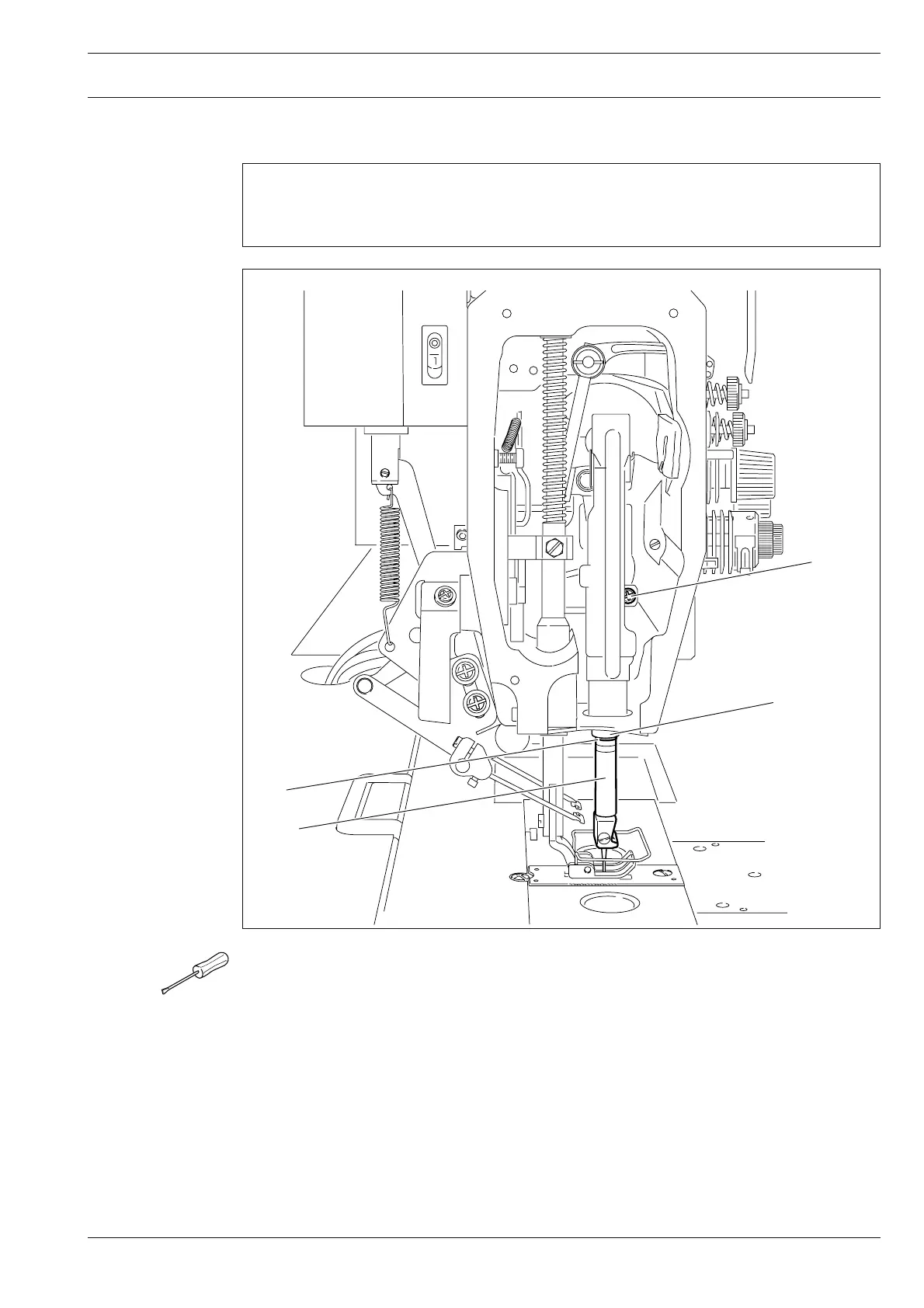

Fig. 12 - 05
3
1
2
4
