Installation and commissioning
8 - 3

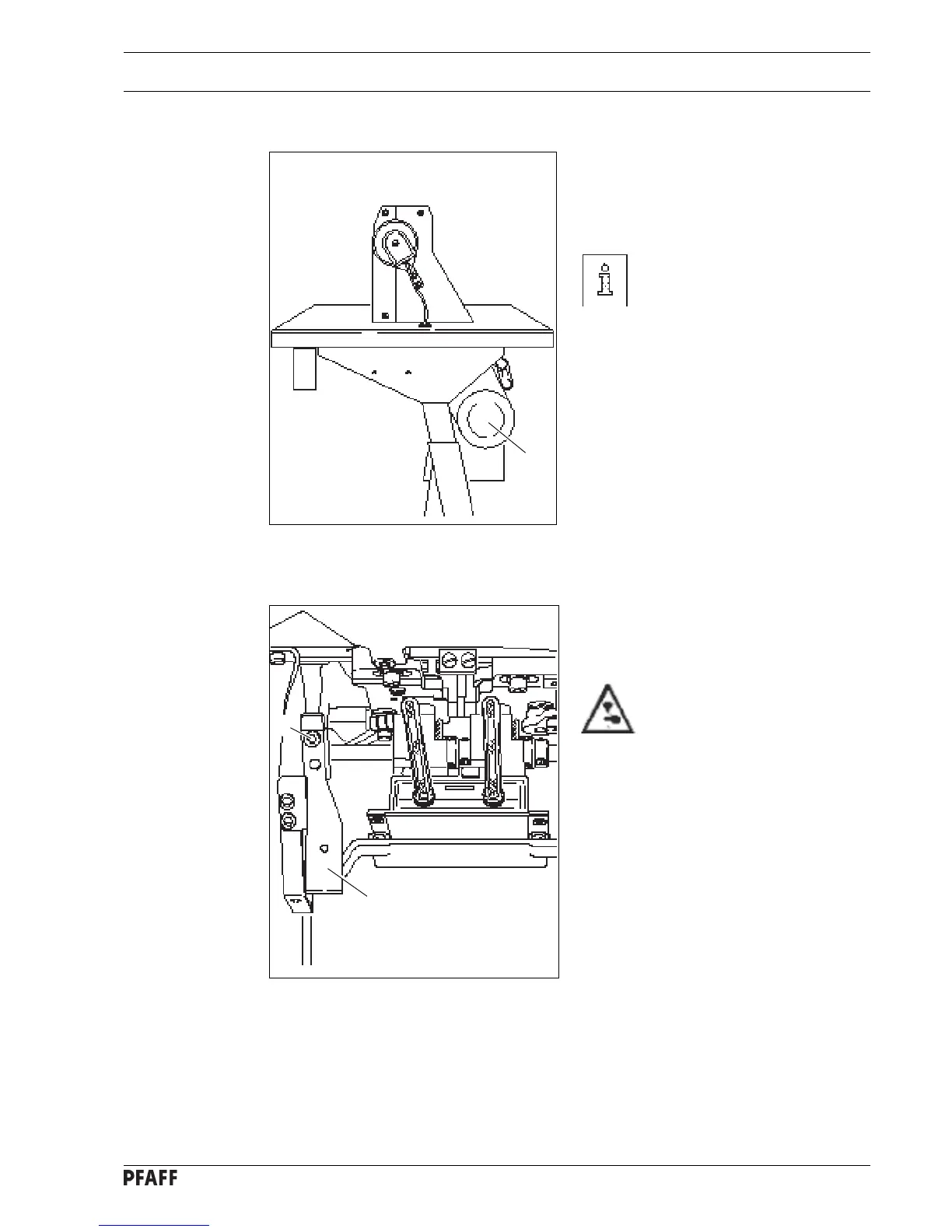

8.01.04 Mounting the lower V-belt guard
● Align belt guard 1 in such a way that both
the motor pulley and the V-belt run
freely.
Fig. 8-04
shows a Quick motor.
If another motor is used,
proceed as described in the
motor’s instruction manual.
Fig. 8 - 04
Fig. 8 - 05
1
8.01.05 Fitting tilt lock
● Attach tilt lock 1 included in the
accessories with screw 2.
Do not operate the machine
without tilt-over safeguard 1!
Danger of crushing between
upper part and the table top!
1
2
