Pfaff 1243 Service Manual

Adjustment
11 - 18
11.04.16 Clearance between presser foot / roller presser and needle plate
Requirement
1. On machines with a presser foot the distance between the raised presser foot and the
needle plate must be 8.5 mm
..
..
.
1. On machines with a roller presser the distance between the raised roller presser and
the needle plate must be 5 mm
..
..
.

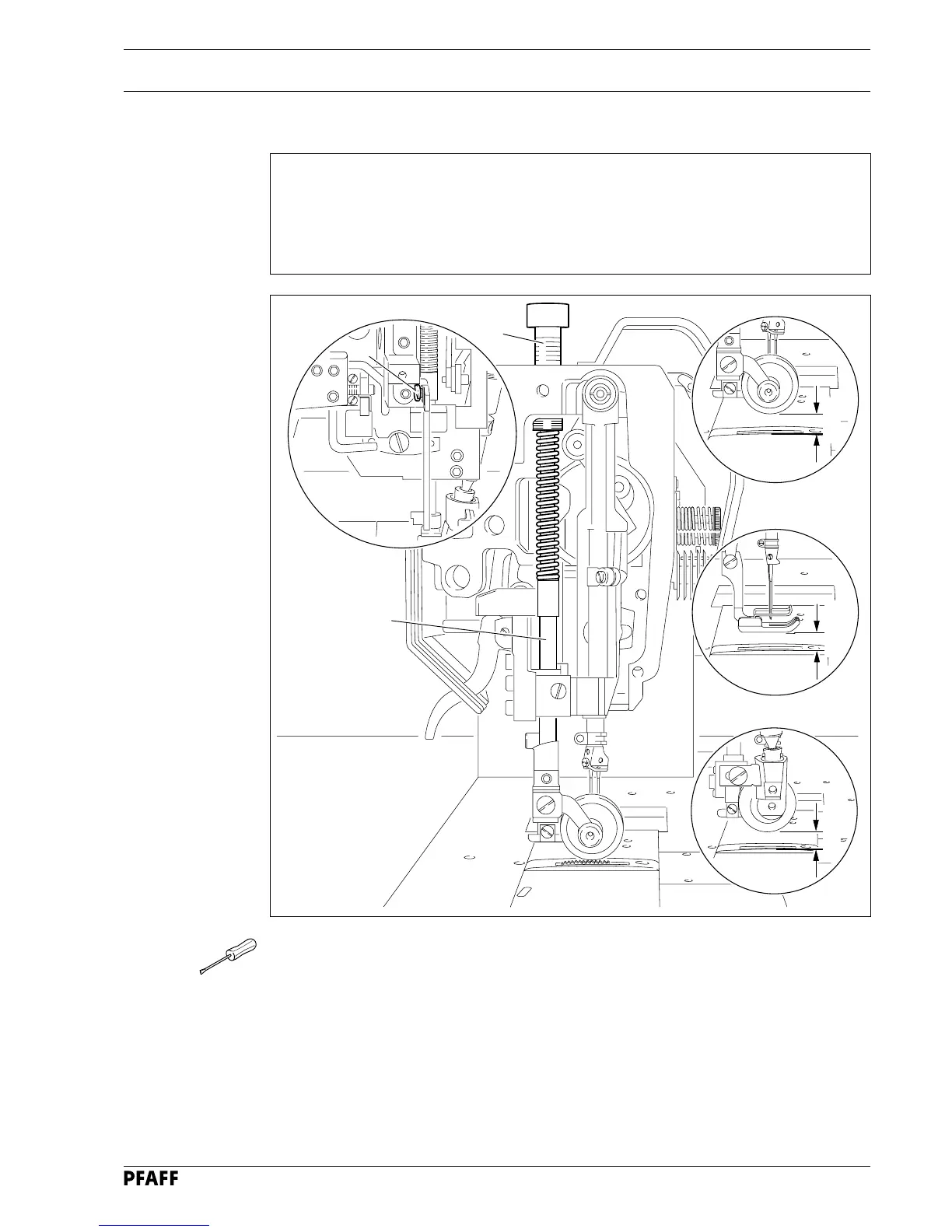

Fig. 11 - 16
● Raise presser foot or roller presser with the presser bar lifter.
● Reduce the pressure on the presser foot/roller pressure (screw 1).
● Move presser rod 2 (screw 3) in accordance with the requirement.
● Carry out the adjustment in accordance with Chapter 11.04.17 Pressure of
presser foot / roller presser.
1
2
3
5 mm
8.5 mm
5 mm
