Pfaff 1243 - Pre-Adjusting the Needle Height

Adjustment
11 - 4
11.04.03 Pre-adjusting the needle height
Requirement
With the needle bar at BDC, the distance between the needle bar and the needle plate
must be 15 mm.

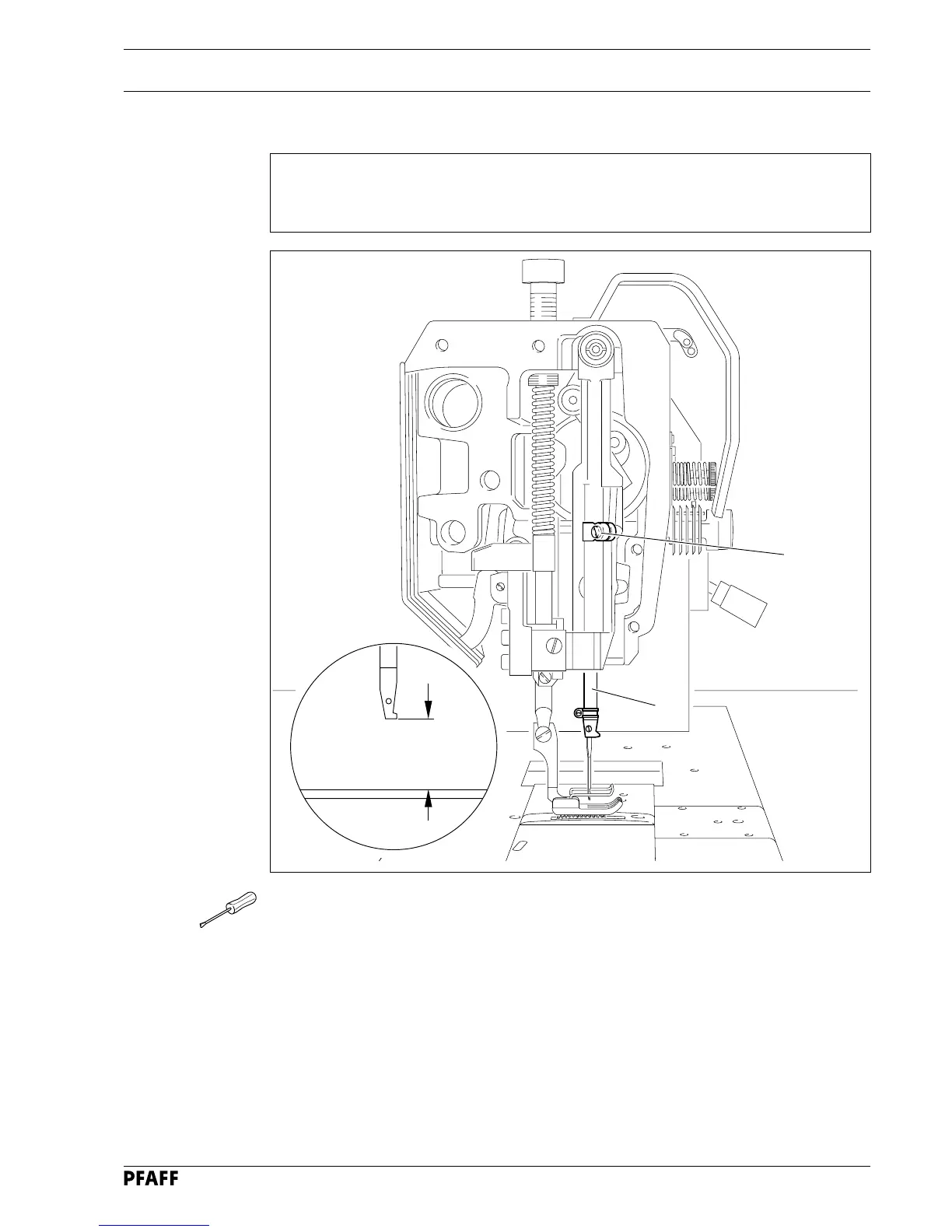

Fig. 11 - 03
● Position needle bar 1 (screw 2) in accordance with the requirement, without twisting it.
1
2
15 mm
