Adjustment
13 - 18
13.05.16 Bobbin winder
Requirement
1. With the bobbin winder engaged, drive wheel 1 must be driven reliably.
2. With the bobbin winder disengaged, friction wheel 5 must not run against drive wheel 1.
3. The bobbind winder must switch itself off when the filled thread is about 1 mm from
the rim of the bobbin.
● Re-position drive wheel 1 (screws 2) according to Requirements 1 and 2.
● Re-position pin 3 (screw 4) according to Requirement 3.

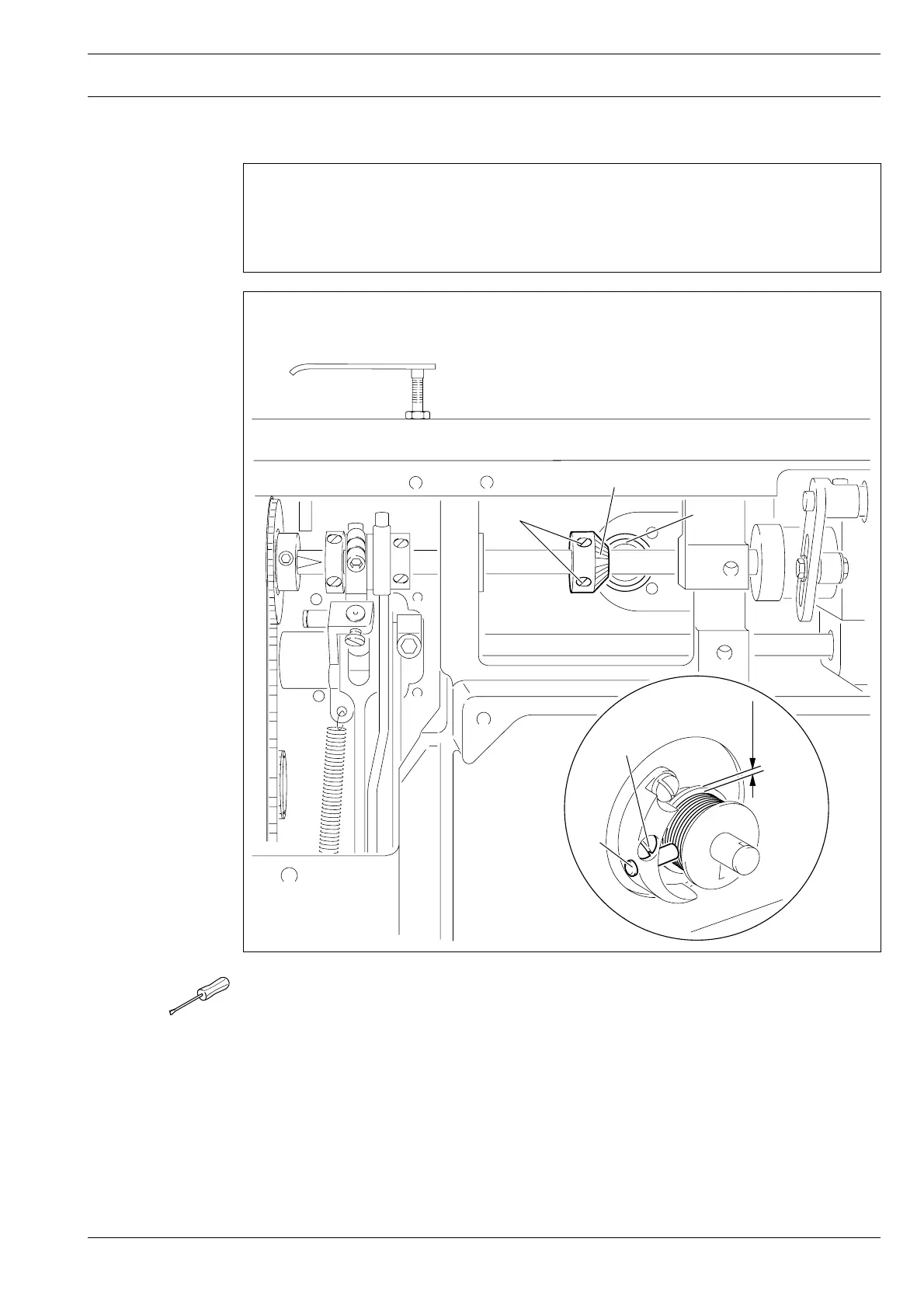

Fig. 11 - 16
2
1
5
1 mm
4
3
