Adjustment
13 - 6
13.05.05 Needle in needle-hole centre
Requirement
With the stitch length set at "0" the needle must enter exactly in the centre of the needle
hole.

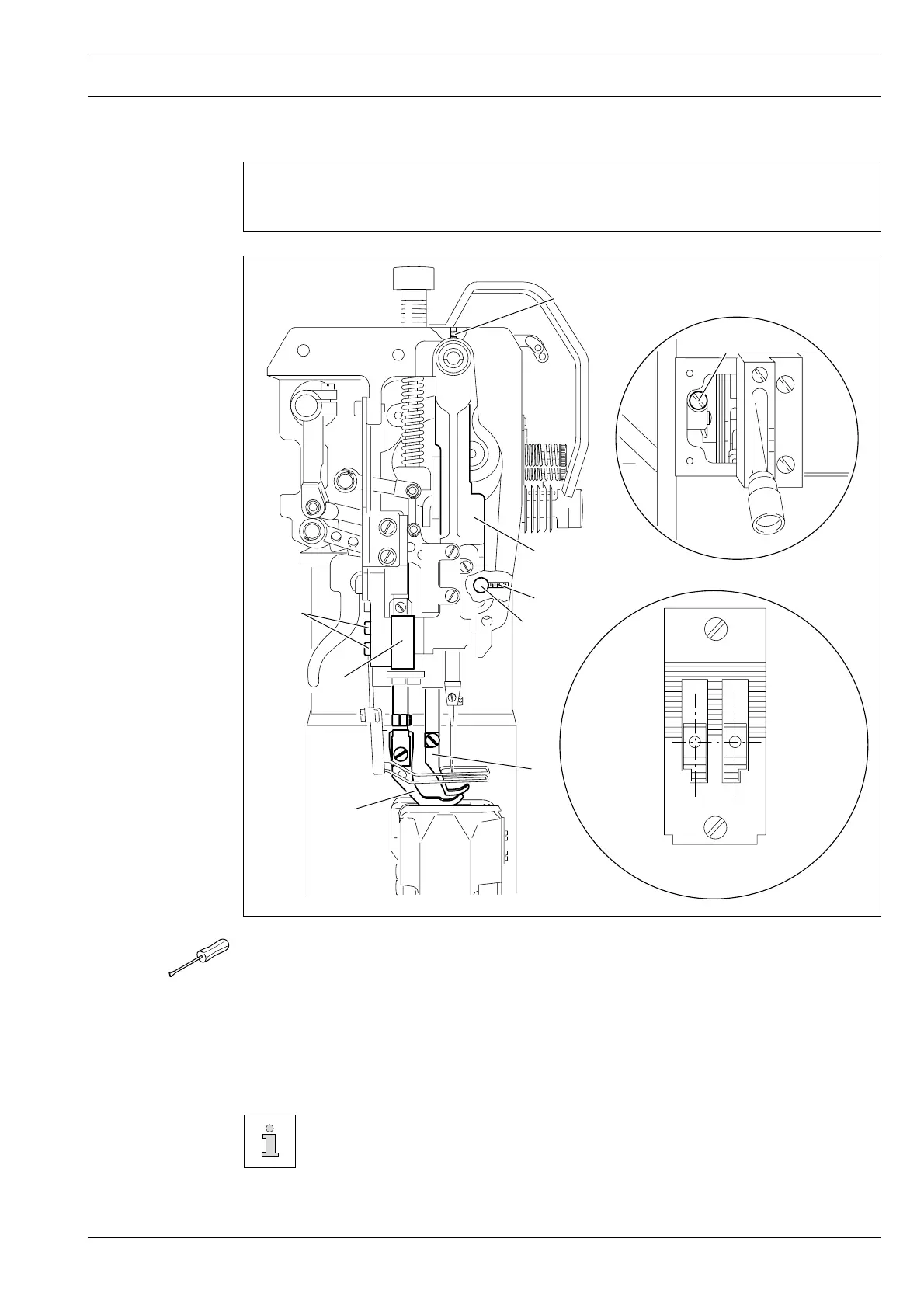

Fig. 11 - 05
● Remove vibrating presser 1 and lifting presser 2.
● Set the stitch length at "0" and set the needle bar at t.d.c.
● Insert a new needle, loosen screws 3, 4, 5 and 6.
● Turn the balance wheel to set the needle immediately above the bottom feed dog.
● Shift the position of needle bar frame 7 according to Requirement.
● Tighten screws 3, 4 and 5.
● Move stop 8 up against needle bar frame 7 and tighten screw 6.
There must be no binding of needle bar frame 7 in guide 9 nor in the top-feed
drive linkages.
4
7
6
8
1
2
9
5
3
