Adjustment
13 - 4
13.05.03 Bottom feed dog height
Requirement
With the stitch length set at "0" the feed dog must protrude from the needle plate by the
height of its teeth when at its highest position.

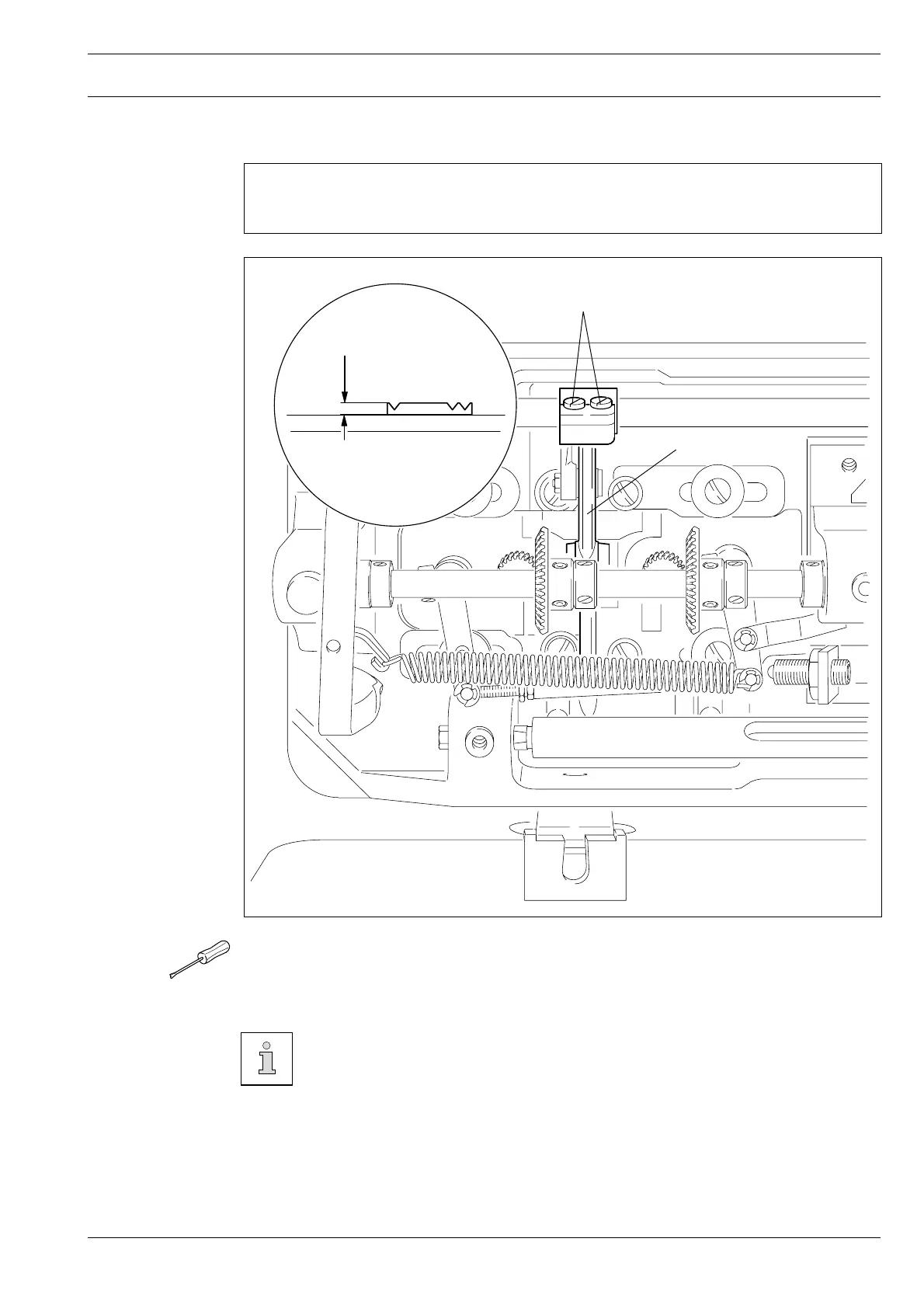

Fig. 11 - 03
● Set stitch length „0“.
● Turn the balance wheel to set the bottom feed dog at its highest position.
● Adjust bracket 1 (screws 2) according to Requirement.
On machines without bottom-feed lifting phase (without "P") the feed dog
height may be reduced somewhat if necessary.
1
2
tooth height
