Adjustment
13 - 20
13.06 Adjusting the thread trimmer -900/56
13
.06.01 Engaging solenoid
Requirement
1. Mounting bracket 1 must be in the middle of its adjusting range and parallel with the
right-hand edge of the mounting bracket.
2. When the thread trimmer is in its resting position the core of solenoid 3 must protrude
from the solenoid housing by about 4 mm.
● Re-position bracket 1 (screw 2) according to Requirement 1.
● Re-position solenoid 3 (screw 4) according to Requirement 2.

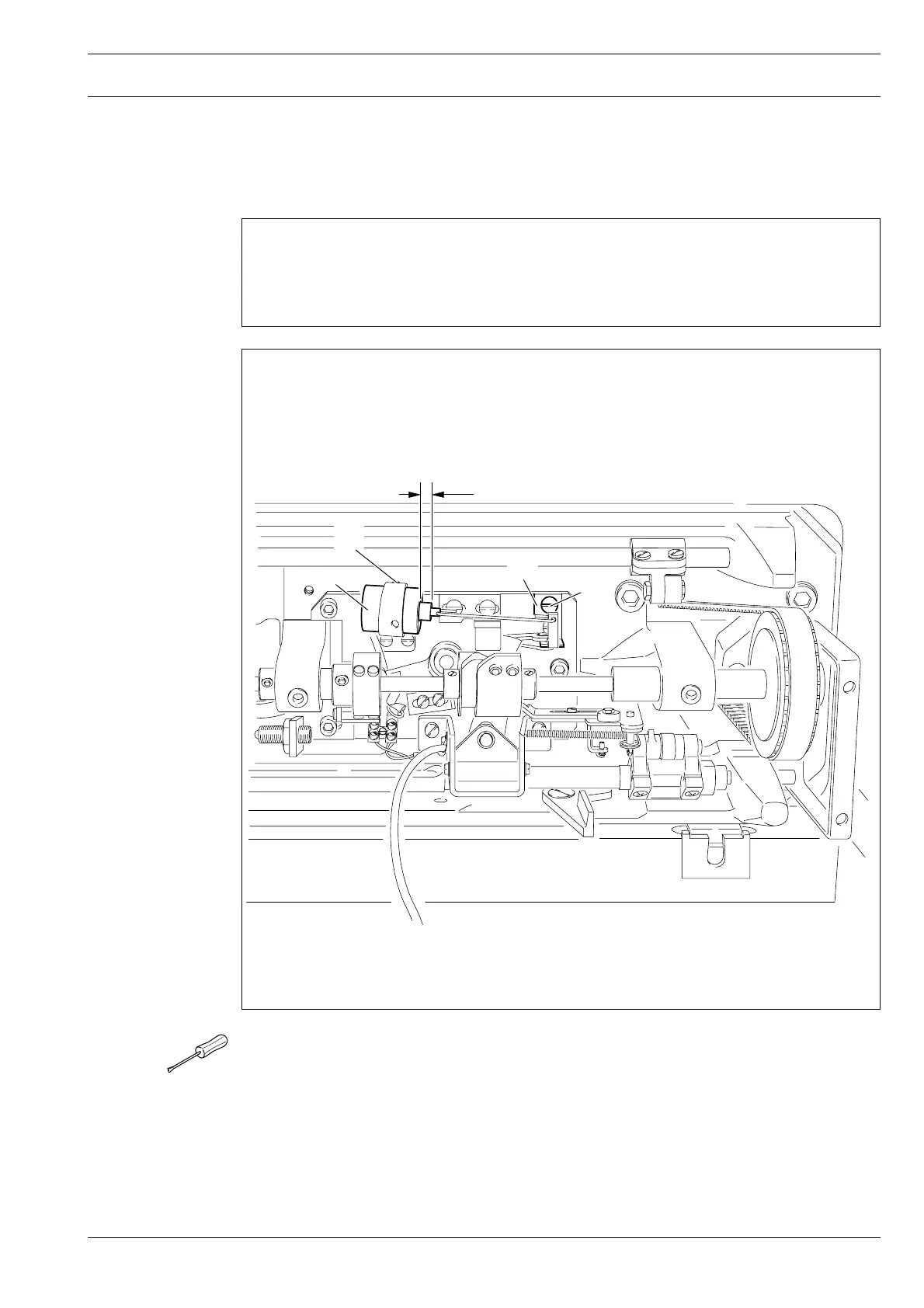

Fig. 11 - 18
4
3
1
2
4 mm
