Adjustment
13 - 27
13.06.08 Thread catcher resting position
Requirement
When the thread trimmer is in its resting poistion there must be a clearance of about 4
mm between the point of catcher 3 and the cutting edge of knife 4.
● Turn shaft 2 according to Requirement.
● Tighten screws 1.
When tightening screws 1 make sure that all transmission parts of the thread
catcher drive can move freely.

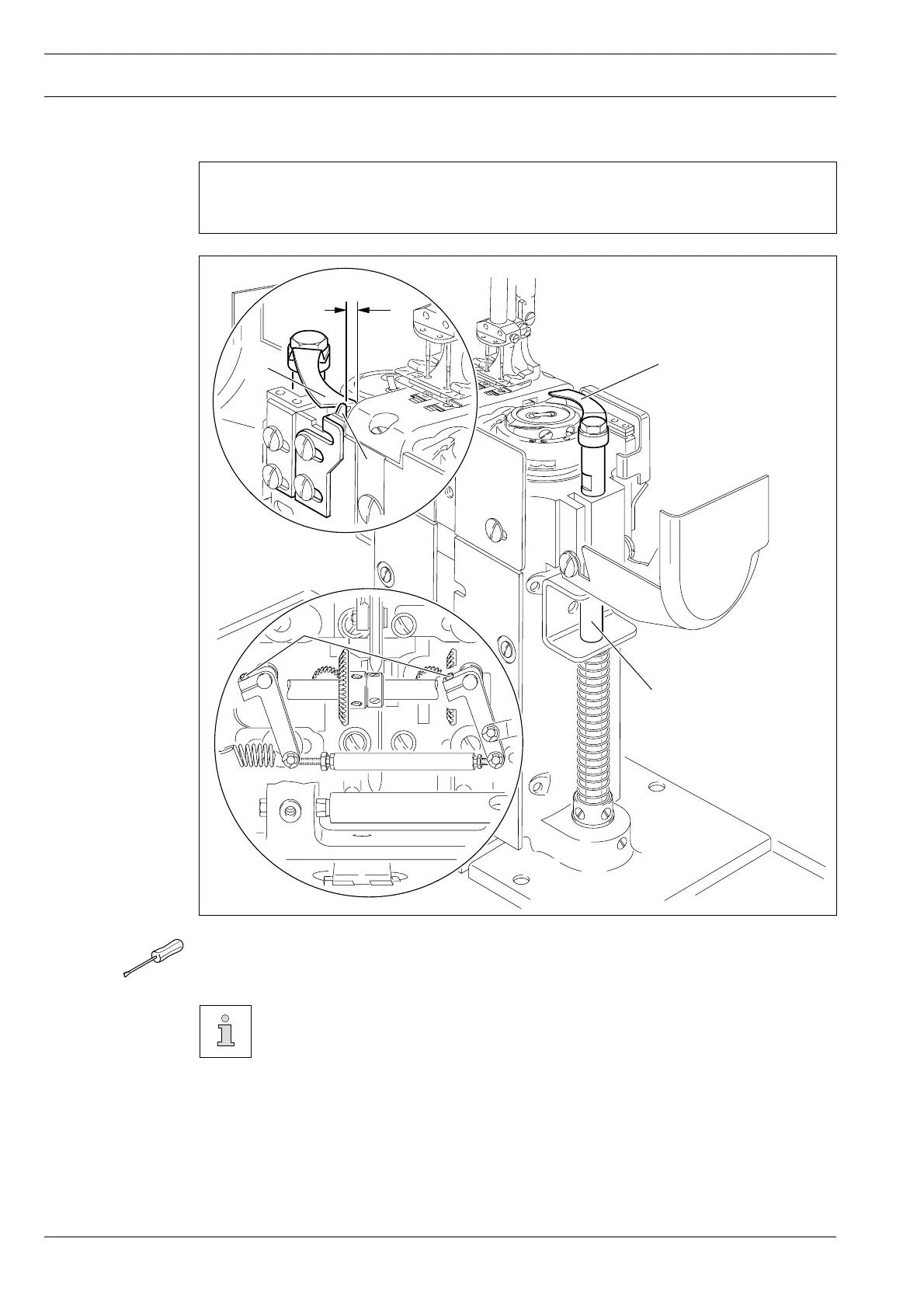

Fig. 11 - 25
1
2
4 mm
4
3
3
