Pfaff 1295

Adjustment
13 - 25
13.06.06 Linkage bar (only on the PFAFF 1296)
Requirement
The length of linkage bar 1 must be the same as the distance between the two thread-
catcher drive shafts 3.
● Adjust middle section 1 (nuts 2) of the linkage bar according to Requirement.

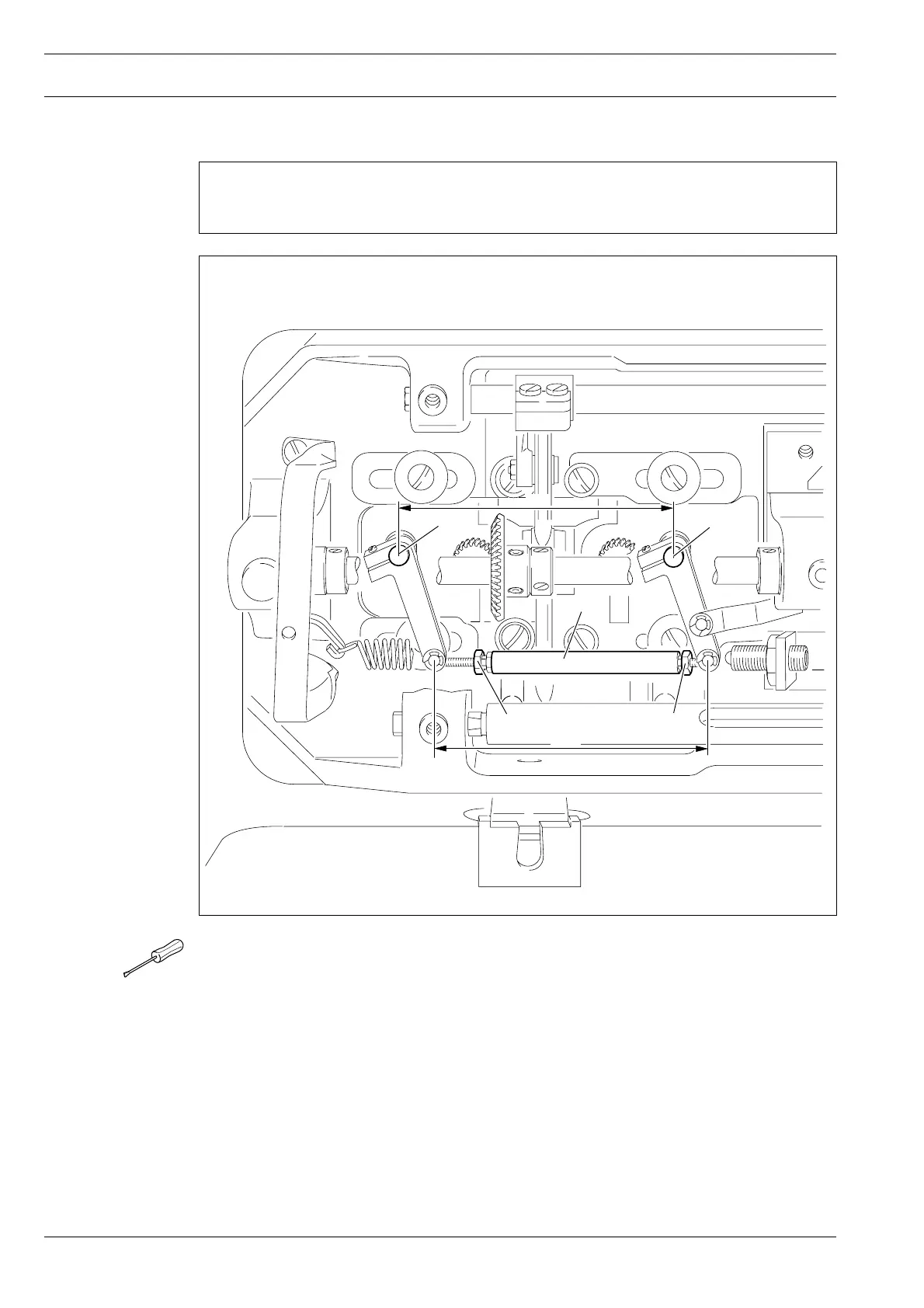

Fig. 11 - 23
2
1
2
3
3
=
=
