Adjustment
13 - 22
13
.06.03

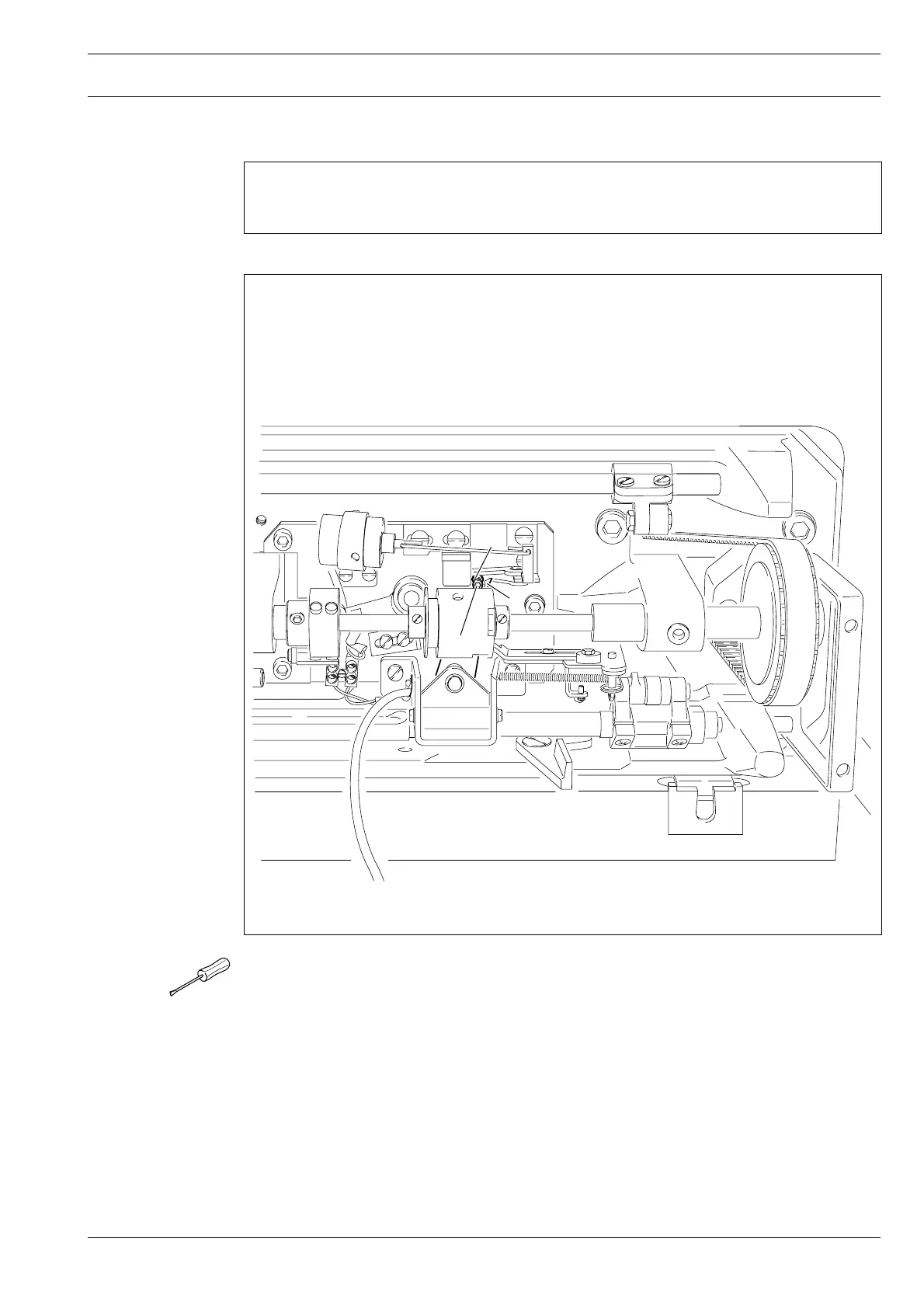

Control lever spring action
Requirement
When the thread trimmer is in its resting position, it must be possible to press control lev
er
3
about
1 mm
towards the bedplate (spring action).
●
Turn screw
1
(nut
2
) according to
Requirement.
Fig. 11 - 20
2
1
3
24
26
Table of Contents
Table of Contents
3
Adjustment
4
Notes on Adjustment
4
Tools, Gauges and Other Equipment
4
Abbreviations
4
Explanation of the Symbols
4
Adjusting the Basic Machine
5
Position of the Bottom Feed Dog Crosswise to Sewing Direction
5
Adjusting the Bottom Feed Dog in Sewing Direction
6
Bottom Feed Dog Height
7
Needle Height (Preliminary Adjustment)
8
Needle in Needle-Hole Centre
9
Bottom Feed Dog Lifting Motion
10
Feeding Stroke of Bottom and Top Feeds
11
Hook Clearance, Needle Rise, Needle Height and Needle Guard
12
Top Feed Stroke
14
Top Feed Lifting Motion
15
Bobbin Case Opener
16
Slip Coupling
17
Needle-Thread Tension Release
18
Thread Check Spring, Without Subclass -900/56
19
Thread Check Spring on the PFAFF 1296 with Subclass -900/56
20
Bobbin Winder
21
Pressure of the Lifting Presser
22
Adjusting the Thread Trimmer -900/56
23
Engaging Solenoid
23
Control Cam (Preliminary Adjustment)
24
Control Lever Spring Action
25
Control Lever Stroke
26
Thread-Trimmer Drive Linkage
27
Linkage Bar (Only on the PFAFF 1296)
28
Thread Catcher Height
29
Thread Catcher Resting Position
30
Knife Pressure
31
Bobbin Thread Trapping Spring
32
Control Cam (Final Adjustment)
33
Release Lever
34
Release Rod
35
Parameter Settings
36
Parameter List
36
Circuit Diagrams
38
Circuit Diagram
40
